Genuine VN Kawasaki Parts delivered quickly!


AIR CLEANER

VN1600A7F VULCAN 1600 CLASSIC 2007 USA CALIFORNIA CANADA

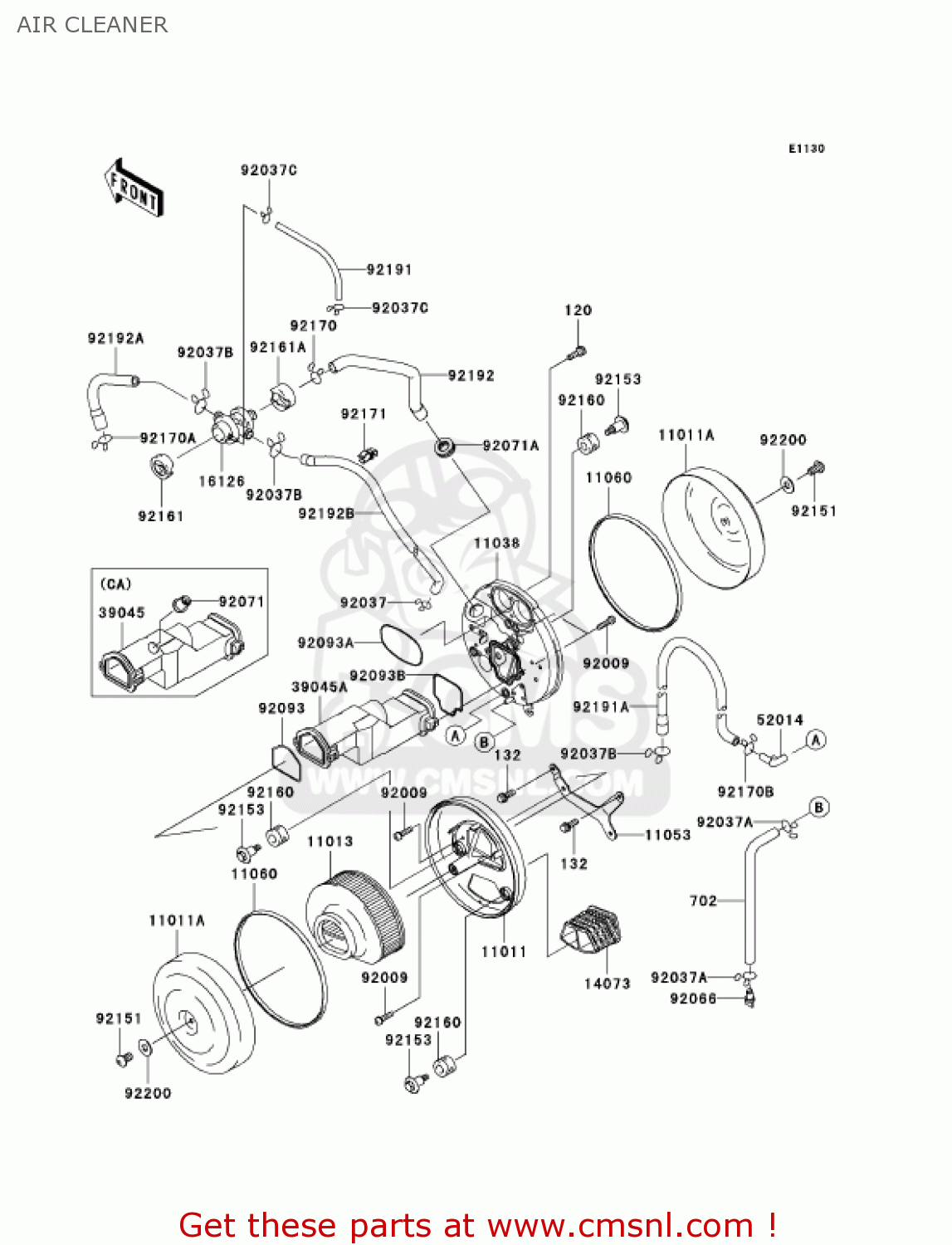

Air cleaner diagram VN1600A7F VULCAN 1600 CLASSIC 2007 USA CALIFORNIA CANADA

AIR CLEANER VN1600A7F VULCAN 1600 CLASSIC 2007 USA CALIFORNIA CANADA
AIR CLEANER VN1600A7F VULCAN 1600 CLASSIC 2007 USA CALIFORNIA CANADA
AIR CLEANER VN1600A7F VULCAN 1600 CLASSIC 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11011
110111672
ref: 11011
CASE-AIR FILTER,LH
110111672
€ 65.50
11011A
110111673
ref: 11011A
CASE-AIR FILTER,COVER
110111673
€ 73.50
11013
110131305
ref: 11013
ELEMENT-AIR FILTER
110131305
€ 44.50
11038
110380005
ref: 11038
CASE-ASSY-AIR FILTER,
€ 65.00
11053
110531208
ref: 11053
BRACKET,AIR FILTER,LH
€ 12.50
11060
110601968
ref: 11060
GASKET,AIR FILTER CAS (NAS)
110601968
€ 12.50
14073
140731863
ref: 14073
DUCT,INTAKE
€ 20.50
16126
161260005
ref: 16126
VALVE,AIR SWITCH
161260005
€ 166.00
39045
390450001
ref: 39045
[CA]
DUCT-ASSY,JOINT
€ 76.50
39045A
390450003
ref: 39045A
[CN,US
DUCT-ASSY,CENTER
€ 110.00
52014
520141083
ref: 52014
ELBOW
520141083
€ 5.50
92009
920091905
ref: 92009
SCREW
920091905
€ 1.50
92037
920371468
ref: 92037
CLAMP
€ 4.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371593
ref: 92037B
CLAMP
920371593
€ 5.00
92037C
920371712
ref: 92037C
CLAMP
920371712
€ 3.00
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92071
920710003
ref: 92071
[CA]
GROMMET
€ 13.50
92071A
920711028
ref: 92071A
GROMMET AIR FILTER
€ 4.50
92093
920931459
ref: 92093
SEAL,DUCT,LH
920931459
€ 4.50
92093A
920931485
ref: 92093A
SEAL
920931485
€ 4.00
92093B
920931491
ref: 92093B
SEAL,DUCT,RH
920931491
€ 4.00
92151
921511438
ref: 92151
BOLT,8X14
921511438
€ 1.50
92153
921530498
ref: 92153
BOLT
€ 10.00
92160
921601594
ref: 92160
DAMPER
921601594
€ 3.00
92161
921610044
ref: 92161
DAMPER,OUTSIDE
€ 4.00
92161A
921610045
ref: 92161A
DAMPER,INSIDE
921610045
€ 4.00
92170
921701017
ref: 92170
CLAMP
921701017
€ 3.00
92170A
921701445
ref: 92170A
CLAMP,TUBE
921701445
€ 3.00
92170B
921701695
ref: 92170B
CLAMP
921701695
€ 1.50
92171
921710131
ref: 92171
CLAMP
€ 3.00
92191
921910033
ref: 92191
TUBE,4X9X230
€ 4.50
92191A
921911406
ref: 92191A
TUBE,BREATHER
921911406
€ 17.00
92192
921920011
ref: 92192
TUBE,AIR SWITCH-FILTE
€ 15.00
92192A
921920025
ref: 92192A
TUBE,FR HEAD-AIR SWIT
€ 7.00
92192B
921920026
ref: 92192B
TUBE,AIR SWITCH-RR HE
€ 16.00
120
120S0616
ref: 120
BOLT-SOCKET,6X16
120S0616
€ 1.00
132
132J0616
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
702
702A07230
ref: 702
TUBE-RUBBER
€ 9.50
92200
922001463
ref: 92200
WASHER,8.5X20X1.6
922001463
€ 1.50
