FRONT MASTER CYLINDER

VN1600A6F VULCAN 1600 CLASSIC 2006 USA CALIFORNIA CANADA

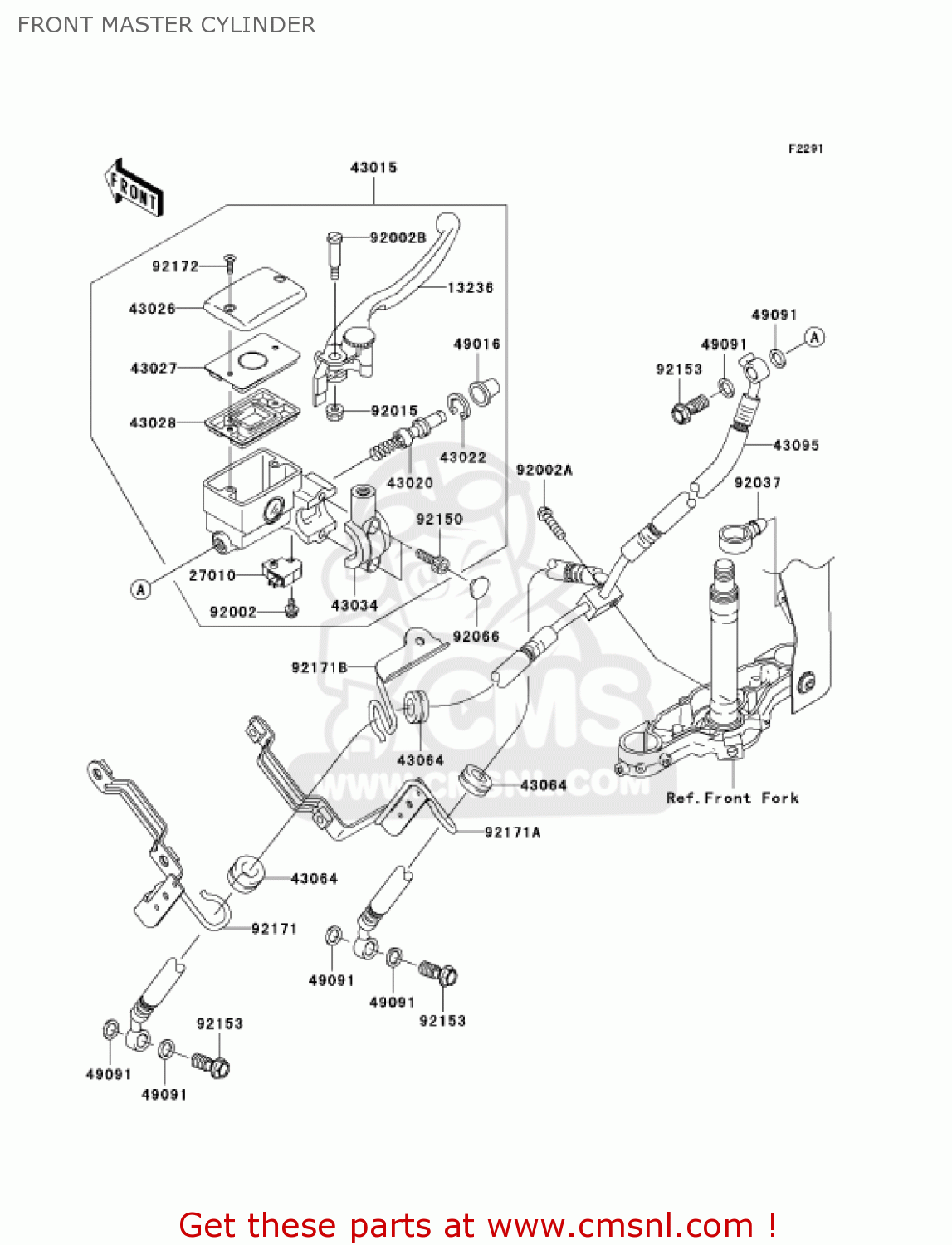

Front master cylinder diagram VN1600A6F VULCAN 1600 CLASSIC 2006 USA CALIFORNIA CANADA

FRONT MASTER CYLINDER VN1600A6F VULCAN 1600 CLASSIC 2006 USA CALIFORNIA CANADA
FRONT MASTER CYLINDER VN1600A6F VULCAN 1600 CLASSIC 2006 USA CALIFORNIA CANADA
FRONT MASTER CYLINDER VN1600A6F VULCAN 1600 CLASSIC 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13236
132361315
ref: 13236
LEVER-COMP,FRONT BRAK
132361315
€ 33.50
27010
270100025
ref: 27010
SWITCH,BRAKE
270100025
€ 26.00
43015
430150025
ref: 43015
CYLINDER-ASSY-MASTER,
€ 362.00
43020
430201054
ref: 43020
PISTON-COMP-BRAKE,FR
430201054
€ 47.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
430221010
€ 3.00
43026
430260003
ref: 43026
CAP-BRAKE
430260003
€ 48.00
43027
430271059
ref: 43027
PLATE-DIAPHRAGM
430271059
€ 6.00
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
430281058
€ 15.50
43034
430341172
ref: 43034
HOLDER-BRAKE
430341172
€ 32.00
43064
43064006
ref: 43064
GROMMET,BRAKE HOSE
43064006
€ 2.50
43095
430950188
ref: 43095
HOSE-BRAKE,FR
€ 139.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
49091
490910001
ref: 49091
WASHER-SEAL,10.1X14.5
490910001
€ 1.50
92002
920021323
ref: 92002
BOLT
920021323
€ 2.50
92002A
920021344
ref: 92002A
BOLT,6X25
920021344
€ 1.50
92002B
920021561
ref: 92002B
BOLT,LEVER SET
920021561
€ 8.00
92015
920151528
ref: 92015
NUT,FLANGED,6MM
920151528
€ 3.50
92037
920371827
ref: 92037
CLAMP,HOSE
920371827
€ 5.00
92066
920661301
ref: 92066
PLUG
920661301
€ 4.00
92150
921501025
ref: 92150
BOLT,SOCKET,6MM
921501025
€ 4.50
92153
921530627
ref: 92153
BOLT,OIL,L=23
921530627
€ 3.50
92171
921710115
ref: 92171
CLAMP,BRAKE HOSE,LH
€ 15.00
92171A
921710468
ref: 92171A
CLAMP,BRAKE HOSE,RH
€ 17.50
92171B
921710523
ref: 92171B
CLAMP,BRAKE HOSE,UPP,
€ 17.50
92172
921720083
ref: 92172
SCREW
921720083
€ 3.00
