CRANKCASE

VN1600A6F VULCAN 1600 CLASSIC 2006 USA CALIFORNIA CANADA

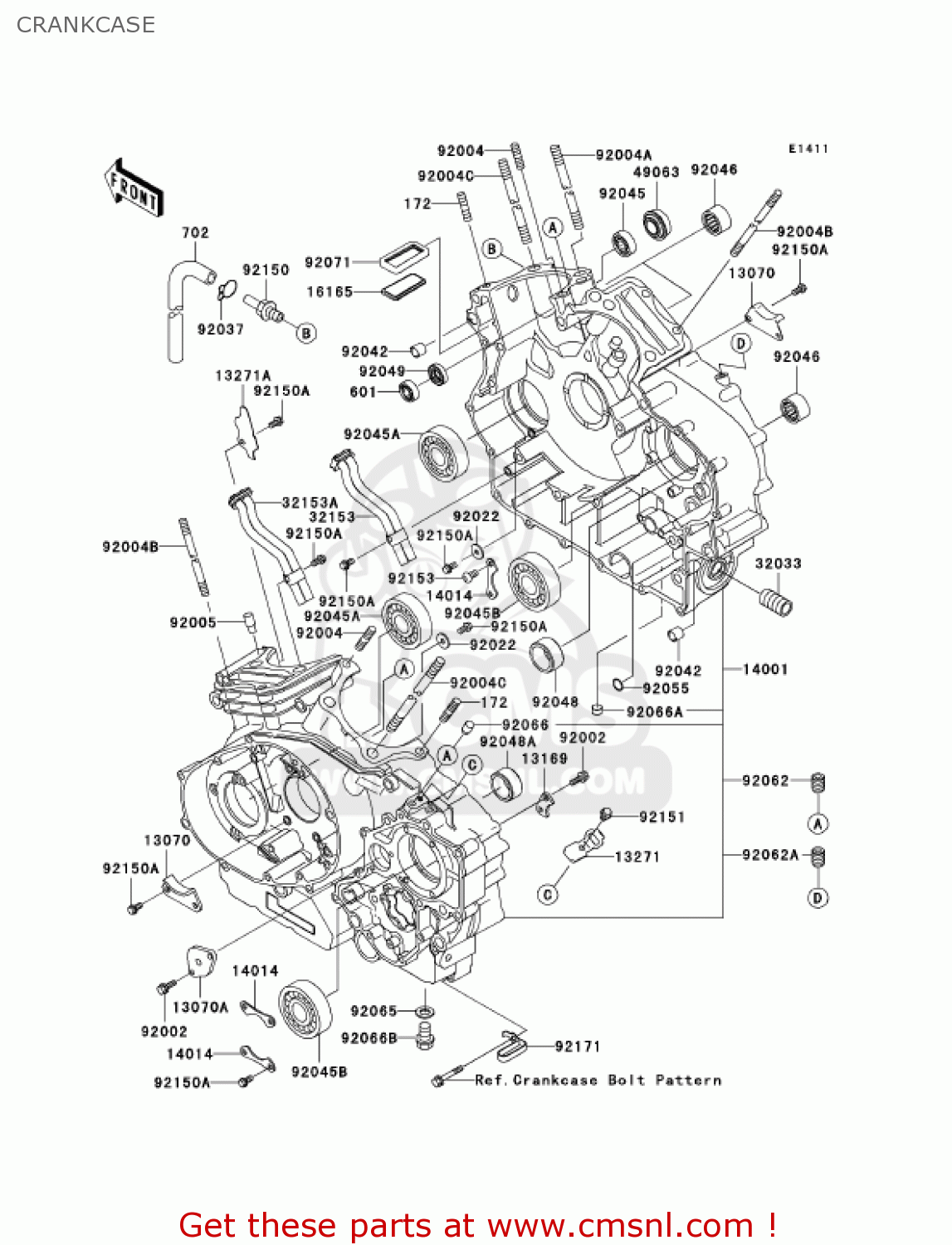

Crankcase diagram VN1600A6F VULCAN 1600 CLASSIC 2006 USA CALIFORNIA CANADA

CRANKCASE VN1600A6F VULCAN 1600 CLASSIC 2006 USA CALIFORNIA CANADA
CRANKCASE VN1600A6F VULCAN 1600 CLASSIC 2006 USA CALIFORNIA CANADA
CRANKCASE VN1600A6F VULCAN 1600 CLASSIC 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13070
130701168
ref: 13070
GUIDE,CAM CHAIN
130701168
€ 3.50
13070A
130701372
ref: 13070A
GUIDE
€ 17.50
13169
13169014
ref: 13169
PLATE,GEAR CHANGE DRU
13169014
€ 3.00
13271
132710210
ref: 13271
PLATE
€ 3.50
13271A
132711727
ref: 13271A
PLATE
€ 3.50
14001
140015394
ref: 14001
SET-CRANKCASE
€ 2,860.50
14014
140141084
ref: 14014
PLATE-POSITION
140141084
€ 4.00
16165
161651058
ref: 16165
SEPARATOR
161651058
€ 18.00
32033
320331535
ref: 32033
PIPE
320331535
€ 9.00
32153
321531262
ref: 32153
PIPE
€ 29.50
32153A
321531263
ref: 32153A
PIPE,LH CRANKCASE
€ 31.00
49063
490631057
ref: 49063
SEAL-MECHANICAL
490631057
€ 32.50
92002
920021439
ref: 92002
BOLT,6X16
920021439
€ 3.00
92004
920040011
ref: 92004
STUD,8X25
€ 4.00
92004A
920040017
ref: 92004A
STUD,12X250.12X24
920040017
€ 21.50
92004B
920041174
ref: 92004B
STUD,8X231
€ 8.50
92004C
920041225
ref: 92004C
STUD,12X250
920041225
€ 21.50
92005
920051155
ref: 92005
FITTING
€ 5.50
92022
920221517
ref: 92022
WASHER,6X19.5X2
920221517
€ 1.50
92037
920371835
ref: 92037
CLAMP
€ 3.00
92042
92042028
ref: 92042
PIN-DOWEL
92042028
€ 1.00
92045
920451151
ref: 92045
BEARING-BALL,6001JRXL
920451151
€ 26.00
92045A
920451189
ref: 92045A
BEARING-BALL,63/28
€ 50.50
92045B
920451190
ref: 92045B
BEARING-BALL,6306SH2
920451190
€ 44.50
92046
920461292
ref: 92046
BEARING-NEEDLE,HK1212
920461292
€ 17.00
92048
920481103
ref: 92048
RACE
920481103
€ 23.00
92048A
920481113
ref: 92048A
RACE
€ 29.50
92049
920491228
ref: 92049
SEAL-OIL,AC037AE0
920491228
€ 7.00
92055
920551373
ref: 92055
RING-O,13.2X2.4
920551373
€ 3.00
92062
920621078
ref: 92062
NOZZLE
920621078
€ 3.00
92062A
920621089
ref: 92062A
NOZZLE
€ 5.00
92065
92065097
ref: 92065
GASKET,DRAIN PLUG BOL (NAS)
92065097
€ 1.00
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
920661012
€ 4.00
92066A
920661110
ref: 92066A
PLUG
920661110
€ 4.00
92066B
920661174
ref: 92066B
PLUG,OIL DRAIN,12X15
920661174
€ 4.00
92071
920711269
ref: 92071
GROMMET,SEPARATOR
€ 5.50
92150
921501161
ref: 92150
BOLT
921501161
€ 6.00
92150A
921501868
ref: 92150A
BOLT,6X12
921501868
€ 2.00
92151
921511416
ref: 92151
BOLT,6X8
€ 1.50
92153
921530344
ref: 92153
BOLT,6X12
€ 1.50
172
172G0825
ref: 172
STUD,8X25
€ 3.50
601
601A6001
ref: 601
BEARING-BALL
601A6001
€ 9.00
702
702A04330
ref: 702
TUBE-RUBBER,4X330
702A04330
€ 7.50
92171
921711273
ref: 92171
CLAMP
€ 5.00
