SUSPENSION/SHOCK ABSORBER

VN1500R3 VULCAN 1500 DRIFTER 2003 USA CALIFORNIA CANADA

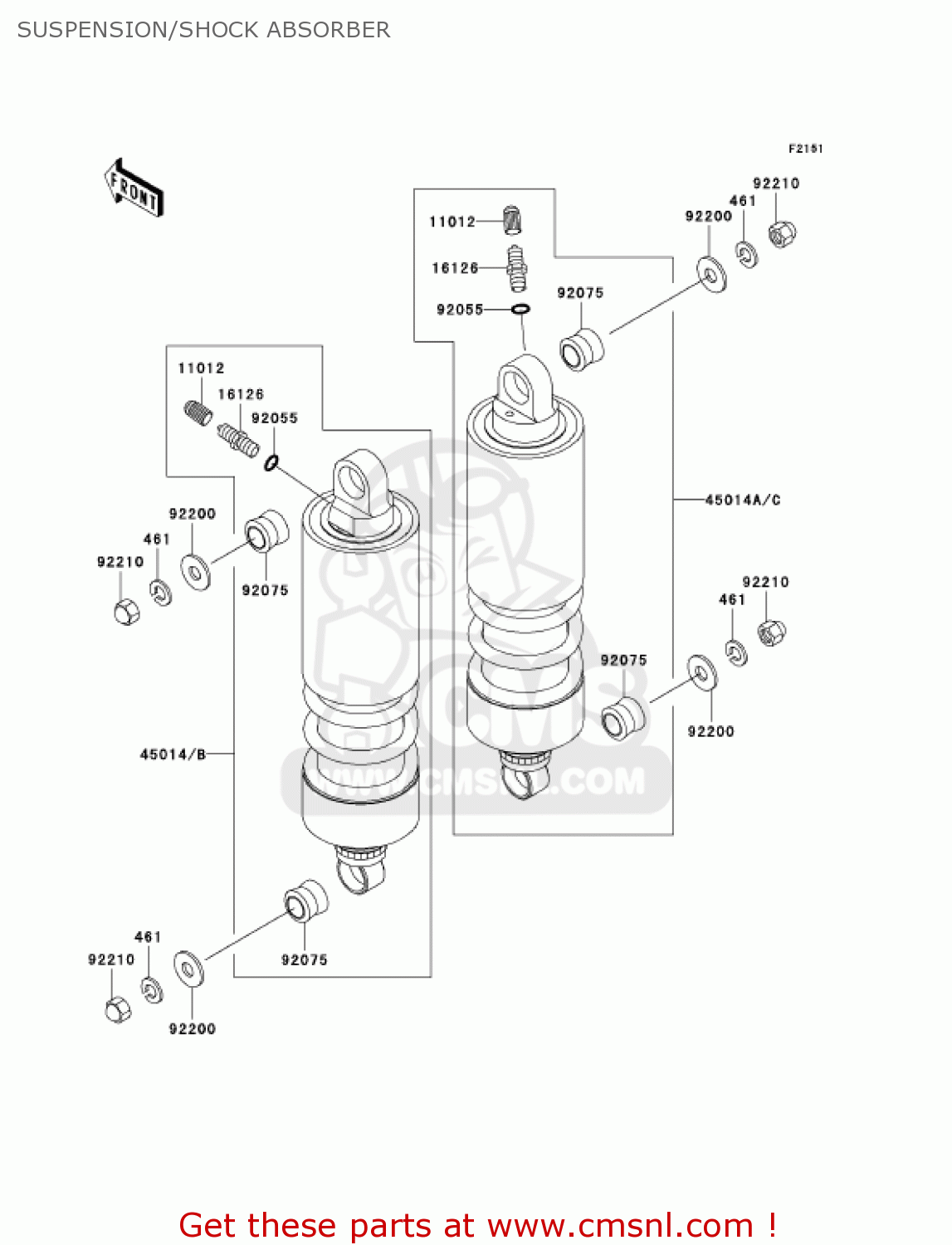

Suspension/shock absorber diagram VN1500R3 VULCAN 1500 DRIFTER 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

461

461S1000
ref: 461

WASHER-SPRING,10MM

€ 0.50

11012

110121283
ref: 11012

CAP

€ 5.50

16126

161261105
ref: 16126

VALVE,AIR

€ 24.50

45014B

450141793
ref: 45014B

SHOCKABSORBER,LH

€ 554.00

45014C

450141794
ref: 45014C

SHOCKABSORBER,RH

€ 554.00

92055

920551130
ref: 92055

RING-O

€ 1.50

92075

920751387
ref: 92075

920751387

92200

922001565
ref: 92200

WASHER,10.5X26X2.5

€ 1.50

92210

922101288
ref: 92210

NUT,CAP,10MM

€ 3.50
