FUEL PUMP

VN1500R3 VULCAN 1500 DRIFTER 2003 USA CALIFORNIA CANADA

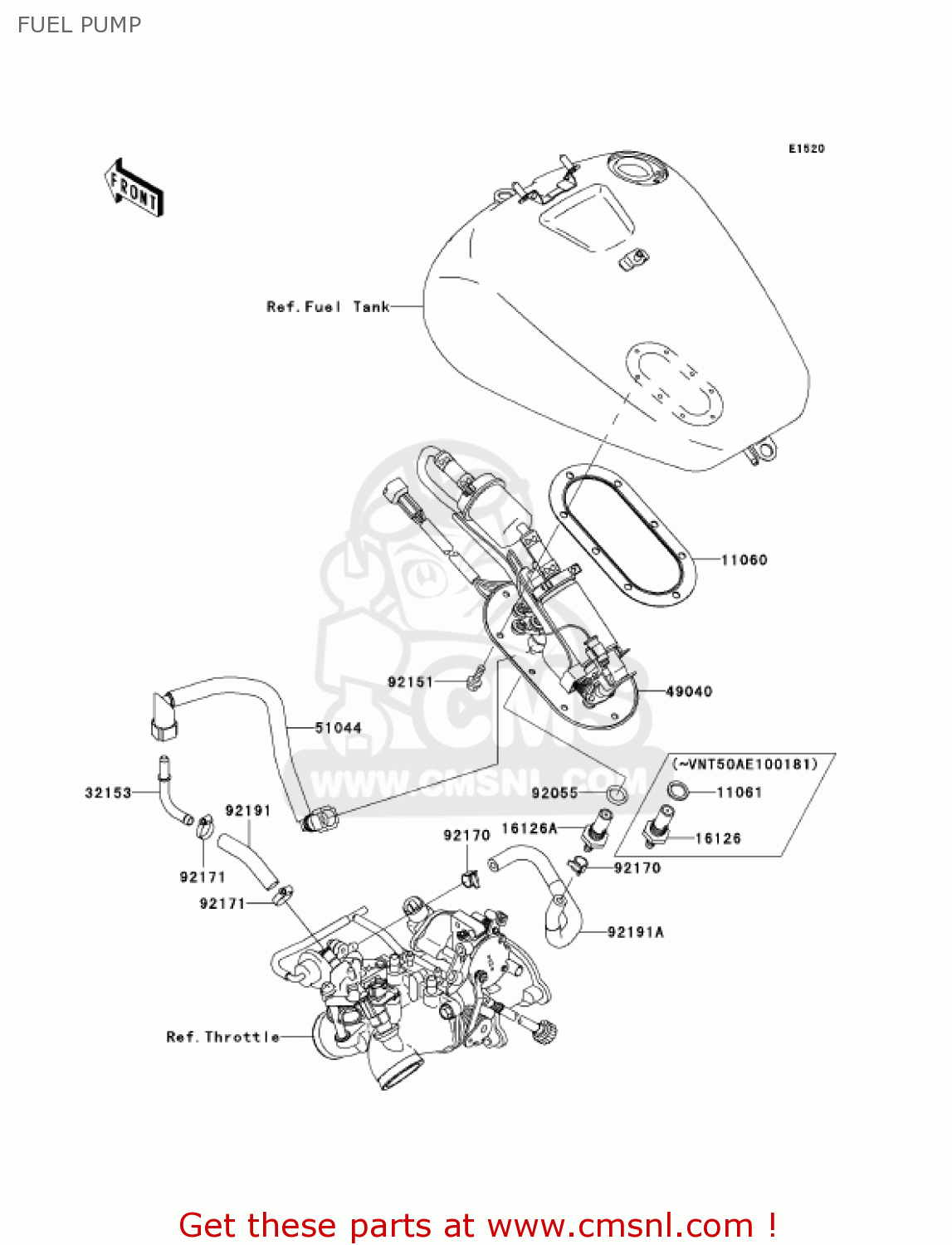

Fuel pump diagram VN1500R3 VULCAN 1500 DRIFTER 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11060

110601929
ref: 11060

GASKET,FUEL PUMP (NAS)

€ 37.50

16126A

161261418
ref: 16126A
( VNT50AE100182 - )

VALVE

€ 92.00

32153

321531414
ref: 32153

PIPE

€ 10.50

49040

490401071
ref: 49040

PUMP-FUEL

€ 845.50

51044

510440010
ref: 51044

TUBE-ASSY

€ 125.50

92055

920551667
ref: 92055
( VNT50AE100182 - )

RING-O,17.8X1.9

€ 3.00

92151

921511599
ref: 92151

BOLT,FLANGED,5X12

€ 1.50

92170

921701492
ref: 92170

CLAMP

€ 3.00

92171

921711274
ref: 92171

CLAMP

€ 6.50

92191

921911536
ref: 92191

TUBE

€ 9.50

92191A

921911557
ref: 92191A

TUBE

€ 20.00
