FRAME FITTINGS

VN1500R3 VULCAN 1500 DRIFTER 2003 USA CALIFORNIA CANADA

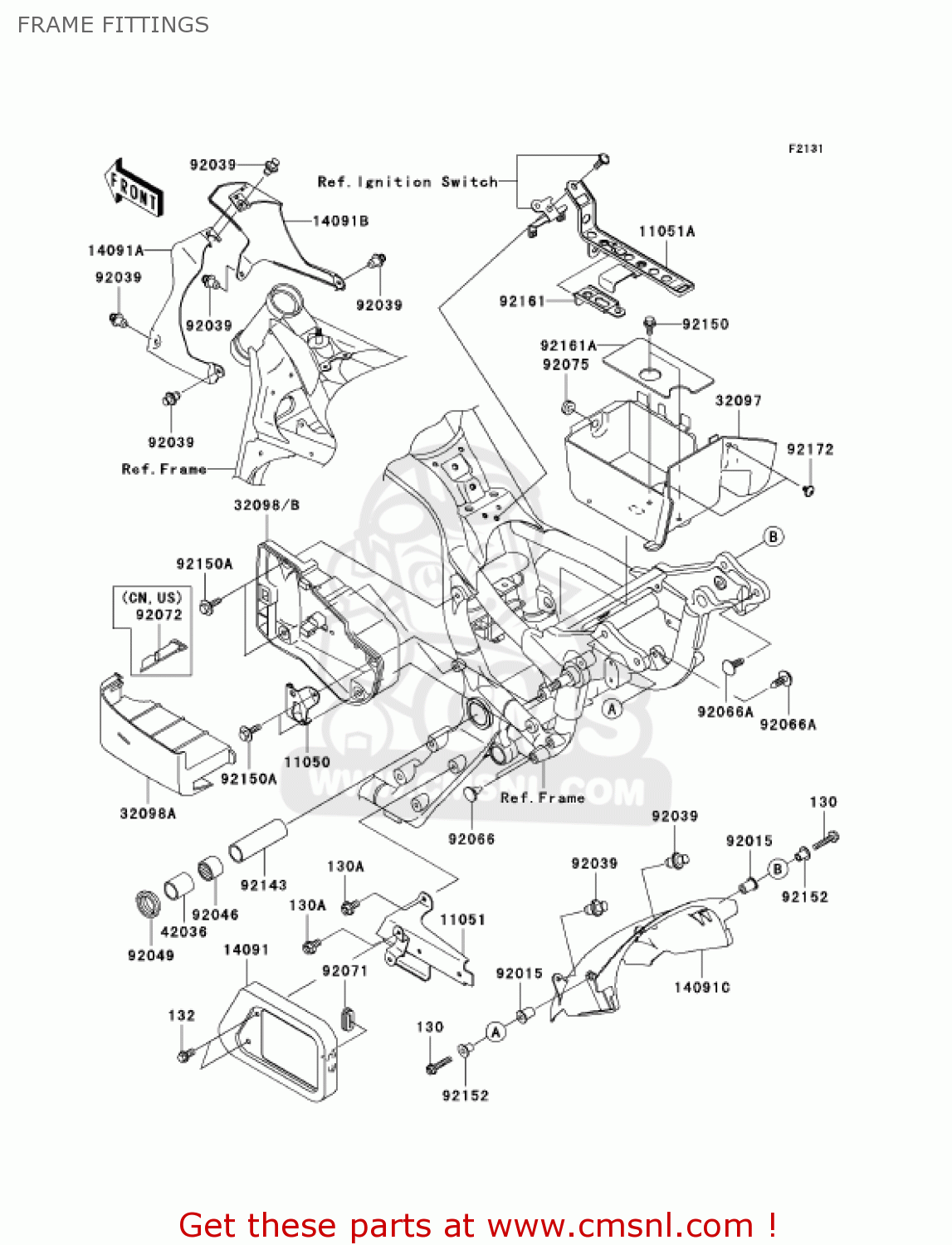

Frame fittings diagram VN1500R3 VULCAN 1500 DRIFTER 2003 USA CALIFORNIA CANADA

FRAME FITTINGS VN1500R3 VULCAN 1500 DRIFTER 2003 USA CALIFORNIA CANADA
FRAME FITTINGS VN1500R3 VULCAN 1500 DRIFTER 2003 USA CALIFORNIA CANADA
FRAME FITTINGS VN1500R3 VULCAN 1500 DRIFTER 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0525
ref: 130
BOLT-FLANGED
130J0525
€ 2.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
11050
110501958
ref: 11050
BRACKET,SIDE COVER LO
€ 15.00
11051
110511163
ref: 11051
BRACKET,REGULATOR
€ 45.50
11051A
110511798
ref: 11051A
BRACKET,BATTERY BAND
110511798
€ 20.50
14091
140911079
ref: 14091
COVER,REGULATOR
€ 34.00
14091A
140911285
ref: 14091A
COVER,HEAD PIPE,LH
€ 90.00
14091B
140911286
ref: 14091B
COVER,HEAD PIPE,RH
€ 87.00
14091C
140911354
ref: 14091C
COVER,SEAT UNDER
€ 82.00
32097
320971175
ref: 32097
CASE-BATTERY
€ 27.00
32098
320981125
ref: 32098
[CN,US
CASE-TOOL
€ 112.00
32098A
320981126
ref: 32098A
CASE-TOOL,COVER
€ 97.50
32098B
320981127
ref: 32098B
[CA]
TOOLCASE
€ 74.50
42036
420361330
ref: 42036
SLEEVE,L=45
420361330
€ 19.50
92015
920151757A
ref: 92015
NUT,5MM
920151757A
€ 5.00
92039
920391227
ref: 92039
RIVET
920391227
€ 1.00
92046
920461202
ref: 92046
BEARING-NEEDLE,BM2824
920461202
€ 25.00
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92066
920661103
ref: 92066
PLUG
920661103
€ 2.50
92066A
920661553
ref: 92066A
PLUG
€ 12.50
92071
920710013
ref: 92071
GROMMET
920710013
€ 3.50
92072
920721331
ref: 92072
[CN,US
BAND,L=470
920721331
€ 16.50
92075
920751067
ref: 92075
DAMPER,SIDE COVER
920751067
€ 3.00
92143
921431878
ref: 92143
COLLAR,20.2X27X90
921431878
€ 22.50
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
92150A
921501198
ref: 92150A
BOLT
921501198
€ 2.50
92152
921521304
ref: 92152
COLLAR
€ 4.00
92161
921611096
ref: 92161
DAMPER,BATTERY BAND
€ 7.00
92161A
921611097
ref: 92161A
DAMPER,BATTERY
921611097
€ 3.50
92172
921720005
ref: 92172
SCREW,6X10
921720005
€ 1.50
