TAILLIGHT(S)

VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA

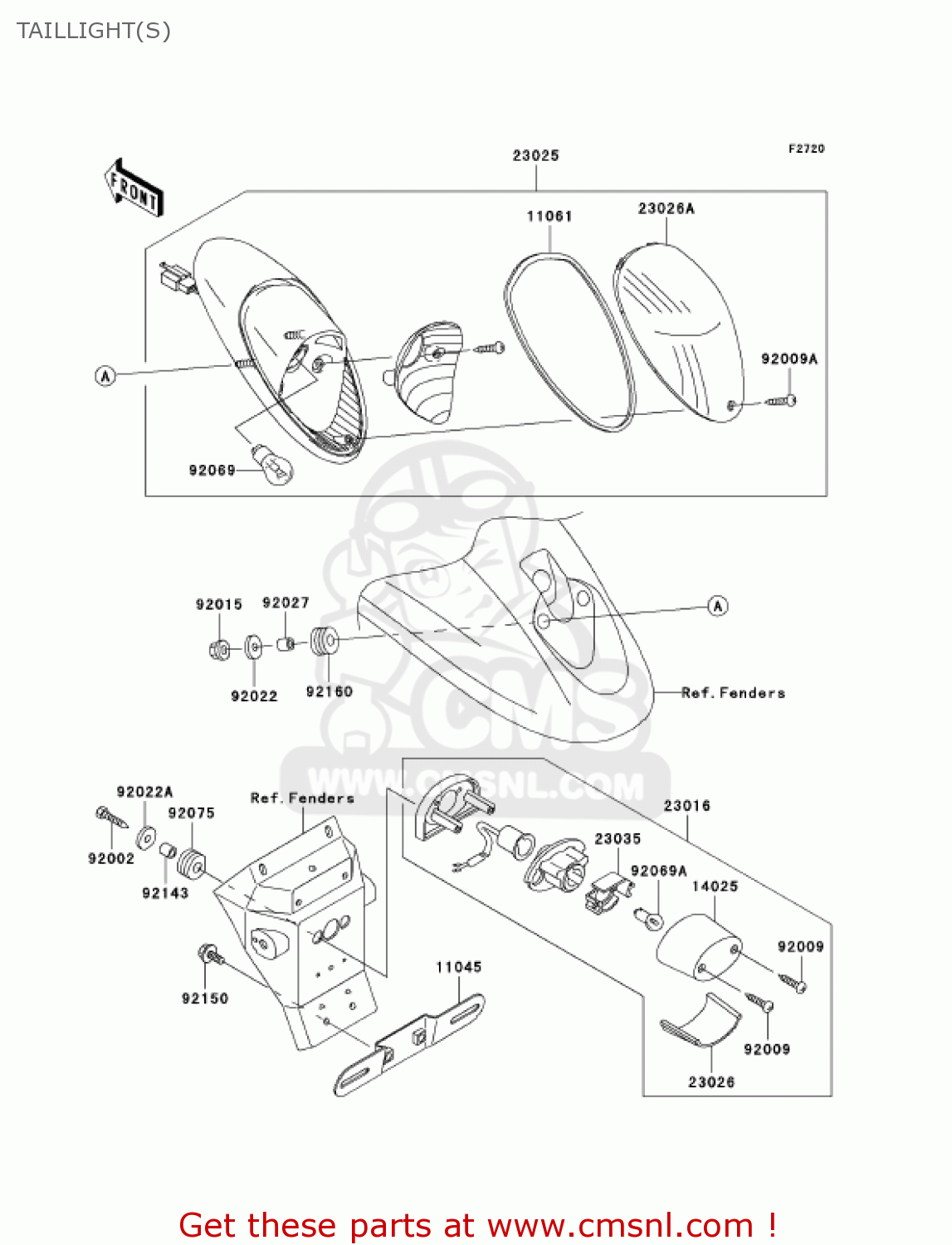

Taillight(s) diagram VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA

TAILLIGHT(S) VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA
TAILLIGHT(S) VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA
TAILLIGHT(S) VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11045
110451387
ref: 11045
BRACKET,LICENSE
110451387
€ 11.00
11061
110611089
ref: 11061
GASKET,TAIL LAMP LENS (NAS)
110611089
€ 5.50
14025
140251725
ref: 14025
COVER,LICENSE LAMP
140251725
€ 12.50
23016
230161193
ref: 23016
LAMP-ASSY,LICENSE
€ 58.00
23025
230251317
ref: 23025
LAMP-TAIL
€ 256.00
23026
230261064
ref: 23026
LENS,LICENSE LAMP
230261064
€ 24.00
23026A
230261246
ref: 23026A
LENS,TAIL LAMP
€ 48.00
23035
230351060
ref: 23035
REFLECTOR-LAMP,LICENS
€ 13.00
92002
920021831
ref: 92002
BOLT
920021831
€ 0.50
92009
920091378
ref: 92009
SCREW,TAPPING,4X20
920091378
€ 2.50
92009A
920091966
ref: 92009A
SCREW,TAPPING,4X16
920091966
€ 1.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
920221557
€ 1.00
92022A
920221581
ref: 92022A
WASHER,5.5X20X1.2
920221581
€ 1.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
920691055
€ 4.00
92075
920751870
ref: 92075
DAMPER
920751870
€ 3.00
92143
921431047
ref: 92143
COLLAR,5.8X9X10.5
921431047
€ 3.50
92150
921501909
ref: 92150
BOLT
921501909
€ 3.00
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
