SEAT

VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA

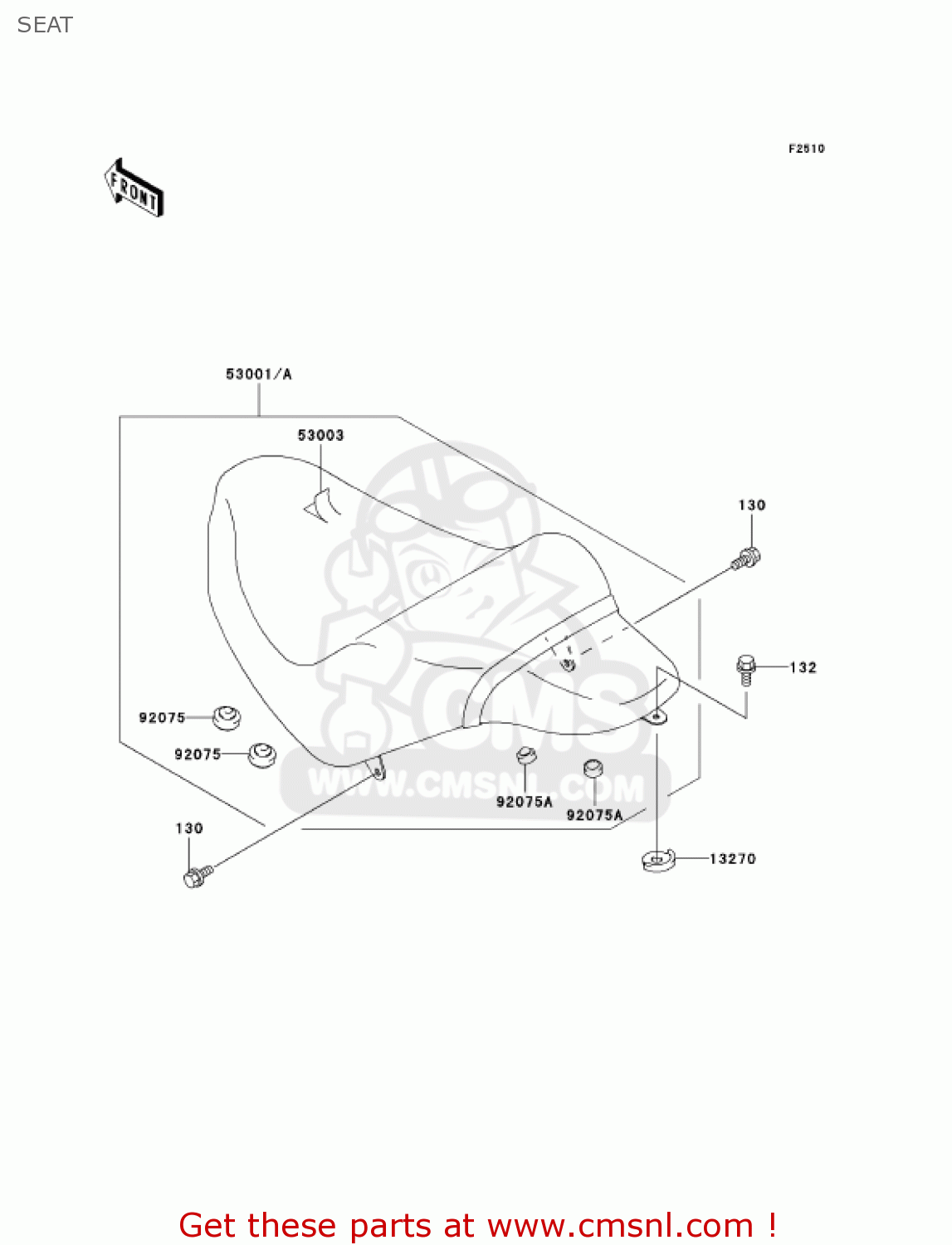

Seat diagram VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA

SEAT VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA

SEAT VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

132

132E0614
ref: 132

BOLT-FLANGED-SMALL,6X

€ 2.50

13270

132701484
ref: 13270

PLATE,RR SEAT,FR

€ 5.00

53001A

530011992MA
ref: 53001A

SEAT-ASSY,DUAL,W/BAND

€ 535.00

53003

530031476MA
ref: 53003

LEATHER,SEAT,BLACK

€ 196.50

92075

920751045
ref: 92075

DAMPER,STAND STOPPER

€ 5.00

92075A

920751927
ref: 92075A

DAMPER,10X20X8

€ 3.00
