FRONT WHEEL

VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA

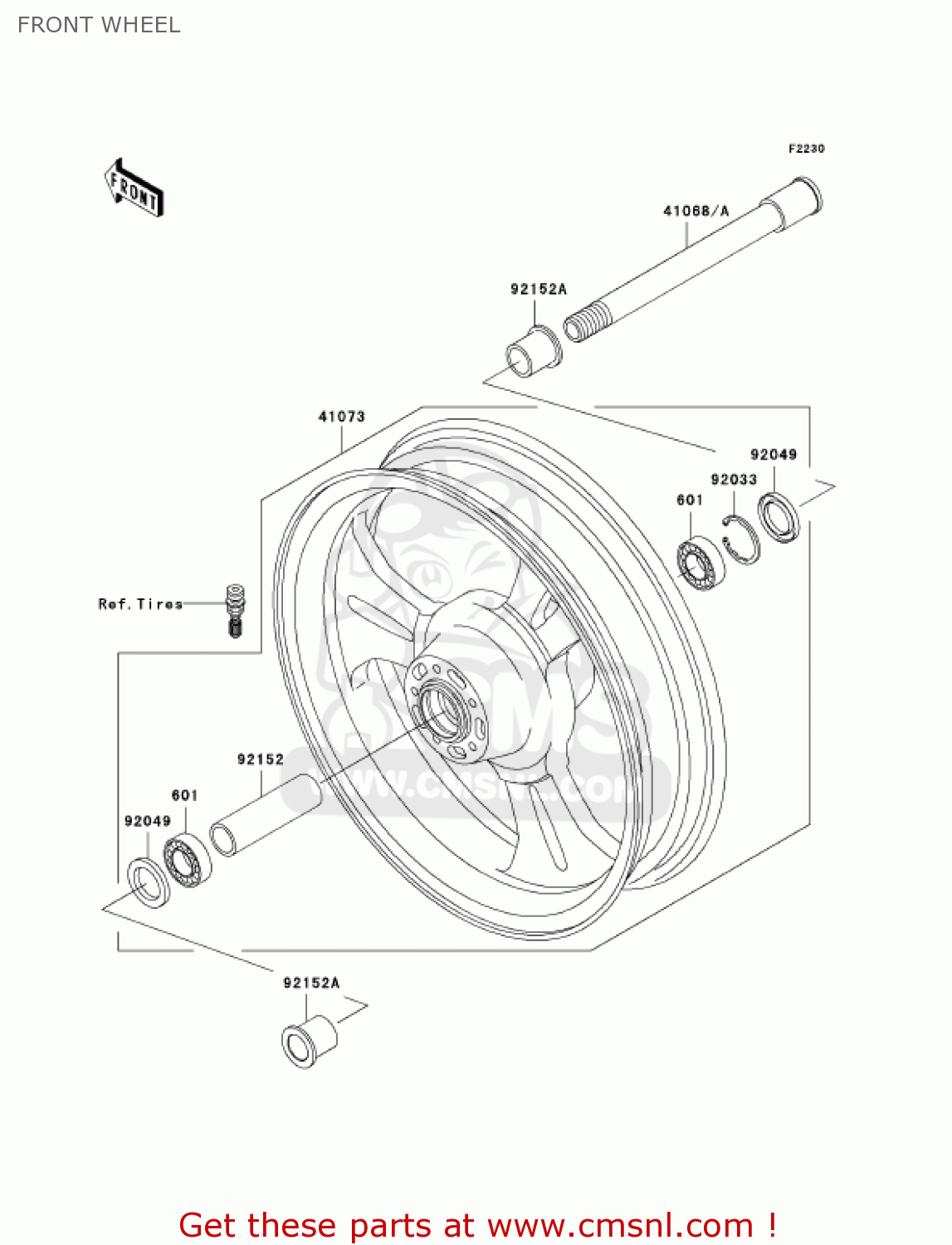

Front wheel diagram VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA

FRONT WHEEL VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA

FRONT WHEEL VN1500P2 VULCAN 1500 MEANSTREAK 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

601

601B6005UU
ref: 601

BEARING-BALL,#6005UU

€ 26.00

41068A

410681458
ref: 41068A

AXLE,FR

€ 68.00

41073

410731670
ref: 41073

WHEEL-ASSY,FR

€ 799.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92049

920491377
ref: 92049

SEAL-OIL,BJN 32 47 5

€ 9.50

92152

921521308
ref: 92152

COLLAR,FR HUB,L=109

€ 21.50

92152A

921521309
ref: 92152A

COLLAR,FR AXLE,L=34

€ 20.50
