GEAR CHANGE MECHANISM

VN1500N3 VULCAN 1500 CLASSIC FI 2002 USA CALIFORNIA CANADA

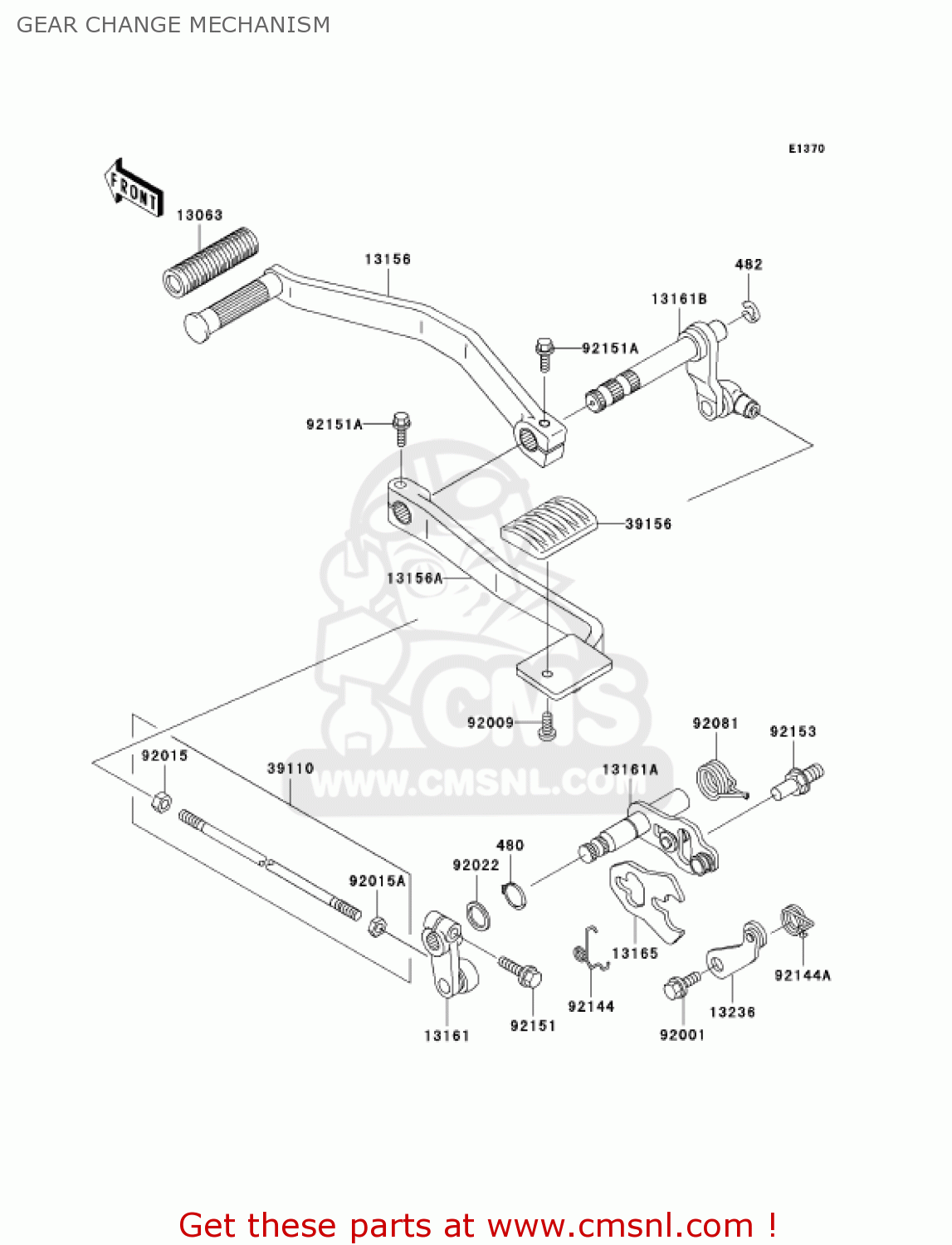

Gear change mechanism diagram VN1500N3 VULCAN 1500 CLASSIC FI 2002 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM VN1500N3 VULCAN 1500 CLASSIC FI 2002 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM VN1500N3 VULCAN 1500 CLASSIC FI 2002 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM VN1500N3 VULCAN 1500 CLASSIC FI 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
482
482L0100
ref: 482
CIRCLIP-TYPE-E,10MM
482L0100
€ 0.50
13063
13063002
ref: 13063
RUBBER-KICK PEDAL
13063002
€ 3.00
13156
131561456
ref: 13156
LEVER-CHANGE
€ 78.50
13156A
131561467
ref: 13156A
LEVER-CHANGE
131561467
€ 79.00
13161
131611253
ref: 13161
LEVER-COMP-CHANGE SHA
131611253
€ 53.50
13161A
131611254
ref: 13161A
LEVER-COMP-CHANGE SHA
€ 52.00
13161B
131611266
ref: 13161B
LEVER-COMP-CHANGE SHA
131611266
€ 55.00
13165
131651120
ref: 13165
PAWL
131651120
€ 9.50
13236
132361126
ref: 13236
LEVER-COMP,POSITION
132361126
€ 9.00
39110
391101119
ref: 39110
ROD-ASSY-TIE
391101119
€ 9.50
39156
391561641
ref: 39156
PAD
391561641
€ 9.50
92001
920011715
ref: 92001
BOLT
920011715
€ 7.00
92009
920091677
ref: 92009
SCREW,6X8,BLACK
920091677
€ 2.50
92015
920151443
ref: 92015
NUT
920151443
€ 2.50
92015A
920151444
ref: 92015A
NUT
920151444
€ 3.00
92022
920221224
ref: 92022
WASHER,13.2X20X0.5
920221224
€ 2.50
92081
920811869
ref: 92081
SPRING,CHANGE PEDAL R
920811869
€ 7.00
92144
921441029
ref: 92144
SPRING
921441029
€ 5.00
92144A
921441140
ref: 92144A
SPRING,RETURN
€ 5.50
92151
921511226
ref: 92151
BOLT,6X20
921511226
€ 1.50
92151A
921511898
ref: 92151A
BOLT
921511898
€ 1.50
92153
921531076
ref: 92153
BOLT
€ 6.50
