FENDERS (VN1500-N3)

VN1500N3 VULCAN 1500 CLASSIC FI 2002 USA CALIFORNIA CANADA

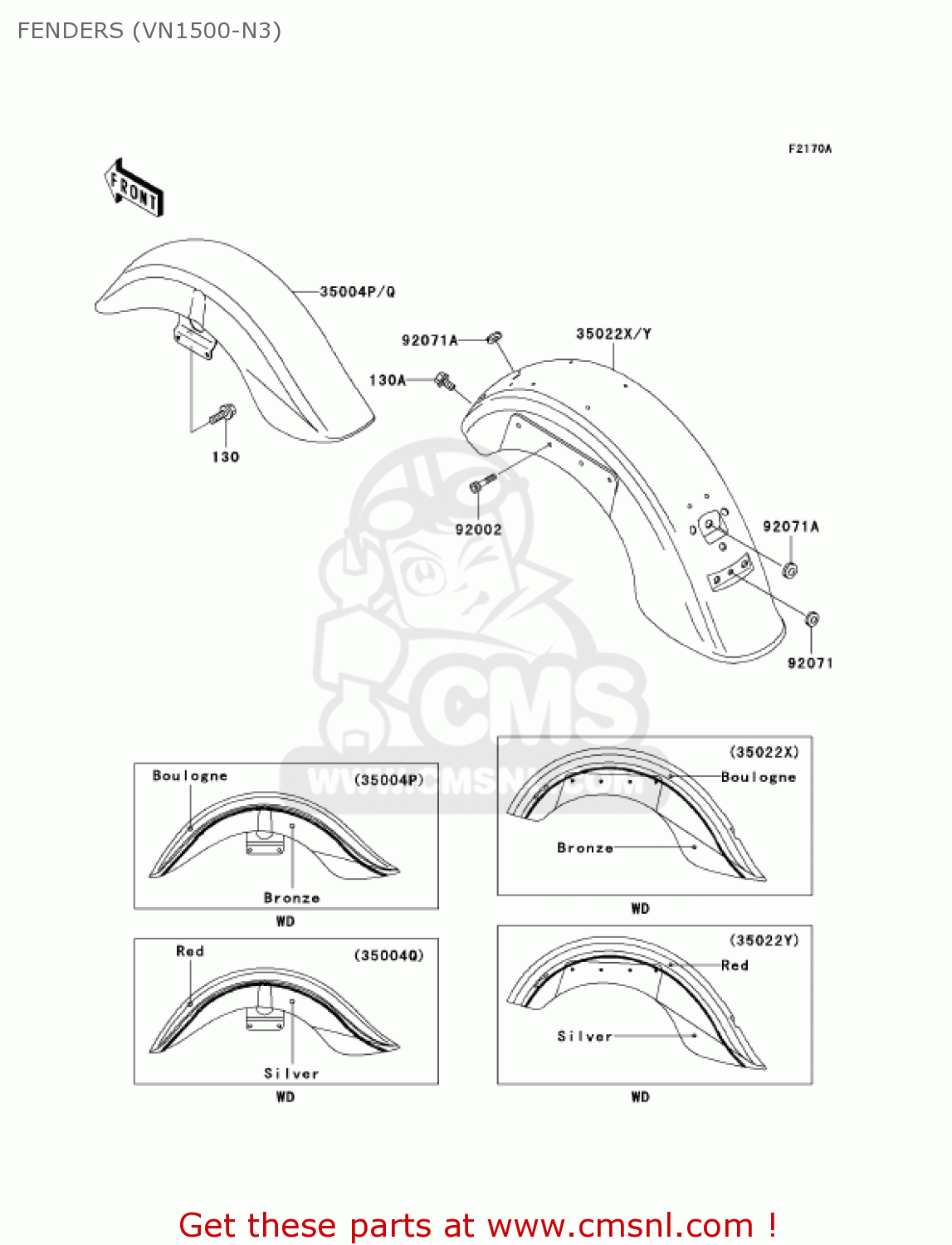

Fenders (vn1500-n3) diagram VN1500N3 VULCAN 1500 CLASSIC FI 2002 USA CALIFORNIA CANADA

FENDERS (VN1500-N3) VN1500N3 VULCAN 1500 CLASSIC FI 2002 USA CALIFORNIA CANADA

FENDERS (VN1500-N3) VN1500N3 VULCAN 1500 CLASSIC FI 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

35004P

350045199223
ref: 35004P

FENDER-FRONT,BOULOGNE

€ 468.50

35004Q

350045200224
ref: 35004Q

FENDER-FRONT,RED/SILV

€ 495.50

35022X

350225106223
ref: 35022X

FENDER-REAR,BOULOGNE/

€ 466.50

35022Y

350225107224
ref: 35022Y

FENDER-COMP-REAR,RED/

€ 466.50

130

130J0814
ref: 130

BOLT-FLANGED,8X14

€ 2.50

130A

130J0816
ref: 130A

BOLT-FLANGED,8X16,BLA

€ 0.50

92002

920021442
ref: 92002

BOLT,SOCKET,8X25

€ 3.00

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

92071A

92071099
ref: 92071A

GROMMET, REAR FENDER

€ 3.00
