SIDE COVERS

VN1500N2 VULCAN 1500 CLASSIC FI 2001 USA CALIFORNIA CANADA

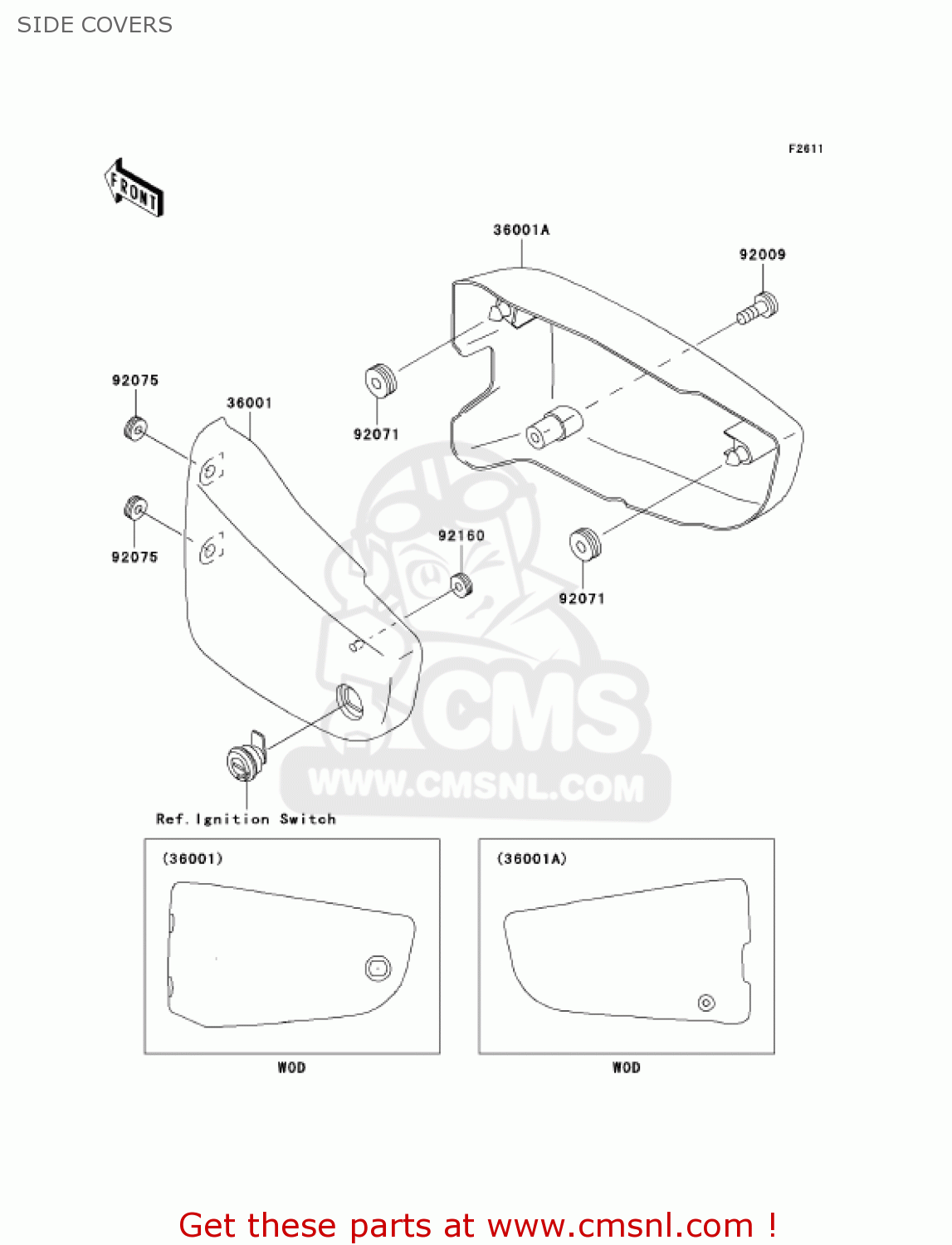

Side covers diagram VN1500N2 VULCAN 1500 CLASSIC FI 2001 USA CALIFORNIA CANADA

SIDE COVERS VN1500N2 VULCAN 1500 CLASSIC FI 2001 USA CALIFORNIA CANADA

SIDE COVERS VN1500N2 VULCAN 1500 CLASSIC FI 2001 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

36001

360011645H8
ref: 36001

COVER-SIDE,LH,EBONY

€ 155.00

36001A

360011646H8
ref: 36001A

COVER-SIDE,RH,EBONY

€ 155.00

92009

920091874
ref: 92009

SCREW,6X35

€ 2.00

92071

920711131
ref: 92071

GROMMET

€ 5.00

92075

920751629
ref: 92075

DAMPER,SEAT COVER KIT

€ 3.00

92160

921601944
ref: 92160

DAMPER

€ 2.00
