CHASSIS ELECTRICAL EQUIPMENT

VN1500N2 VULCAN 1500 CLASSIC FI 2001 USA CALIFORNIA CANADA

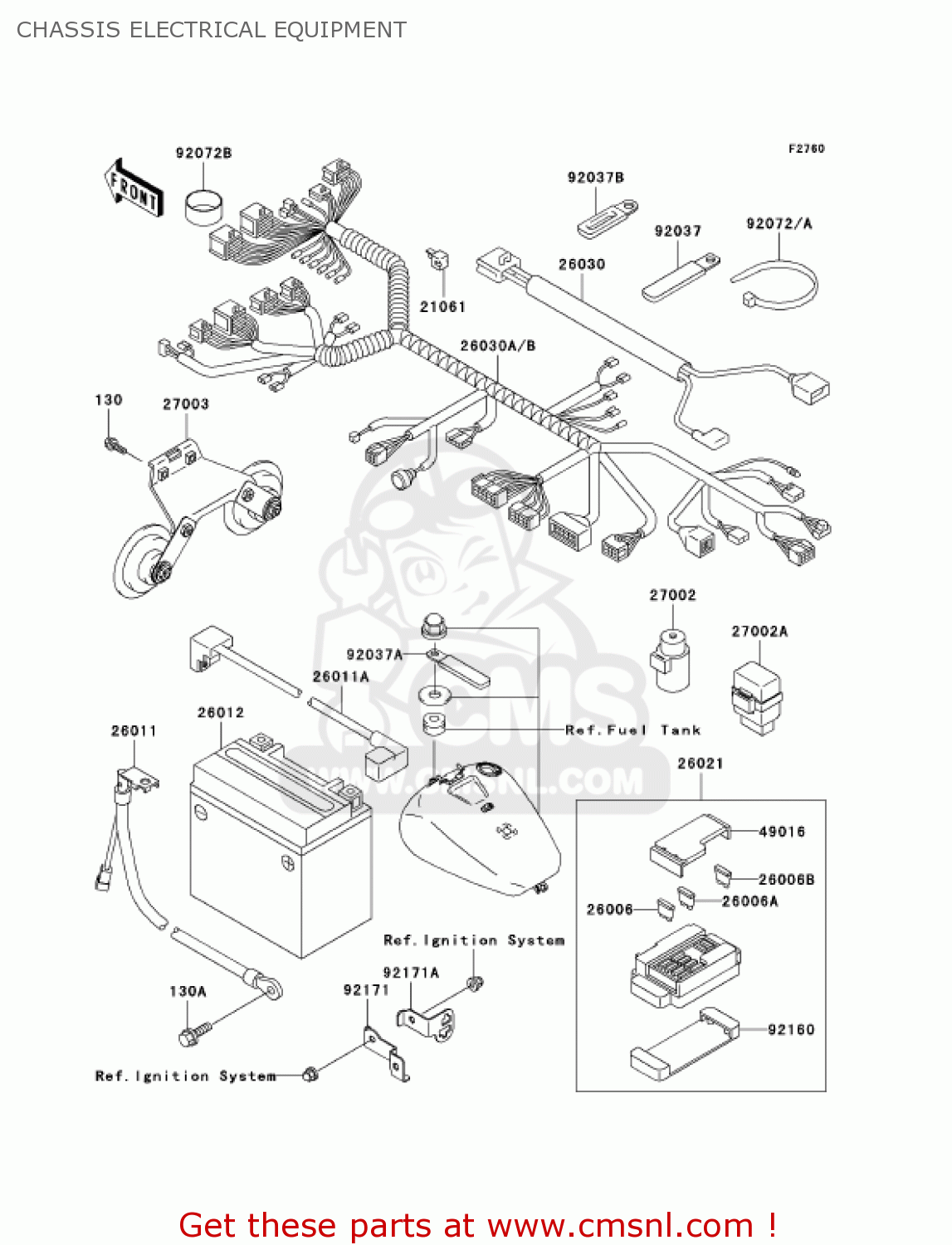

Chassis electrical equipment diagram VN1500N2 VULCAN 1500 CLASSIC FI 2001 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT VN1500N2 VULCAN 1500 CLASSIC FI 2001 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT VN1500N2 VULCAN 1500 CLASSIC FI 2001 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT VN1500N2 VULCAN 1500 CLASSIC FI 2001 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0630
ref: 130
BOLT FLANGED,6X30,BLC
130J0630
€ 2.50
130A
130V0610
ref: 130A
BOLT-FLANGED,6X10
130V0610
€ 0.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26006B
260061069
ref: 26006B
FUSE
€ 3.50
26011
260111750
ref: 26011
WIRE-LEAD,BATTERY(-)
€ 40.00
26011A
260111764
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 35.50
26012
260121371
ref: 26012
BATTERY,MF,FTZ16-BS,1
€ 165.50
26021
260211096
ref: 26021
JUNCTION BOX
260211096
€ 112.00
26030
260301450
ref: 26030
HARNESS,SUB
260301450
€ 14.00
26030B
260301852
ref: 26030B
HARNESS,MAIN
€ 650.00
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27002A
270021113
ref: 27002A
RELAY-ASSY,SIGNAL LAM
270021113
€ 88.00
27003
270031406
ref: 27003
HORN
270031406
€ 106.50
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
92037113
ref: 92037A
CLAMP
92037113
€ 4.00
92037B
920371780
ref: 92037B
CLAMP
920371780
€ 4.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92072B
920721393
ref: 92072B
BAND
€ 3.50
92160
921601650
ref: 92160
DAMPER,JUNCTION BOX
921601650
€ 9.50
92171
921711262
ref: 92171
CLAMP
€ 4.00
92171A
921711263
ref: 92171A
CLAMP,HARNESS
€ 4.00
