FRAME

VN1500N2 VULCAN 1500 CLASSIC FI 2001 USA CALIFORNIA CANADA

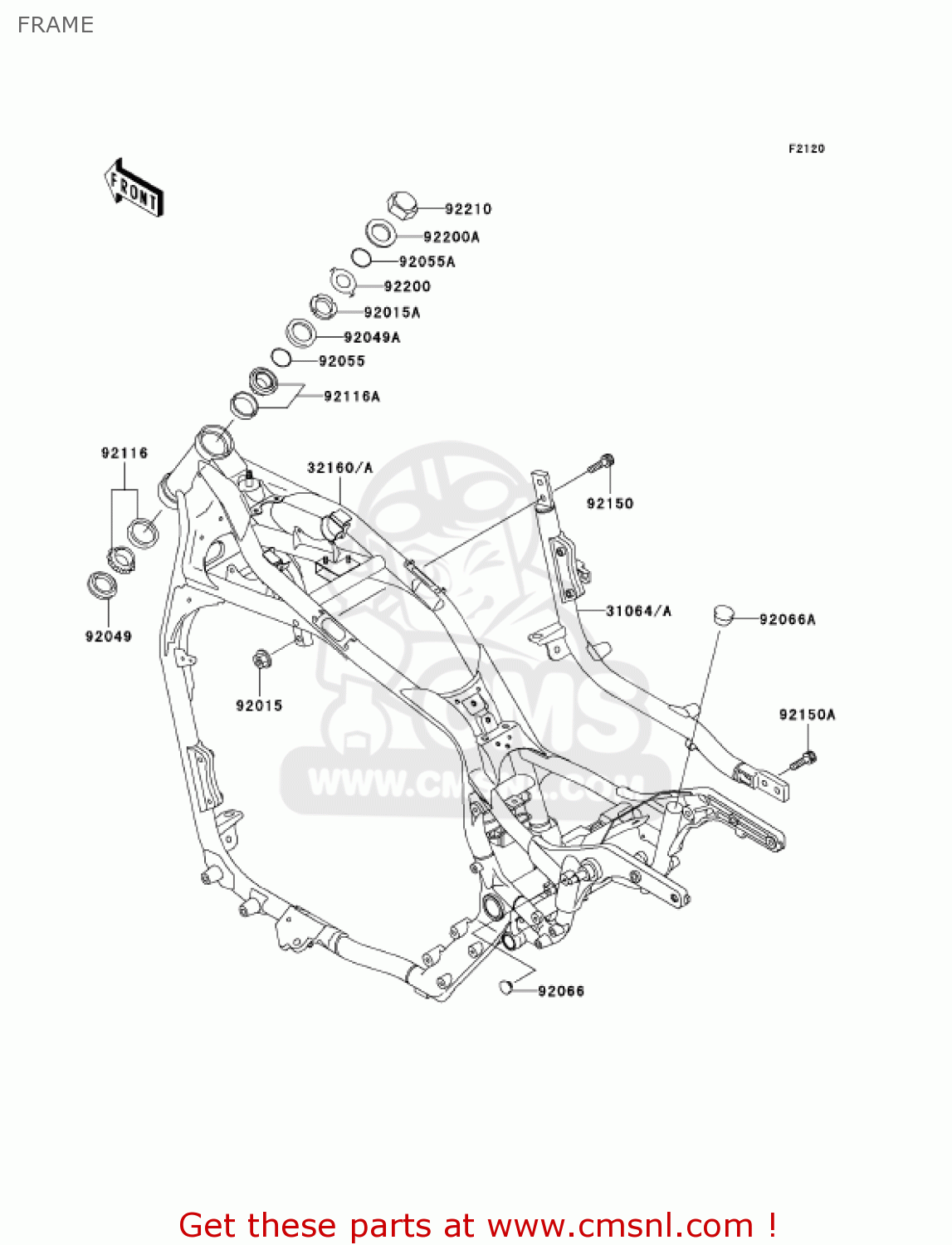

Frame diagram VN1500N2 VULCAN 1500 CLASSIC FI 2001 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

31064A

310641237
ref: 31064A

PIPE-COMP,DOWNTUBE,LH

€ 473.50

32160A

321601679
ref: 32160A

FRAME-COMP

€ 1,940.00

92015

920151727
ref: 92015

NUT

€ 2.50

92015A

920151848
ref: 92015A

NUT,STEERING STEM,35M

€ 32.50

92049

920491383
ref: 92049

SEAL-OIL,XMHE 43 55 4

€ 13.00

92049A

920491483
ref: 92049A

SEAL-OIL,MX043N2

€ 13.50

92055

920551452
ref: 92055

RING-O,34.5X2.0

€ 3.00

92055A

920551459
ref: 92055A

RING-O,ID=24.5

€ 3.00

92066

920661077
ref: 92066

CAP,REAR VIEW MIRROR

€ 3.00

92066A

920661444
ref: 92066A

PLUG

€ 3.50

92116

921161072
ref: 92116

BEARING-ROLLER,32907J

€ 76.50

92116A

921161074
ref: 92116A

BEARING-ROLLER,32907J

€ 76.50

92150

921501690
ref: 92150

BOLT,SOCKET,10X30

€ 4.00

92150A

921501942
ref: 92150A

BOLT,SOCKET,10X23

€ 4.50

92200

922001083
ref: 92200

WASHER,CLAW,25.5X40X2

€ 4.50

92200A

922001084
ref: 92200A

WASHER,25.5X42X2.3

€ 3.50

92210

922101166
ref: 92210

NUT

€ 17.00
