TURN SIGNALS

VN1500G1 VULCAN NOMAD 1999 USA CALIFORNIA CANADA

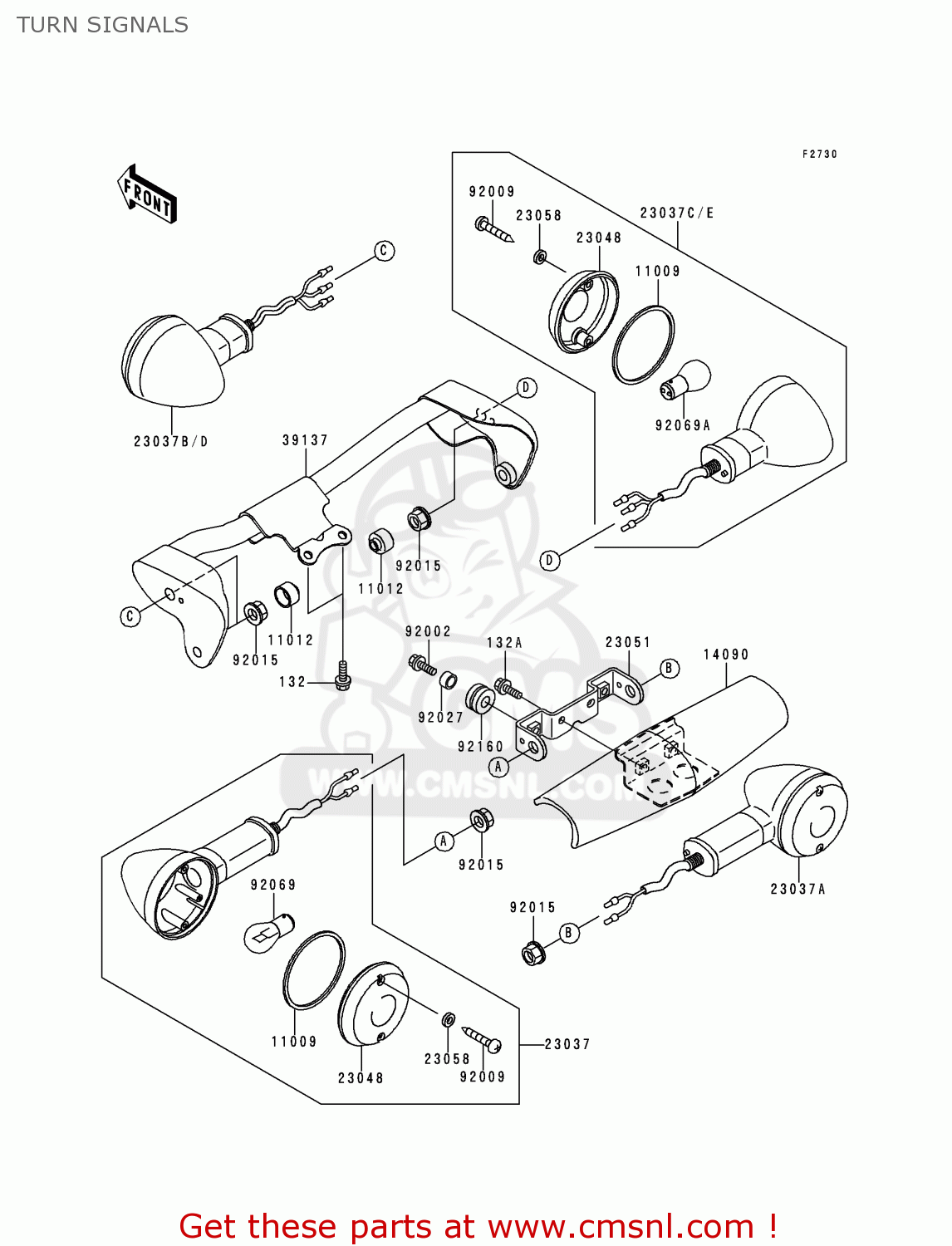

Turn signals diagram VN1500G1 VULCAN NOMAD 1999 USA CALIFORNIA CANADA

TURN SIGNALS VN1500G1 VULCAN NOMAD 1999 USA CALIFORNIA CANADA
TURN SIGNALS VN1500G1 VULCAN NOMAD 1999 USA CALIFORNIA CANADA
TURN SIGNALS VN1500G1 VULCAN NOMAD 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
132A
132J0614
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
11009
110091413
ref: 11009
GASKET,SIGNAL LAMP (NAS)
110091413
€ 3.00
11012
110121367
ref: 11012
CAP,SIGNAL LAMP
110121367
€ 4.00
14090
140901691
ref: 14090
COVER
140901691
€ 48.50
23037
230371321
ref: 23037
LAMP-ASSY-SIGNAL,RR
230371321
€ 63.00
23037A
230371322
ref: 23037A
LAMP-ASSY-SIGNAL,RR
€ 63.00
23037B
230371347
ref: 23037B
SIGNAL LAMP ASSEMBLY,FRONT,LH
€ 45.50
23037C
230371355
ref: 23037C
SIGNAL LAMP ASSEMBLY,FRONT,RH
€ 45.50
23037D
230371377
ref: 23037D
LAMP-ASSY-SIGNAL,FR
230371377
€ 62.00
23037E
230371378
ref: 23037E
SIGNAL LAMP ASSEMBLY,FRONT,RH
€ 62.00
23048
230481066
ref: 23048
LENS-SIGNAL LAMP
230481066
€ 12.00
23051
230511230
ref: 23051
BRACKET-SIGNAL LAMP,R
230511230
€ 13.50
23058
23058002
ref: 23058
WASHER,PLAIN,4MM
23058002
€ 2.00
39137
391371071
ref: 39137
STAY-COMP,SIGNAL LAMP
391371071
€ 91.00
92002
920021262
ref: 92002
BOLT,6X22
920021262
€ 2.00
92009
920091637
ref: 92009
SCREW,TAPPING,4X25
920091637
€ 2.50
92015
920151428
ref: 92015
NUT,FLANGED,10MM
920151428
€ 3.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92069
92069055
ref: 92069
BULB 12V 32CP
92069055
€ 4.50
92069A
92069060
ref: 92069A
BULB.12V 23/8W
92069060
€ 5.00
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
