SUSPENSION/SHOCK ABSORBER

VN1500G1 VULCAN NOMAD 1999 USA CALIFORNIA CANADA

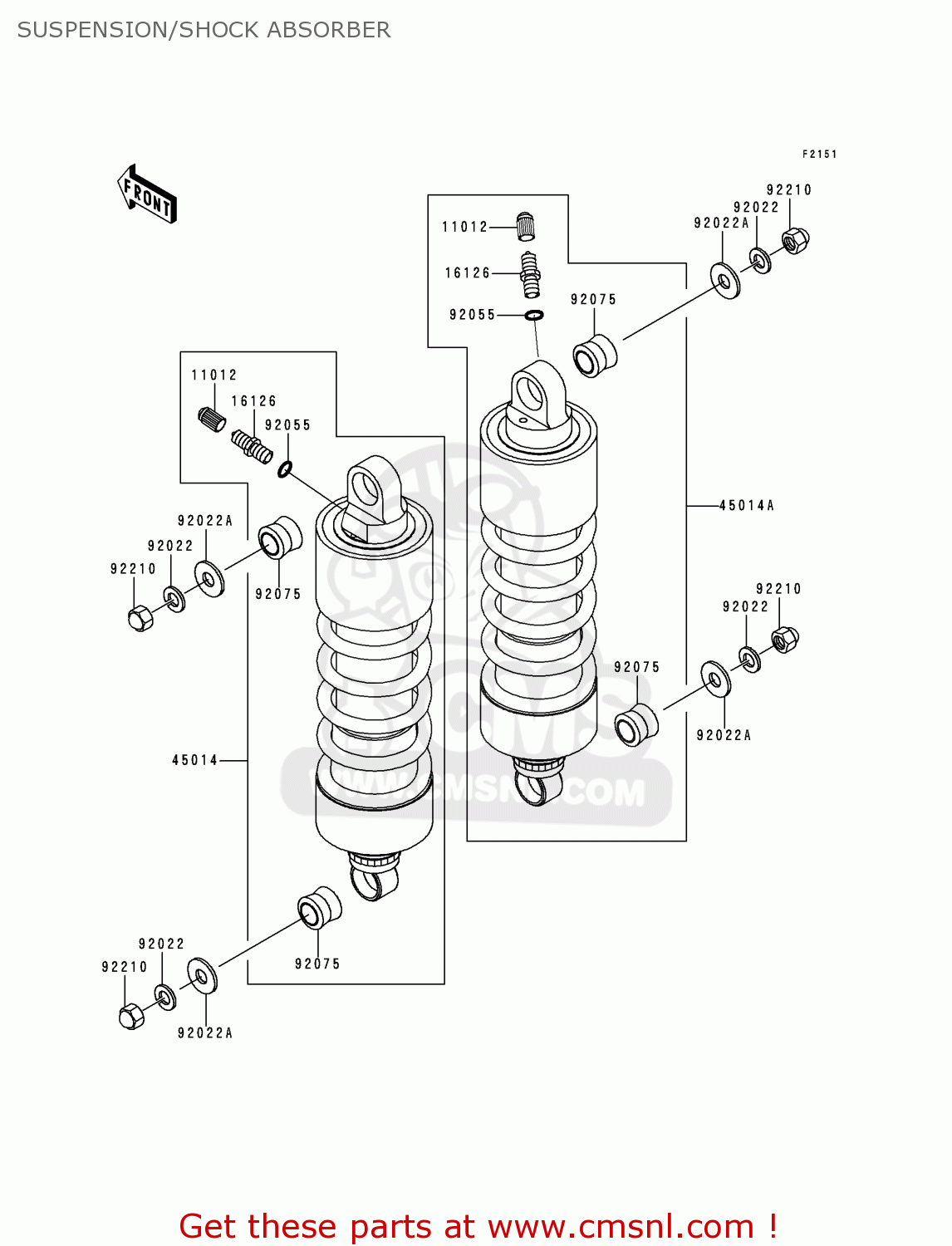

Suspension/shock absorber diagram VN1500G1 VULCAN NOMAD 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121283
ref: 11012

CAP

€ 5.50

16126

161261105
ref: 16126

VALVE,AIR

€ 24.50

45014

450141702
ref: 45014

SHOCKABSORBER,LH

€ 550.00

45014A

450141703
ref: 45014A

SHOCKABSORBER,RH

€ 550.00

92022

920221540
ref: 92022

WASHER,SPRING,10MM

€ 2.50

92022A

92022246
ref: 92022A

WASHER,10.5X26X2.3

€ 4.00

92055

920551130
ref: 92055

RING-O

€ 1.50

92075

920751387
ref: 92075

920751387

92210

922101128
ref: 92210

NUT,CAP,10MM

€ 2.00
