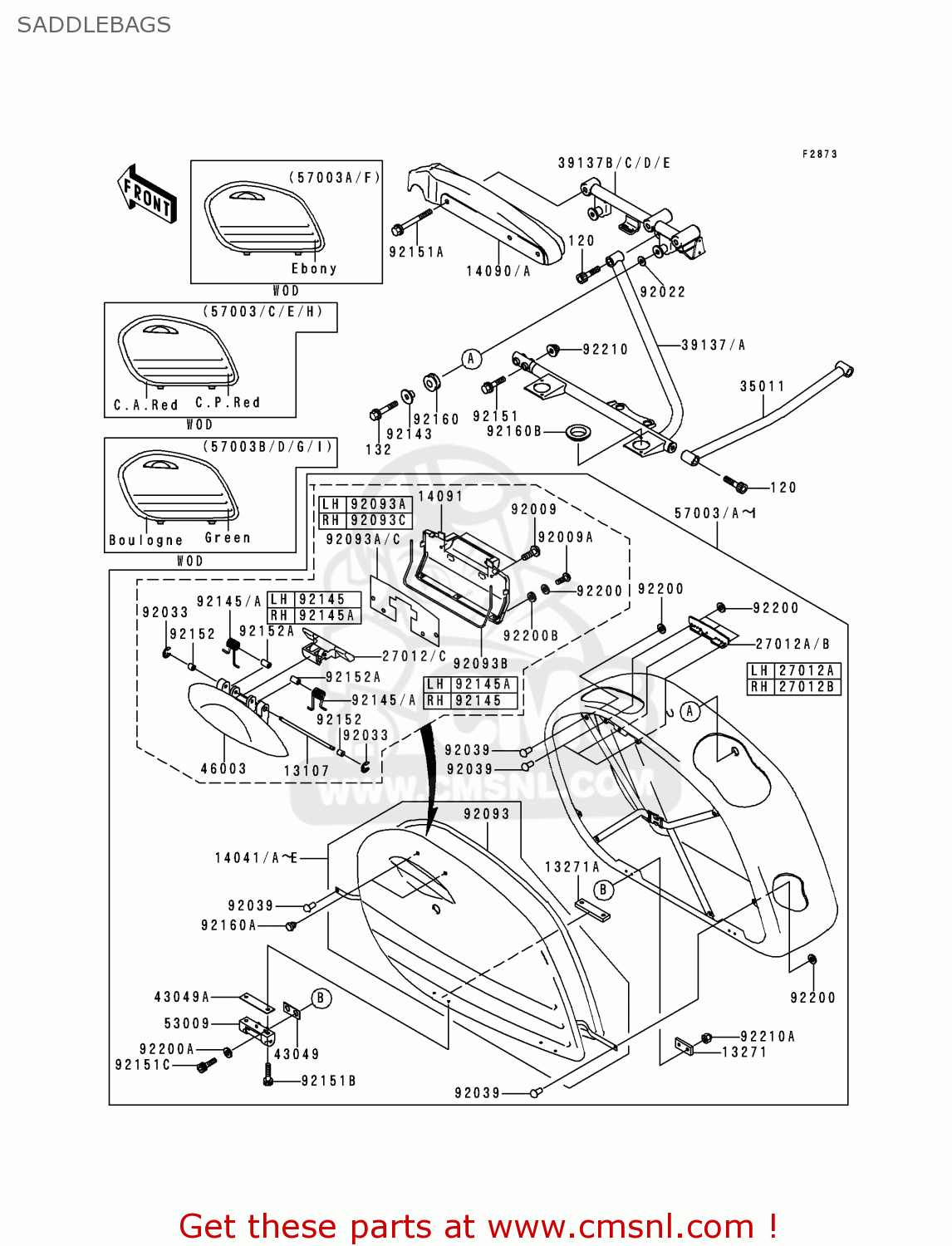

SADDLEBAGS

ref

part #

description

quantity

13107

131071403
ref: 13107

SHAFT

€ 2.50

13271

132711146
ref: 13271

PLATE

€ 2.50

13271A

132711147
ref: 13271A

PLATE

€ 5.50

14041

140411130A5
ref: 14041

SADDLE BAG COVER,COMPLETE,LH,CANDY PERSIMMON RED

€ 337.00

14041A

140411130H8
ref: 14041A

COVER-COMP,SIDE BAG,L

€ 471.50

14041B

14041113081
ref: 14041B

COVER-COMP,SIDE BAG,L

€ 447.00

14041C

140411131A5
ref: 14041C

SADDLE BAG COVER,COMPLETE,RH,CANDY PERSIMMON RED

€ 331.50

14041D

140411131H8
ref: 14041D

COVER-COMP,SIDE BAG,R

€ 431.50

14041E

14041113181
ref: 14041E

COVER-COMP,SIDE BAG,R

€ 406.50

14090

140901894
ref: 14090

COVER,RR FENDER,LH

€ 56.50

14090A

140901895
ref: 14090A

COVER,RR FENDER,RH

€ 68.00

14091

140911069
ref: 14091

COVER

€ 14.00

27012

270121570
ref: 27012

HOOK,HANDLE

€ 13.50

27012A

270121571
ref: 27012A

HOOK,LOCK PLATE,LH

€ 10.50

27012B

270121572
ref: 27012B

HOOK,LOCK PLATE,RH

€ 10.50

27012C

270121575
ref: 27012C

HOOK,HANDLE

€ 13.50

35011

350111896
ref: 35011

STAY,SIDE BAG

€ 44.50

39137

391371067
ref: 39137

STAY-COMP,SIDE BAG,LH

€ 120.50

39137A

391371068
ref: 39137A

STAY-COMP,SIDE BAG,RH

€ 123.00

39137B

391371069
ref: 39137B

STAY-COMP,SIDE BAG,LH

€ 112.00

39137C

391371070
ref: 39137C

STAY-COMP,SIDE BAG,RH

€ 135.00

39137D

391371075
ref: 39137D

STAY-COMP,SIDE BAG,LH

€ 127.00

39137E

391371076
ref: 39137E

STAY-COMP,SIDE BAG,RH

€ 148.50

43049

430491084
ref: 43049

PACKING (NAS)

€ 1.50

43049A

430491086
ref: 43049A

PACKING (NAS)

€ 1.50

46003

460031505
ref: 46003

HANDLE,SIDE BAG

€ 137.50

53009

530091104
ref: 53009

HINGE

€ 17.50

57003

570031082A5
ref: 57003

BAG ASSEMBLY,LH,CANDY PERSIMMON RED

€ 936.00

57003A

570031082H8
ref: 57003A

BAG-ASSY,LH,EBONY

€ 1,633.00

57003B

57003108225
ref: 57003B

BAG-ASSY,LH,BOULOGNE+

€ 1,633.00

57003C

57003108228
ref: 57003C

BAG ASSEMBLY,RH,RED MICA/RED

€ 936.00

57003D

57003108281
ref: 57003D

BAG-ASSY,LH,C.A.GREEN

€ 1,633.00

57003E

570031083A5
ref: 57003E

BAG ASSEMBLY,RH,CANDY PERSIMMON RED

€ 936.00

57003F

570031083H8
ref: 57003F

BAG-ASSY,RH,EBONY

€ 1,796.00

57003G

57003108325
ref: 57003G

BAG-ASSY,RH,BOULOGNE+

€ 1,441.50

57003H

57003108328
ref: 57003H

BAG ASSEMBLY,RH,RED MICA/RED

€ 936.00

57003I

57003108381
ref: 57003I

BAG-ASSY,C.A.GREEN

€ 1,441.50

92009

920091870
ref: 92009

SCREW

€ 1.00

92009A

920091871
ref: 92009A

SCREW

€ 1.00

92022

920221317
ref: 92022

WASHER,8.5X20X1.6,BLA

€ 2.00

120

120S0835
ref: 120

BOLT-SOCKET,8X35,BLAC

€ 3.00

132

132J0845
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

92033

920331300
ref: 92033

RING-SNAP

€ 1.00

92039

920391236
ref: 92039

RIVET

€ 1.50

92093

920931486
ref: 92093

SEAL

€ 8.50

92093A

920931487
ref: 92093A

SEAL

€ 3.50

92093B

920931488
ref: 92093B

SEAL

€ 2.00

92093C

920931489
ref: 92093C

SEAL

€ 3.50

92143

921431450
ref: 92143

COLLAR

€ 6.50

92145

921451175
ref: 92145

SPRING

€ 4.50

92145A

921451200
ref: 92145A

SPRING

€ 4.50

92151

921511402
ref: 92151

BOLT,FLANGED,8X35

€ 1.50

92151A

921511403
ref: 92151A

BOLT,FLANGED,8X75

€ 3.00

92151B

921511436
ref: 92151B

BOLT

€ 1.50

92151C

921511437
ref: 92151C

BOLT

€ 1.50

92152

921521121
ref: 92152

COLLAR

€ 2.50

92152A

921521122
ref: 92152A

COLLAR

€ 2.00

92160

921601012
ref: 92160

DAMPER

€ 3.50

92160A

921601976
ref: 92160A

DAMPER

€ 1.50

92160B

921601981
ref: 92160B

DAMPER

€ 7.00

92200

922001442
ref: 92200

WASHER

€ 1.00

92200A

922001443
ref: 92200A

WASHER

€ 1.00

92200B

922001444
ref: 92200B

WASHER,3MM

€ 1.00

92210

922101161
ref: 92210

NUT,CAP,8MM

€ 1.50

92210A

922101168
ref: 92210A

NUT

€ 1.50

all assemblies
