CLUTCH MASTER CYLINDER

VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA

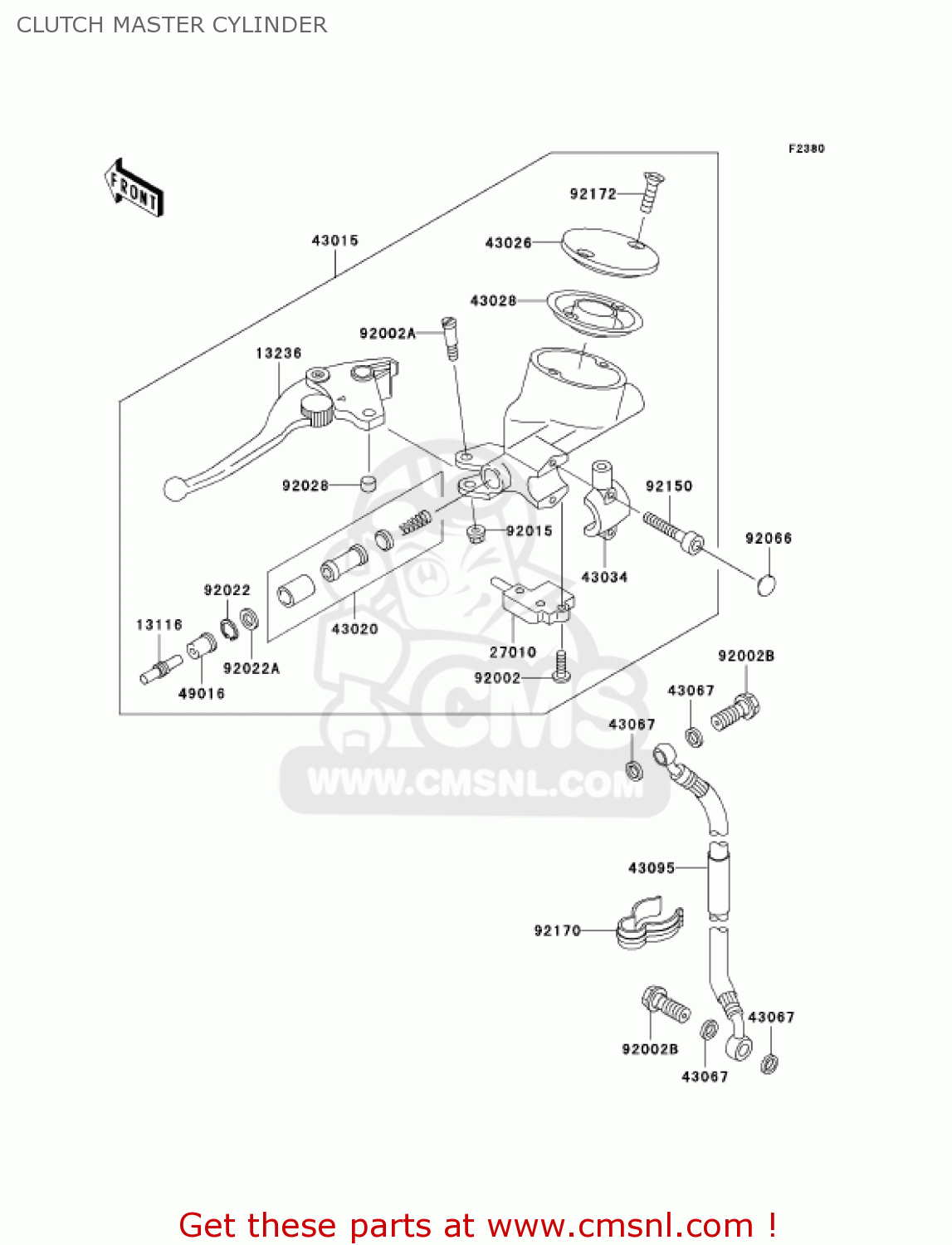

Clutch master cylinder diagram VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA

CLUTCH MASTER CYLINDER VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA
CLUTCH MASTER CYLINDER VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA
CLUTCH MASTER CYLINDER VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13116
131161110
ref: 13116
ROD-PUSH,MASTER CYLIN
131161110
€ 24.00
13236
132361316
ref: 13236
LEVER-COMP,CLUTCH
132361316
€ 37.00
27010
270101406
ref: 27010
SWITCH,CLUTCH
270101406
€ 25.00
43015
430150012
ref: 43015
CYLINDER-ASSY-MASTER,
430150012
€ 406.50
43020
430201055
ref: 43020
PISTON-COMP-BRAKE,CLU
430201055
€ 47.50
43026
430261083
ref: 43026
CAP-BRAKE
430261083
€ 50.00
43028
430281071
ref: 43028
DIAPHRAGM,MASTER CYLI
430281071
€ 15.50
43034
430341147
ref: 43034
HOLDER-BRAKE
430341147
€ 31.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43095
430951280
ref: 43095
HOSE-BRAKE,CLUTCH
€ 82.00
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
92002
920021325
ref: 92002
BOLT
920021325
€ 4.00
92002A
920021561
ref: 92002A
BOLT,LEVER SET
920021561
€ 8.00
92002B
920021888
ref: 92002B
BOLT,OIL,L=23
920021888
€ 3.50
92015
920151528
ref: 92015
NUT,FLANGED,6MM
920151528
€ 3.50
92022
920221605
ref: 92022
WASHER,PISTON
920221605
€ 3.00
92022A
920221606
ref: 92022A
WASHER,PISTON
920221606
€ 3.00
92028
920281310
ref: 92028
BUSHING,MASTER CYLIND
920281310
€ 10.00
92066
920661301
ref: 92066
PLUG
920661301
€ 4.00
92150
921501025
ref: 92150
BOLT,SOCKET,6MM
921501025
€ 4.50
92170
921701703
ref: 92170
CLAMP,HOSE
921701703
€ 5.50
92172
921720089
ref: 92172
SCREW
€ 3.00
