CHASSIS ELECTRICAL EQUIPMENT

VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA

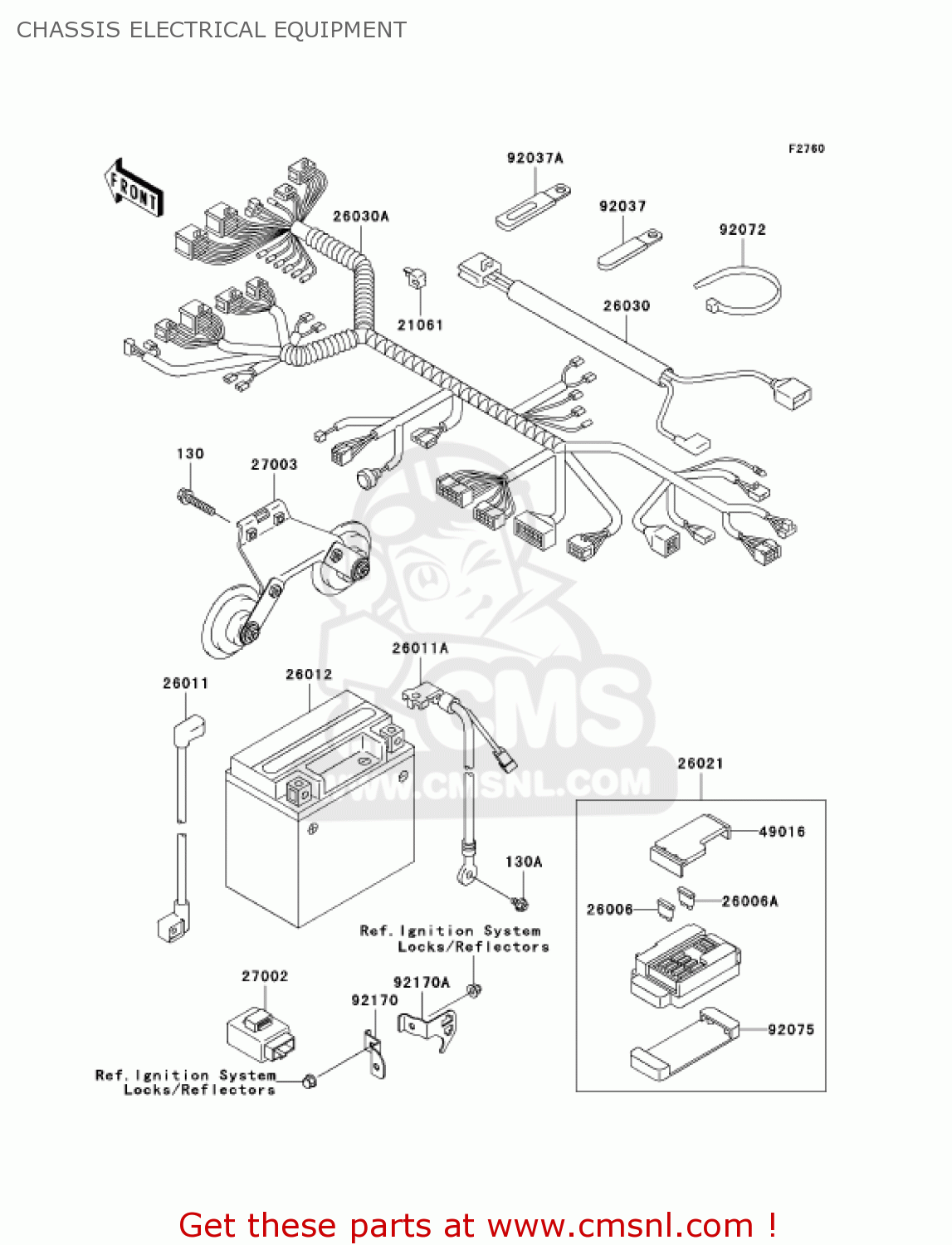

Chassis electrical equipment diagram VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0630
ref: 130

BOLT FLANGED,6X30,BLC

€ 2.50

130A

130V0610
ref: 130A

BOLT-FLANGED,6X10

€ 0.50

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111770
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 22.50

26011A

260111771
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 20.50

26012

260121368
ref: 26012

BATTERY,MF,FTH16-BS,1

€ 165.50

26021

260211089
ref: 26021

JUNCTION BOX

€ 126.00

26030

260301450
ref: 26030

HARNESS,SUB

€ 14.00

26030A

260301797
ref: 26030A

HARNESS,MAIN

€ 189.00

27002

270021111
ref: 27002

RELAY-ASSY,SIGNAL LAM

€ 95.50

27003

270031406
ref: 27003

HORN

€ 106.50

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371539
ref: 92037

CLAMP,L=45

€ 3.00

92037A

920371780
ref: 92037A

CLAMP

€ 4.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

92170

921701699
ref: 92170

CLAMP,IGNITION SWITCH

€ 4.50

92170A

921701700
ref: 92170A

CLAMP,RR BRAKE SWITCH

€ 4.00
