Genuine VN Kawasaki Parts delivered quickly!


CARBURETOR

VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA

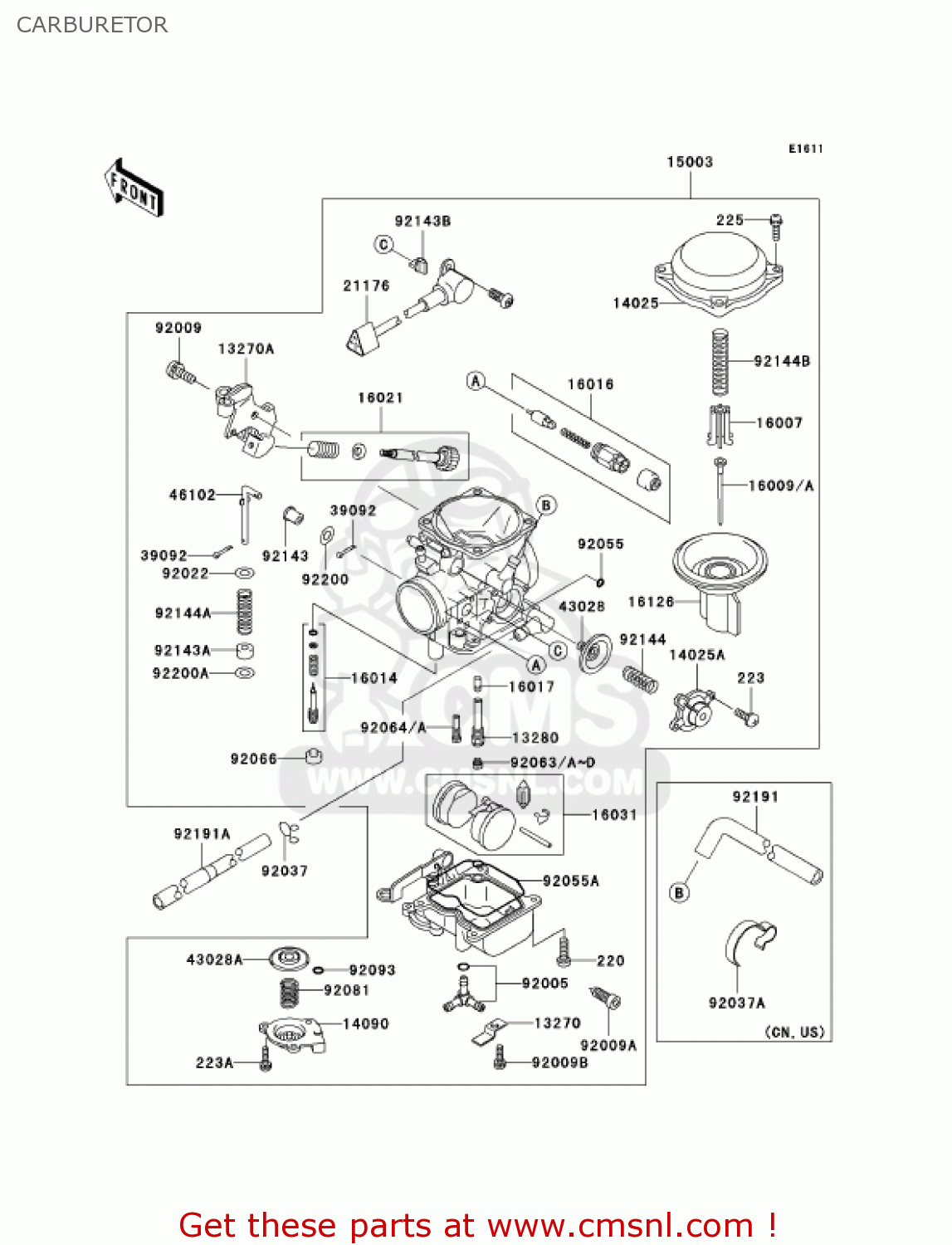

Carburetor diagram VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA

CARBURETOR VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA
CARBURETOR VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA
CARBURETOR VN1500E7 VULCAN 1500 CLASSIC 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13270
132701286
ref: 13270
PLATE,FITTING STAY
€ 46.00
13270A
132701513
ref: 13270A
PLATE
€ 31.00
13280
132801087
ref: 13280
HOLDER,NEEDLE JET
€ 19.00
14025
140251890
ref: 14025
COVER,MIXING CHAMBER
140251890
€ 58.50
14025A
140251903
ref: 14025A
COVER,AIR CUT VALVE
140251903
€ 43.00
14090
140901635
ref: 14090
COVER,ACCELERATOR
€ 40.50
15003
150031380
ref: 15003
CARBURETOR ASSEMBLY
€ 627.50
16007
160071113
ref: 16007
SEAT-SPRING,DIAPHRAGM
160071113
€ 13.50
16009
160091941
ref: 16009
NEEDLE-JET,N2PY
160091941
€ 26.00
16009A
160091995
ref: 16009A
(OPTION)
JET,NEEDLE,#N5AM
€ 21.00
16014
160141082
ref: 16014
SCREW-PILOT AIR
160141082
€ 25.50
16016
160161087
ref: 16016
PLUNGER
160161087
€ 67.50
16017
160171276
ref: 16017
JET-NEEDLE,01B38
160171276
€ 38.00
16021
160211219
ref: 16021
SCREW-THROTTLE STOP
€ 78.50
16031
160311090
ref: 16031
FLOAT
160311090
€ 51.00
16126
161261325
ref: 16126
VALVE,VACUUM
161261325
€ 179.00
21176
211761078
ref: 21176
SENSOR
€ 411.50
39092
390921058
ref: 39092
PIN-HAIR
390921058
€ 2.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
430281053
€ 62.50
43028A
430281077
ref: 43028A
DIAPHRAGM
430281077
€ 62.50
46102
461021400
ref: 46102
ROD,ACCELERATOR PUMP
€ 19.00
92005
920051350
ref: 92005
FITTING
920051350
€ 23.50
92009
920091365
ref: 92009
SCREW
920091365
€ 4.50
92009A
920091551
ref: 92009A
SCREW,DRAIN
920091551
€ 6.50
92009B
920091704
ref: 92009B
SCREW
920091704
€ 2.50
92022
920221480
ref: 92022
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371531
ref: 92037
CLAMP,TUBE
920371531
€ 3.50
92037A
920371552
ref: 92037A
[CN,US
CLAMP
920371552
€ 6.50
92055
920551245
ref: 92055
RING-O
920551245
€ 3.50
92055A
920551518
ref: 92055A
RING-O,FLOAT CHAMBER
920551518
€ 15.00
92063
920631013
ref: 92063
(OPTION)
MAIN JET,#140
920631013
€ 9.00
92063A
920631014
ref: 92063A
(OPTION)
MAIN JET,#135
920631014
€ 9.50
92063B
920631015
ref: 92063B
MAIN JET,#138
920631015
€ 9.50
92063C
920631016
ref: 92063C
(OPTION)
MAIN JET,#142
920631016
€ 9.00
92063D
920631076
ref: 92063D
(OPTION)
JET-MAIN,#132
920631076
€ 9.50
220
220D0414
ref: 220
SCREW-PAN-CROS
220D0414
€ 2.00
223
223D0408
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
223A
223D0410
ref: 223A
SCREW-PAN-WS-CROS
223D0410
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
92064
920641177
ref: 92064
JET-PILOT,#45
920641177
€ 13.00
92064A
920641194
ref: 92064A
(OPTION)
JET-PILOT,#42
€ 13.50
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811092
ref: 92081
SPRING,DIAPHRAGM
920811092
€ 8.00
92093
920931046
ref: 92093
SEAL-"U"RING
920931046
€ 4.00
92143
921431790
ref: 92143
COLLAR
921431790
€ 1.50
92143A
921431791
ref: 92143A
COLLAR
921431791
€ 5.50
92143B
921431907
ref: 92143B
COLLAR
921431907
€ 6.00
92144
921441885
ref: 92144
SPRING
921441885
€ 7.50
92144A
921441886
ref: 92144A
SPRING
€ 6.00
92144B
921441947
ref: 92144B
SPRING,VACUUM
921441947
€ 14.50
92191
921911090
ref: 92191
[CN,US
TUBE,AIR VENT
921911090
€ 12.00
92191A
921911261
ref: 92191A
TUBE,FUEL
921911261
€ 7.00
92200
922001274
ref: 92200
WASHER
922001274
€ 1.50
92200A
922001275
ref: 92200A
WASHER
922001275
€ 1.50
