FUEL EVAPORATIVE SYSTEM (CA)

VN1500E6 VULCAN 1500 CLASSIC 2003 USA CALIFORNIA CANADA

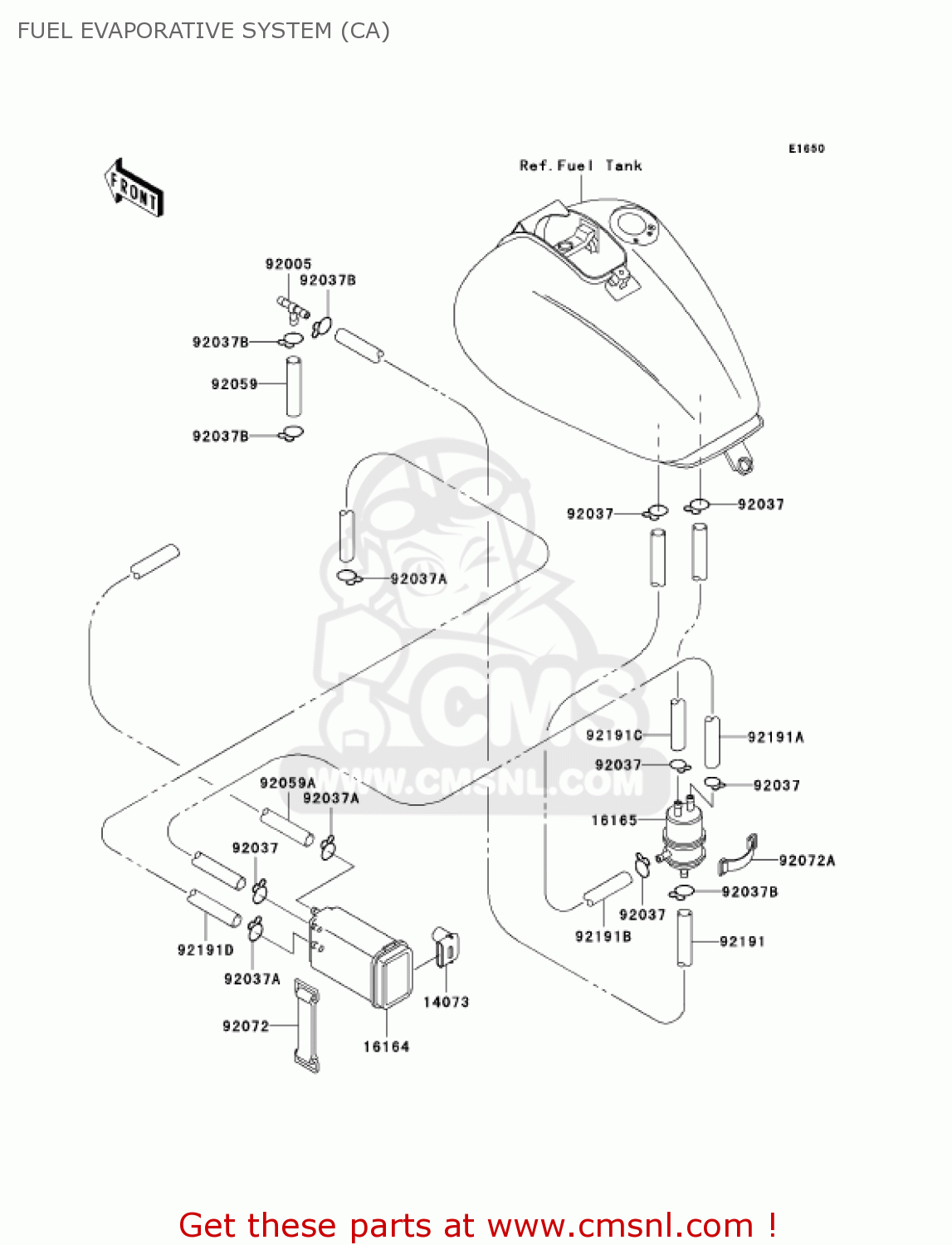

Fuel evaporative system (ca) diagram VN1500E6 VULCAN 1500 CLASSIC 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

14073

140731219
ref: 14073
[CA]

CANISTER DUCT

€ 10.00

16164

161641070
ref: 16164
[CA]

CANISTER

€ 125.50

16165

161651001
ref: 16165
[CA]

SEPARATOR

€ 69.50

92005

920051017
ref: 92005
[CA]

FITTING,TUBE

€ 6.50

92037

92037010
ref: 92037
[CA]

CLAMP-FUEL PIPE

€ 2.50

92037A

920371104
ref: 92037A
[CA]

CLAMP,HOSE

€ 1.00

92037B

920371712
ref: 92037B
[CA]

CLAMP

€ 3.00

92059

920591193
ref: 92059
[CA]

TUBE

€ 12.50

92059A

920591398
ref: 92059A
[CA]

TUBE,7X12X740

€ 28.00

92072

920721188
ref: 92072
[CA]

BAND

€ 9.50

92072A

920721419
ref: 92072A
[CA]

BAND,L=50

€ 11.00

92191

921911062
ref: 92191
[CA]

TUBE,WHITE

€ 12.50

92191A

921911070
ref: 92191A
[CA]

TUBE,5X8X232,BLUE

€ 6.50

92191B

921911120
ref: 92191B
[CA]

TANK-SEPARATOR TUBE,R

€ 6.50

92191C

921911121
ref: 92191C
[CA]

TANK-SEPARATOR TUBE,B

€ 19.50

92191D

921911267
ref: 92191D
[CA]

TUBE

€ 14.00

FUEL EVAPORATIVE SYSTEM (CA)

all assemblies
