FENDERS (VN1500-E5/E6)

VN1500E6 VULCAN 1500 CLASSIC 2003 USA CALIFORNIA CANADA

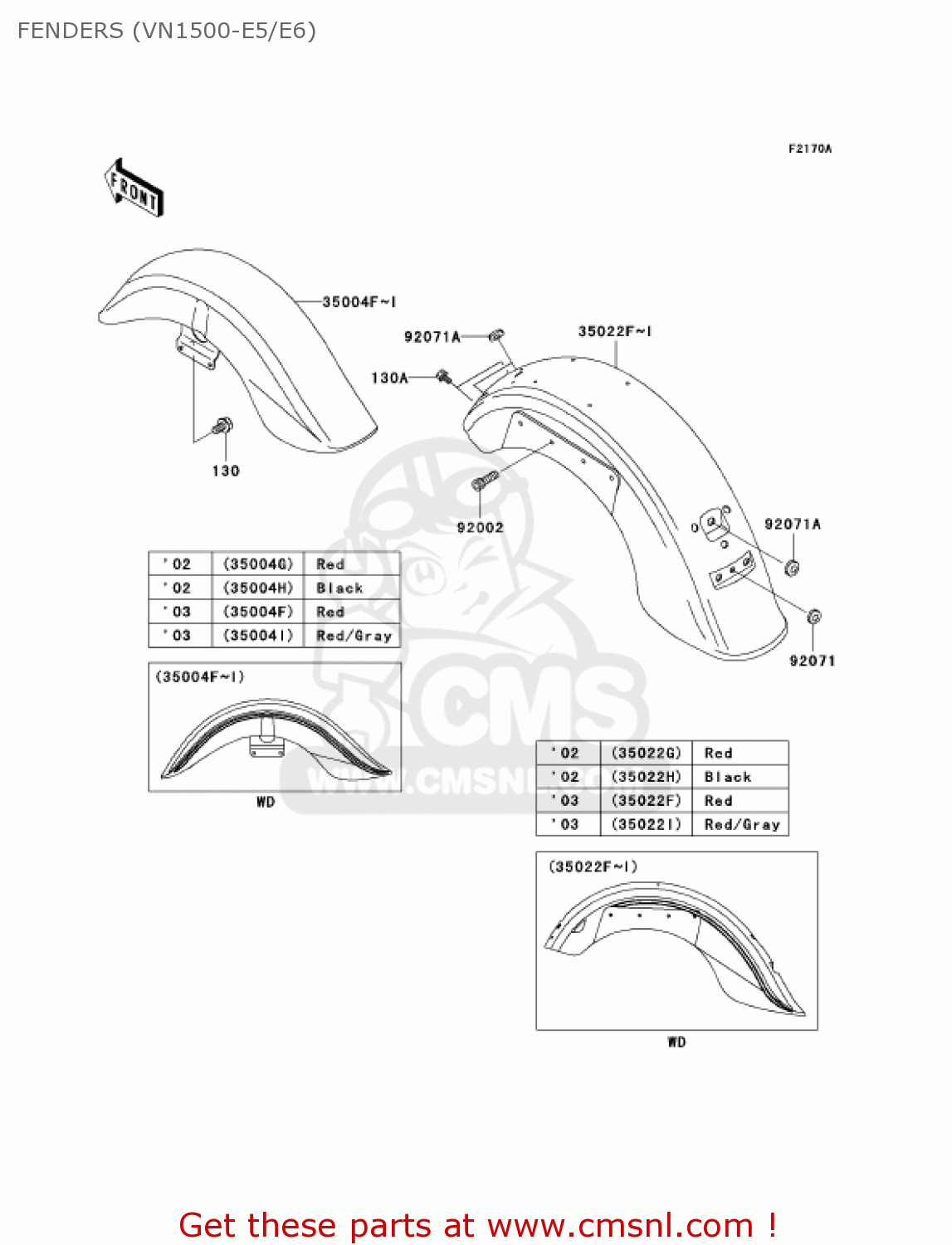

Fenders (vn1500-e5/e6) diagram VN1500E6 VULCAN 1500 CLASSIC 2003 USA CALIFORNIA CANADA

FENDERS (VN1500-E5/E6) VN1500E6 VULCAN 1500 CLASSIC 2003 USA CALIFORNIA CANADA

FENDERS (VN1500-E5/E6) VN1500E6 VULCAN 1500 CLASSIC 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

35004F

350045168ED
ref: 35004F

FENDER-FRONT,C.S.RED

€ 325.50

35004I

350045230C3
ref: 35004I

FENDER-FRONT,RED/GRAY

€ 423.50

35022F

350225025ED
ref: 35022F

FENDER-COMP-REAR,C.S.

€ 466.50

35022I

350225126C3
ref: 35022I

FENDER-COMP-REAR,RED/

€ 466.50

130

130J0814
ref: 130

BOLT-FLANGED,8X14

€ 2.50

130A

130J0816
ref: 130A

BOLT-FLANGED,8X16,BLA

€ 0.50

92002

920021442
ref: 92002

BOLT,SOCKET,8X25

€ 3.00

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

92071A

92071099
ref: 92071A

GROMMET, REAR FENDER

€ 3.00
