FRAME

VN1500E6 VULCAN 1500 CLASSIC 2003 USA CALIFORNIA CANADA

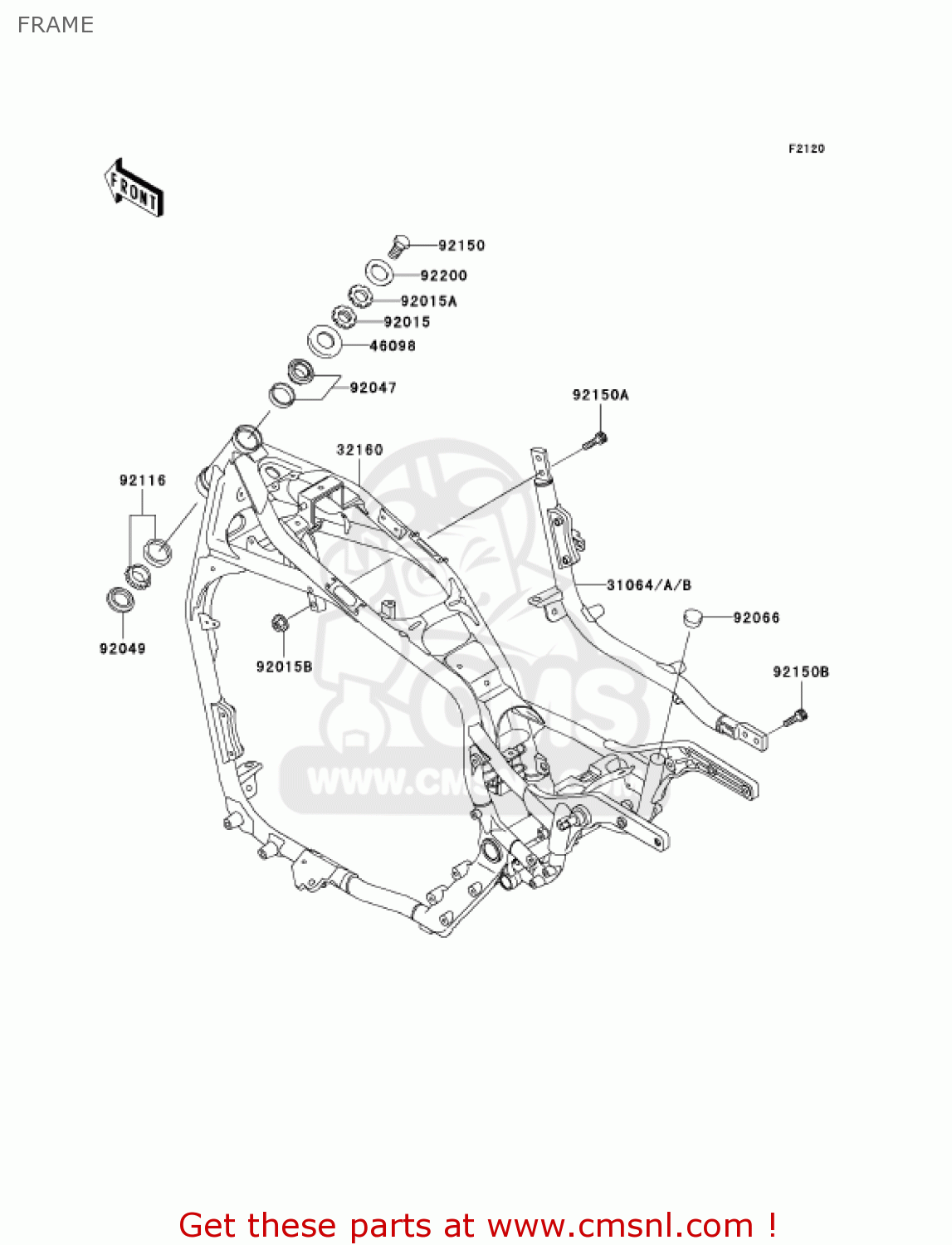

Frame diagram VN1500E6 VULCAN 1500 CLASSIC 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

31064B

310641237
ref: 31064B

PIPE-COMP,DOWNTUBE,LH

€ 473.50

32160

321601577
ref: 32160

FRAME,COMPLETE

€ 1,377.00

46098

46098017
ref: 46098

CAP,STEERING STEM

€ 4.00

92015

920151377
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151378
ref: 92015A

NUT,25MM,T=6

€ 14.50

92015B

920151727
ref: 92015B

NUT

€ 2.50

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92066

920661444
ref: 92066

PLUG

€ 3.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92150

921501672
ref: 92150

BOLT,14X25

€ 9.50

92150A

921501690
ref: 92150A

BOLT,SOCKET,10X30

€ 4.00

92150B

921501942
ref: 92150B

BOLT,SOCKET,10X23

€ 4.50

92200

922001140
ref: 92200

WASHER

€ 8.00
