FOOTRESTS

VN1500E2 VN1500 CLASSIC 1999 EUROPE UK FR NL GR IT NR SD SP

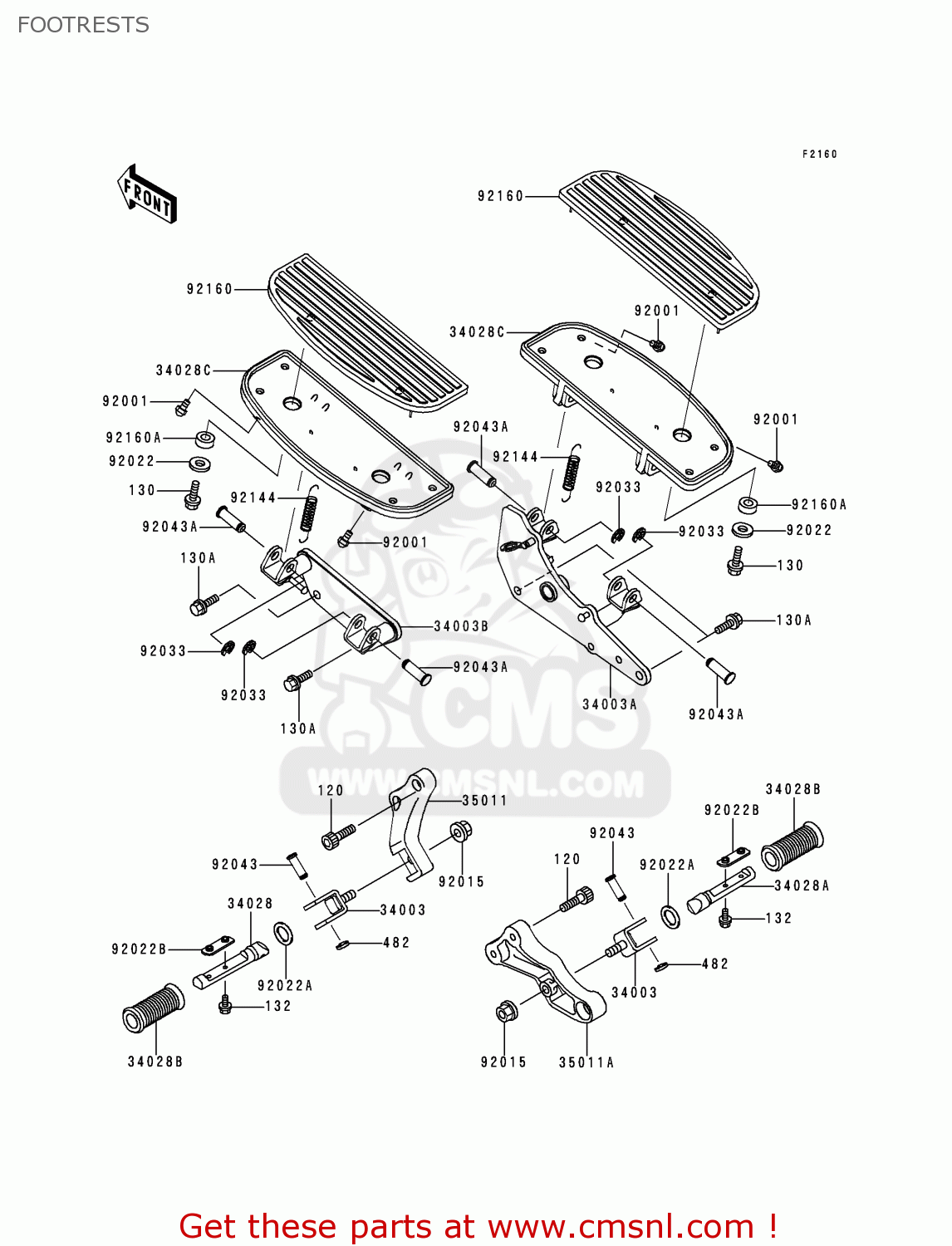

Footrests diagram VN1500E2 VN1500 CLASSIC 1999 EUROPE UK FR NL GR IT NR SD SP

FOOTRESTS VN1500E2 VN1500 CLASSIC 1999 EUROPE UK FR NL GR IT NR SD SP
FOOTRESTS VN1500E2 VN1500 CLASSIC 1999 EUROPE UK FR NL GR IT NR SD SP
FOOTRESTS VN1500E2 VN1500 CLASSIC 1999 EUROPE UK FR NL GR IT NR SD SP
prices are in EUR
ref
part #
description
quantity
120
120S0825
ref: 120
BOLT-SOCKET
120S0825
€ 3.00
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
130A
130J1030
ref: 130A
BOLT-FLANGED,10X30
€ 3.50
132
132J0510
ref: 132
BOLT-FLANGED-SMALL
132J0510
€ 2.00
482
482L7000
ref: 482
CIRCLIP-TYPE-E
482L7000
€ 2.50
34003
340031292
ref: 34003
HOLDER-STEP,RR
340031292
€ 22.00
34003A
340031449
ref: 34003A
HOLDER-STEP,FR,RH
340031449
€ 98.50
34003B
340031481
ref: 34003B
HOLDER-STEP,FR,LH
340031481
€ 83.50
34028
340281219
ref: 34028
STEP,RR,LH
340281219
€ 78.00
34028A
340281220
ref: 34028A
STEP,RR,RH
340281220
€ 84.00
34028B
340281221
ref: 34028B
STEP,RR,RUBBER
340281221
€ 10.00
34028C
340281417
ref: 34028C
STEP,FR
340281417
€ 106.50
35011
350111770
ref: 35011
STAY,REAR STEP,LH
350111770
€ 71.00
35011A
350111922
ref: 35011A
STAY,REAR STEP,RH
350111922
€ 77.50
92001
920011905
ref: 92001
BOLT,6X10
920011905
€ 3.50
92015
920151428
ref: 92015
NUT,FLANGED,10MM
920151428
€ 3.00
92022
920221392
ref: 92022
WASHER,7X28X1.6,BLACK
920221392
€ 3.00
92022A
920221568
ref: 92022A
WASHER,20X30X2.3
920221568
€ 2.50
92022B
920221874
ref: 92022B
WASHER,STEP
920221874
€ 4.00
92033
920331166
ref: 92033
RING-SNAP,10MM
920331166
€ 2.50
92043
920431339
ref: 92043
PIN
920431339
€ 5.00
92043A
920431358
ref: 92043A
PIN,12X37
920431358
€ 5.50
92144
921441266
ref: 92144
SPRING,BRAKE PEDAL RE
921441266
€ 5.50
92160
921601727
ref: 92160
DAMPER,FRONT STEP
€ 47.00
92160A
921601728
ref: 92160A
DAMPER
921601728
€ 2.50
