CHASSIS ELECTRICAL EQUIPMENT

VN1500E2 VN1500 CLASSIC 1999 EUROPE UK FR NL GR IT NR SD SP

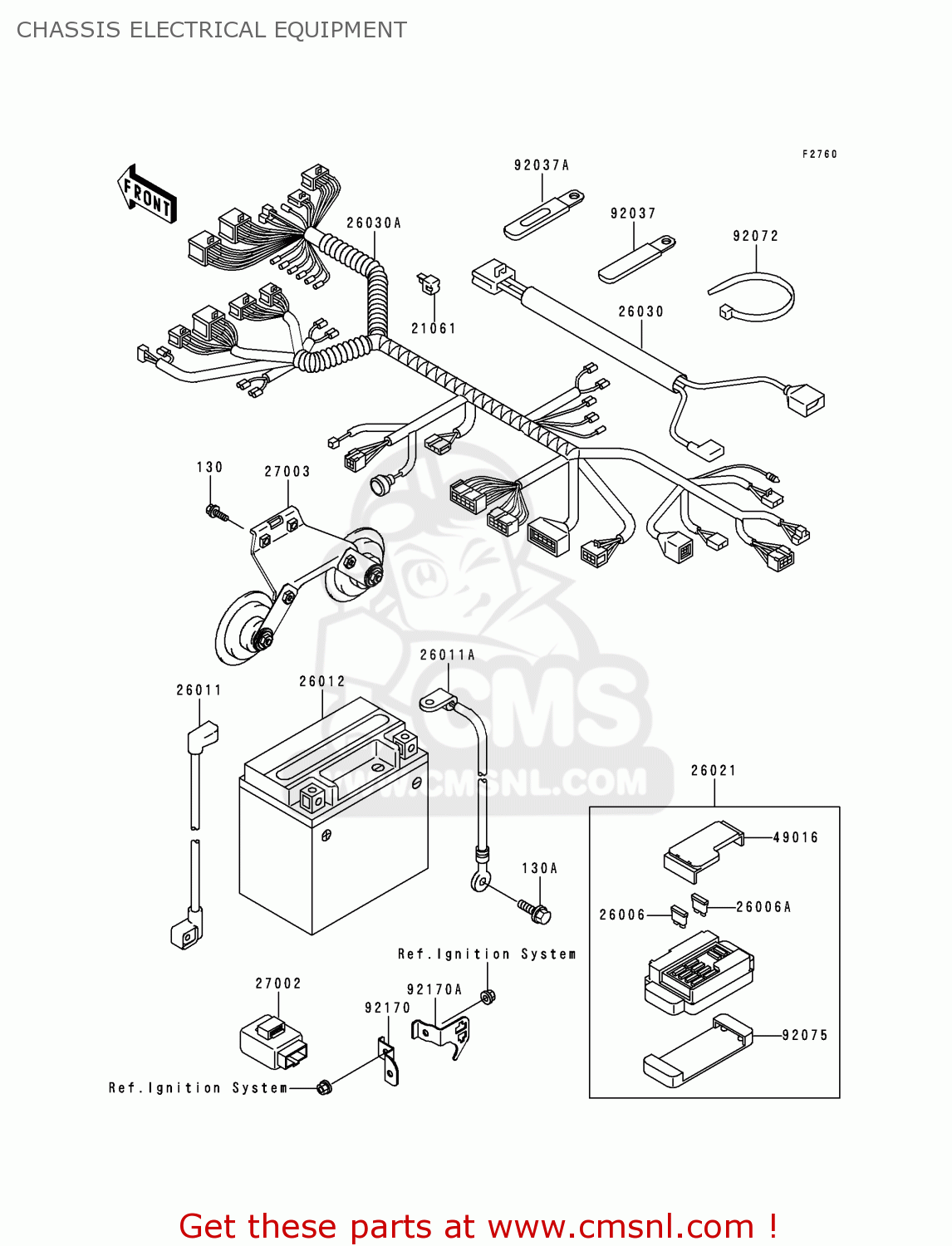

Chassis electrical equipment diagram VN1500E2 VN1500 CLASSIC 1999 EUROPE UK FR NL GR IT NR SD SP

prices are in EUR

ref

part #

description

quantity

130

130J0630
ref: 130

BOLT FLANGED,6X30,BLC

€ 2.50

130A

130V0610
ref: 130A

BOLT-FLANGED,6X10

€ 0.50

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111663
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 38.00

26011A

260111712
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 24.50

26012

260121368
ref: 26012

BATTERY,MF,FTH16-BS,1

€ 165.50

26021

260211090
ref: 26021

JUNCTION BOX

€ 140.50

26030

260301450
ref: 26030

HARNESS,SUB

€ 14.00

26030A

260301606
ref: 26030A

HARNESS,MAIN

€ 244.00

27002

270021110
ref: 27002

RELAY-ASSY,SIGNAL LAM

€ 95.50

27003

270031406
ref: 27003

HORN

€ 106.50

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371539
ref: 92037

CLAMP,L=45

€ 3.00

92037A

920371780
ref: 92037A

CLAMP

€ 4.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

92170

921701699
ref: 92170

CLAMP,IGNITION SWITCH

€ 4.50

92170A

921701700
ref: 92170A

CLAMP,RR BRAKE SWITCH

€ 4.00
