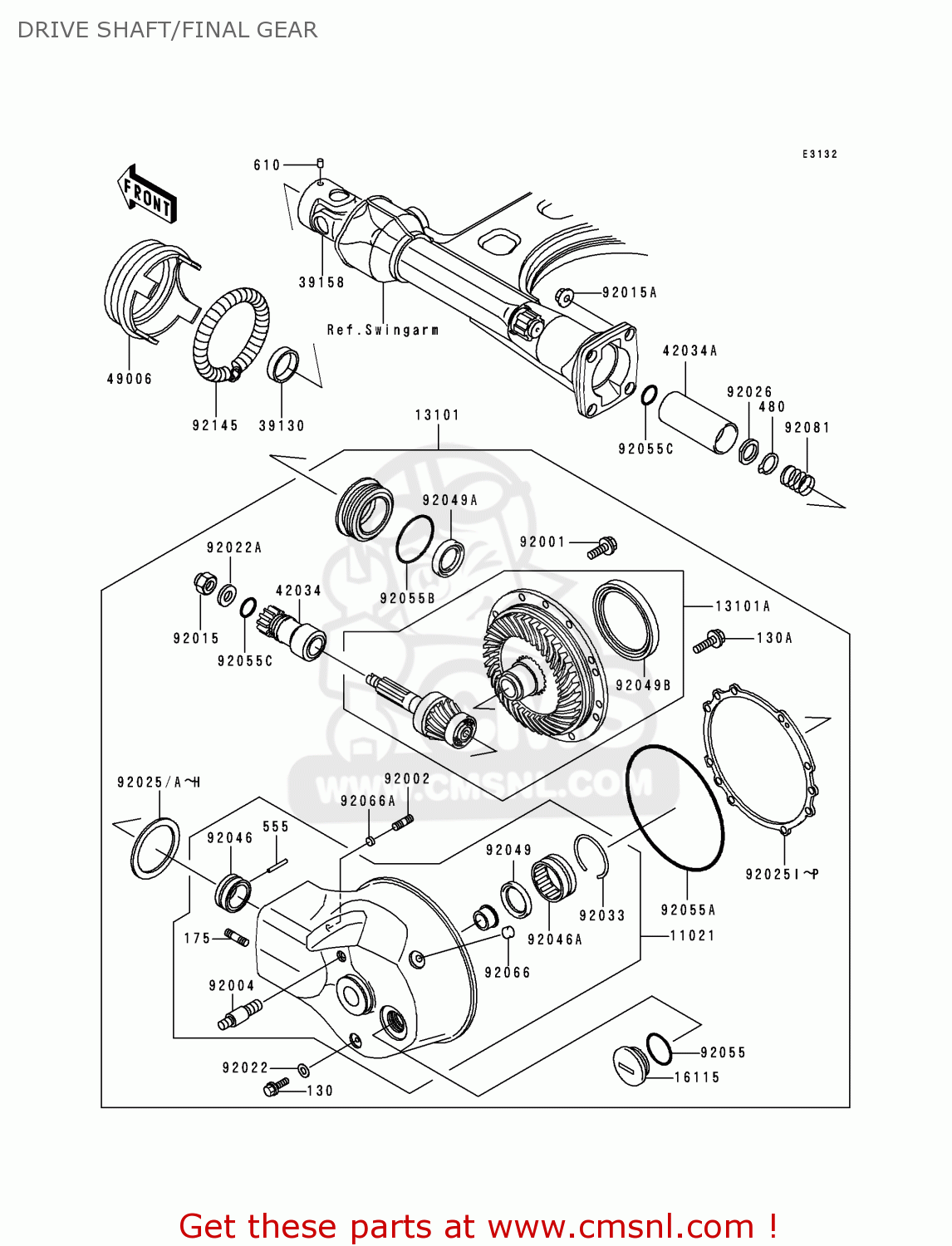

DRIVE SHAFT/FINAL GEAR

ref

part #

description

quantity

11021

110211116
ref: 11021

CASE-ASSY,FINAL GEAR

€ 1,445.00

13101

131011242
ref: 13101

GEAR-ASSY,FINAL

€ 3,604.50

13101A

131015072
ref: 13101A

GEAR-ASSY,BEVEL,RR

€ 1,671.00

16115

161151056
ref: 16115

CAP-OIL FILLER

€ 19.50

39130

391301002
ref: 39130

SPRING,LEAF

€ 3.00

39158

391581062
ref: 39158

SHAFT-ASSY-DRIVE

€ 464.50

42034

420341085
ref: 42034

COUPLING

€ 58.50

42034A

420341092
ref: 42034A

COUPLING,PROPELLER SH

€ 78.00

49006

490061226
ref: 49006

BOOT,DRIVE SHAFT

€ 19.00

92001

920011778
ref: 92001

BOLT,FLANGED,10X23

€ 3.50

92002

920021836
ref: 92002

BOLT

€ 2.50

92004

920041047
ref: 92004

STUD,RR SHOCKABSORBER

€ 10.00

92015

920151059
ref: 92015

NUT,16MM

€ 7.50

92015A

920151649
ref: 92015A

NUT,10MM

€ 3.50

92022

920221086
ref: 92022

WASHER,8.2X16X1

€ 2.50

92022A

920221105
ref: 92022A

WASHER,16X32X3.2

€ 7.00

92025

920251733
ref: 92025

SHIM,T=0.10

€ 14.00

92025A

920251734
ref: 92025A

SHIM,T=0.15

€ 10.50

92025B

920251735
ref: 92025B

SHIM,T=0.50

€ 8.50

92025C

920251736
ref: 92025C

SHIM,T=0.60

€ 6.00

92025D

920251737
ref: 92025D

SHIM,T=0.70

€ 7.50

92025E

920251738
ref: 92025E

SHIM,T=0.80

€ 6.00

92025F

920251739
ref: 92025F

SHIM,T=0.90

€ 6.00

92025G

920251740
ref: 92025G

SHIM,T=1.00

€ 6.00

92025H

920251741
ref: 92025H

SHIM,T=1.20

€ 6.00

92025I

920251783
ref: 92025I

SHIM,T=0.15

€ 8.00

92025J

920251784
ref: 92025J

SHIM,T=0.50

€ 7.00

92025K

920251785
ref: 92025K

SHIM,T=0.60

€ 7.00

92025L

920251786
ref: 92025L

SHIM,T=0.70

€ 7.00

92025M

920251787
ref: 92025M

SHIM,T=0.80

€ 9.50

92025N

920251788
ref: 92025N

SHIM,T=0.90

€ 9.50

92025O

920251789
ref: 92025O

SHIM,T=1.00

€ 9.50

92025P

920251790
ref: 92025P

SHIM,T=1.20

€ 10.00

92026

920261085
ref: 92026

SPACER,26.2X36X2

€ 5.00

92033

920331074
ref: 92033

RING-SNAP,52MM

€ 3.00

92046

920461168
ref: 92046

BEARING-NEEDLE,RNA490

€ 50.00

92046A

920461169
ref: 92046A

BEARING-NEEDLE,38NQ50

€ 60.50

92049

920491025
ref: 92049

OIL SEAL,S-35477HS

€ 10.00

92049A

920491248
ref: 92049A

SEAL-OIL

€ 15.50

92049B

920491280
ref: 92049B

SEAL-OIL

€ 22.50

130

130N0812
ref: 130

BOLT-FLANGED

€ 3.00

130A

130Y0825
ref: 130A

BOLT-FLANGED

€ 2.50

175

175G1025
ref: 175

BOLT-STUD-FINE

€ 4.00

480

480J2600
ref: 480

CIRCLIP-TYPE-C,26MM

€ 1.50

555

555A0428
ref: 555

PIN-SPRING

€ 1.00

610

610A0406
ref: 610

ROLLER,4X6

€ 2.50

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92055A

920551165
ref: 92055A

RING-O,154X3

€ 7.50

92055B

920551327
ref: 92055B

RING-O,67.6X3.5

€ 4.00

92055C

920551556
ref: 92055C

RING-O,32.7X3.5

€ 5.00

92066

920661110
ref: 92066

PLUG

€ 4.00

92066A

920661272
ref: 92066A

PLUG

€ 2.00

92081

920811183
ref: 92081

SPRING,PROPELLER SHFT

€ 4.00

92145

921451162
ref: 92145

SPRING,BOOT

€ 7.50

all assemblies
