SEAT

VN1500E1 VULCAN 1500 CLASSIC 1998 USA CALIFORNIA CANADA

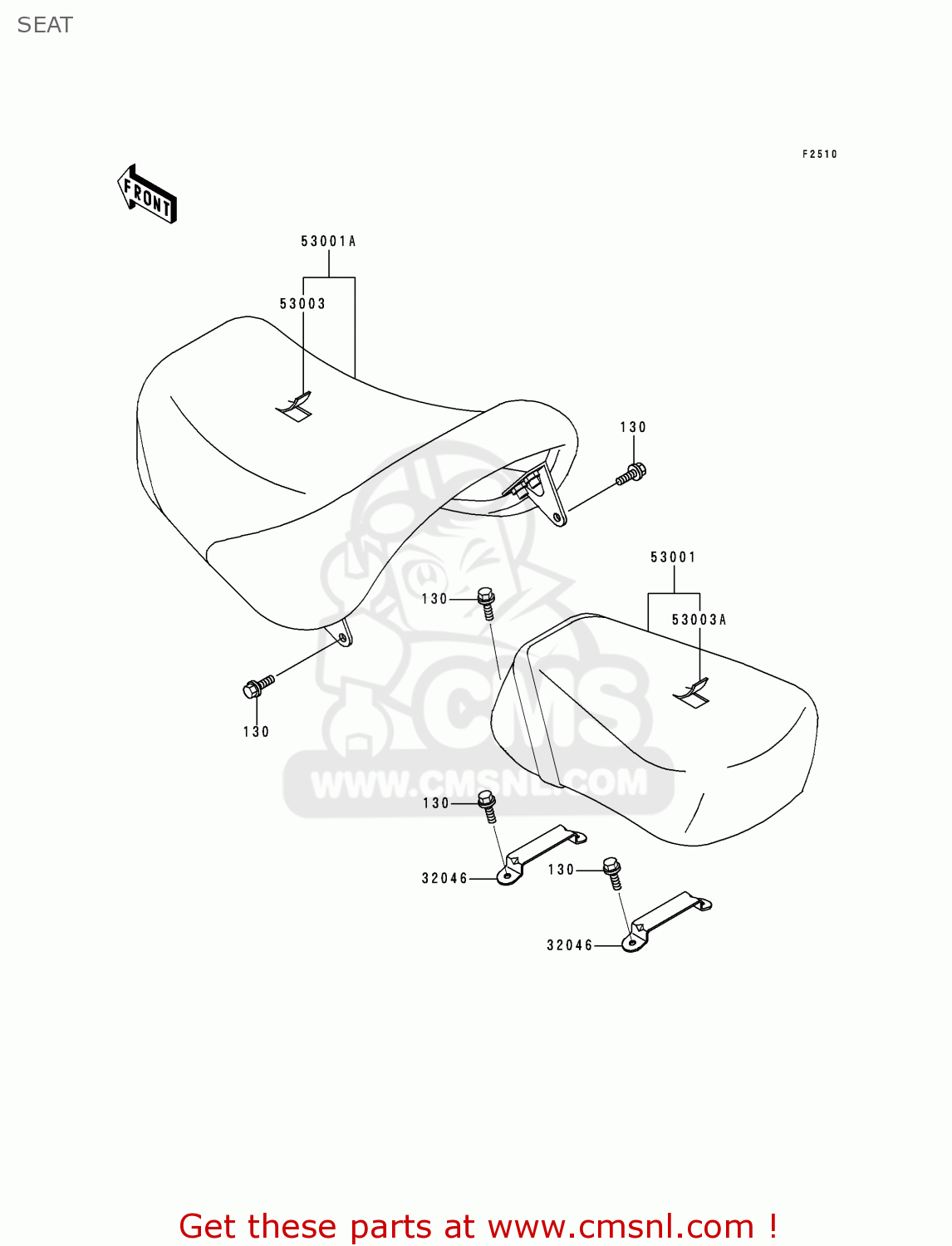

Seat diagram VN1500E1 VULCAN 1500 CLASSIC 1998 USA CALIFORNIA CANADA

SEAT VN1500E1 VULCAN 1500 CLASSIC 1998 USA CALIFORNIA CANADA

SEAT VN1500E1 VULCAN 1500 CLASSIC 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

32046

320461412
ref: 32046

BRACKET-SEAT,RR

€ 8.50

53001

530011841MA
ref: 53001

SEAT-ASSY,RR,W/BAND,B

€ 407.00

53001A

530011872MA
ref: 53001A

SEAT-ASSY,FR,BLACK

€ 643.50

53003

530031388MA
ref: 53003

LEATHER,FRONT SAET,BL

€ 190.50

53003A

530031389MA
ref: 53003A

LEATHER,REAR SEAT,BLA

€ 154.50
