CYLINDER HEAD

VN1500E1 VULCAN 1500 CLASSIC 1998 USA CALIFORNIA CANADA

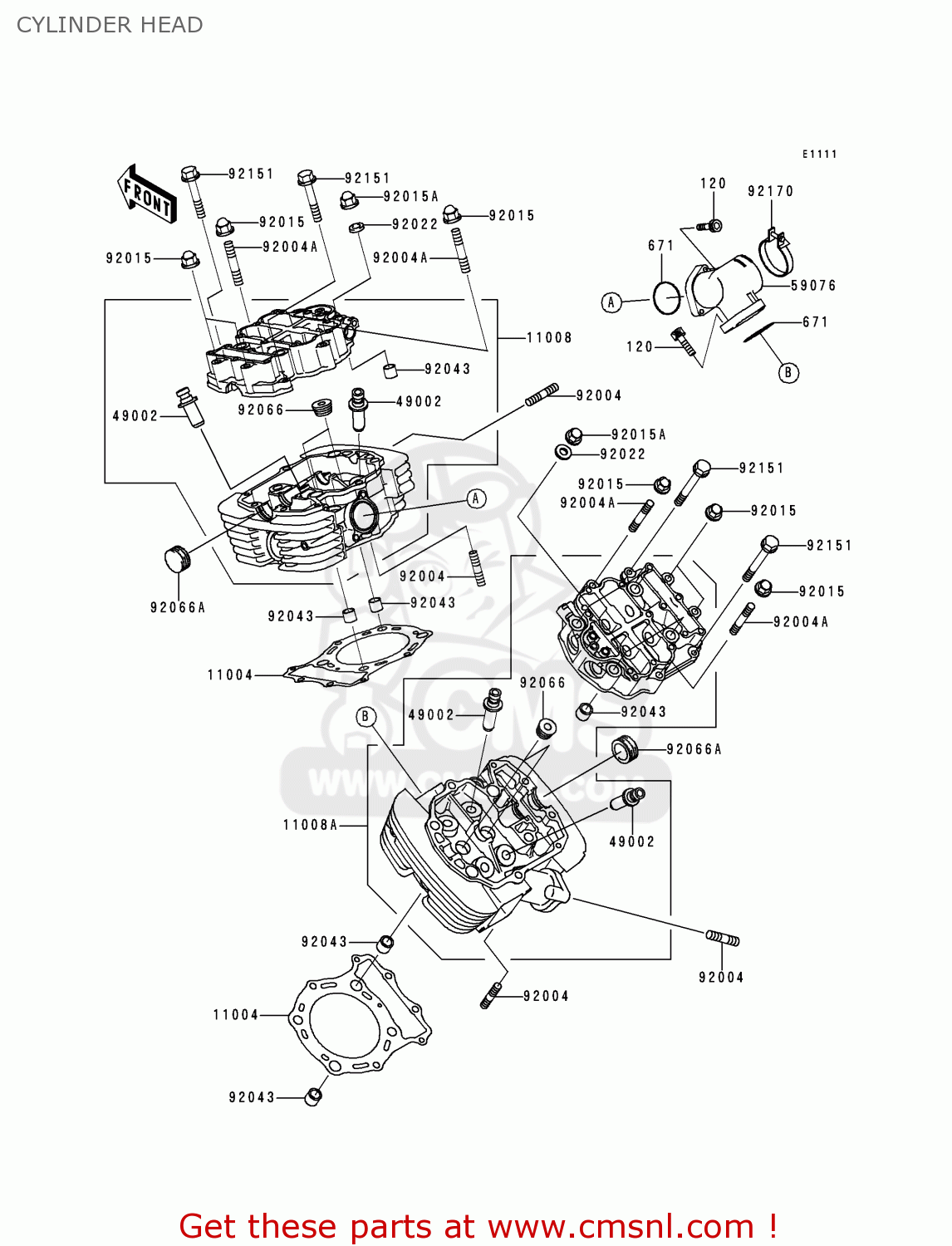

Cylinder head diagram VN1500E1 VULCAN 1500 CLASSIC 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120Z0620
ref: 120

BOLT-SOCKET,6X20

€ 3.00

671

671E2540
ref: 671

O RING

€ 9.50

11004

110041334
ref: 11004

GASKET-HEAD (NAS)

€ 34.00

11008

110081338
ref: 11008

HEAD-COMP-CYLINDER,FR

€ 1,180.00

11008A

110081339
ref: 11008A

HEAD-COMP-CYLINDER,RR

€ 1,180.00

49002

490021088
ref: 49002

GUIDE-VALVE

€ 20.50

59076

590761105
ref: 59076

MANIFOLD-INTAKE

€ 53.00

92004

920041214
ref: 92004

STUD

€ 3.50

92004A

920041224
ref: 92004A

STUD,8X46.5

€ 6.50

92015

920151406
ref: 92015

NUT,8MM

€ 3.00

92015A

920151991
ref: 92015A

NUT,12MM

€ 3.50

92022

920221862
ref: 92022

WASHER,12.3X25X3.2

€ 4.00

92043

920431349
ref: 92043

PIN,DOWEL,13X16X14

€ 3.00

92066

920661253
ref: 92066

PLUG,PT1/2X12.5

€ 6.50

92066A

920661442
ref: 92066A

PLUG

€ 6.50

92151

921511058
ref: 92151

BOLT,6X115

€ 3.00

92170

921701644
ref: 92170

CLAMP

€ 7.50
