MUFFLER(S)

VN1500E1 VULCAN 1500 CLASSIC 1998 USA CALIFORNIA CANADA

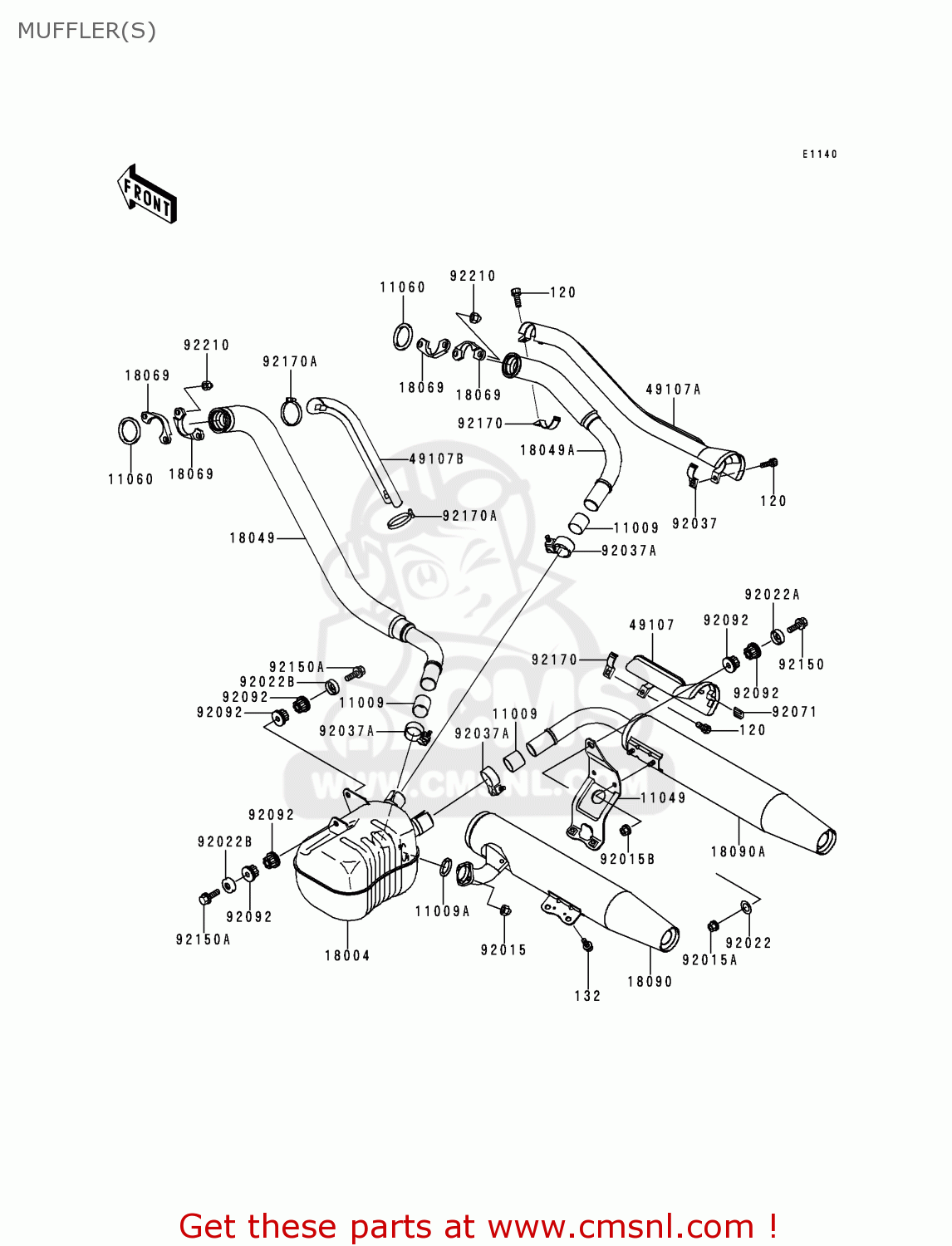

Muffler(s) diagram VN1500E1 VULCAN 1500 CLASSIC 1998 USA CALIFORNIA CANADA

MUFFLER(S) VN1500E1 VULCAN 1500 CLASSIC 1998 USA CALIFORNIA CANADA
MUFFLER(S) VN1500E1 VULCAN 1500 CLASSIC 1998 USA CALIFORNIA CANADA
MUFFLER(S) VN1500E1 VULCAN 1500 CLASSIC 1998 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120Z0620
ref: 120
BOLT-SOCKET,6X20
120Z0620
€ 3.00
132
132E0814
ref: 132
BOLT-FLANGED-SMALL
132E0814
€ 2.50
11009
110091865
ref: 11009
GASKET,MUFFLER CONNEC (NAS)
110091865
€ 19.50
11009A
110091894
ref: 11009A
GASKET,EXHAUST HOLDER (NAS)
110091894
€ 5.00
11049
110491540
ref: 11049
BRACKET,MUFFLER
€ 22.50
11060
110601119
ref: 11060
GASKET,EXHAUST PIPE (NAS)
110601119
€ 9.00
18004
180041075
ref: 18004
CHAMBER-PREMUFFLER
€ 709.50
18049
180491887
ref: 18049
PIPE-EXHAUST,FR
180491887
€ 372.00
18049A
180491888
ref: 18049A
PIPE-EXHAUST,RR
180491888
€ 177.00
18069
180691138
ref: 18069
HOLDER-EXHAUST PIPE
€ 27.00
18090
180901652
ref: 18090
BODY-COMP-MUFFLER,FR,
€ 461.50
18090A
180901653
ref: 18090A
BODY-COMP-MUFFLER,RR,
180901653
€ 514.50
49107
491071103
ref: 49107
COVER-EXHAUST PIPE,MU
491071103
€ 114.00
49107A
491071104
ref: 49107A
COVER-EXHAUST PIPE,RR
€ 192.00
49107B
491071115
ref: 49107B
COVER-EXHAUST PIPE
491071115
€ 130.50
92015
920151402
ref: 92015
NUT,8MM
920151402
€ 3.00
92015A
920151649
ref: 92015A
NUT,10MM
920151649
€ 3.50
92015B
920151936
ref: 92015B
NUT,8MM
920151936
€ 3.00
92022
92022044
ref: 92022
WASHER,10.5X26X2.3
92022044
€ 2.50
92022A
920221270
ref: 92022A
WASHER,CUP TYPE
920221270
€ 9.00
92022B
920221302
ref: 92022B
WASHER,10.5X30X2.3,BL
920221302
€ 4.50
92037
920371613
ref: 92037
CLAMP,EXHAUST PIPE CO
920371613
€ 9.50
92037A
920371792
ref: 92037A
CLAMP,39.5MM
920371792
€ 10.00
92071
920711226
ref: 92071
GROMMET
920711226
€ 4.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
920921013
€ 11.50
92150
921501227
ref: 92150
BOLT
921501227
€ 5.50
92150A
921501749
ref: 92150A
BOLT,10X55
921501749
€ 4.50
92170
921701645
ref: 92170
CLAMP
921701645
€ 5.50
92170A
921701710
ref: 92170A
CLAMP
921701710
€ 8.00
92210
922101132
ref: 92210
NUT,CAP,8MM
922101132
€ 2.50
