IGNITION SWITCH

VN1500E1 VN1500 CLASSIC 1998 EUROPE UK FR NL GR IT NR SD SP

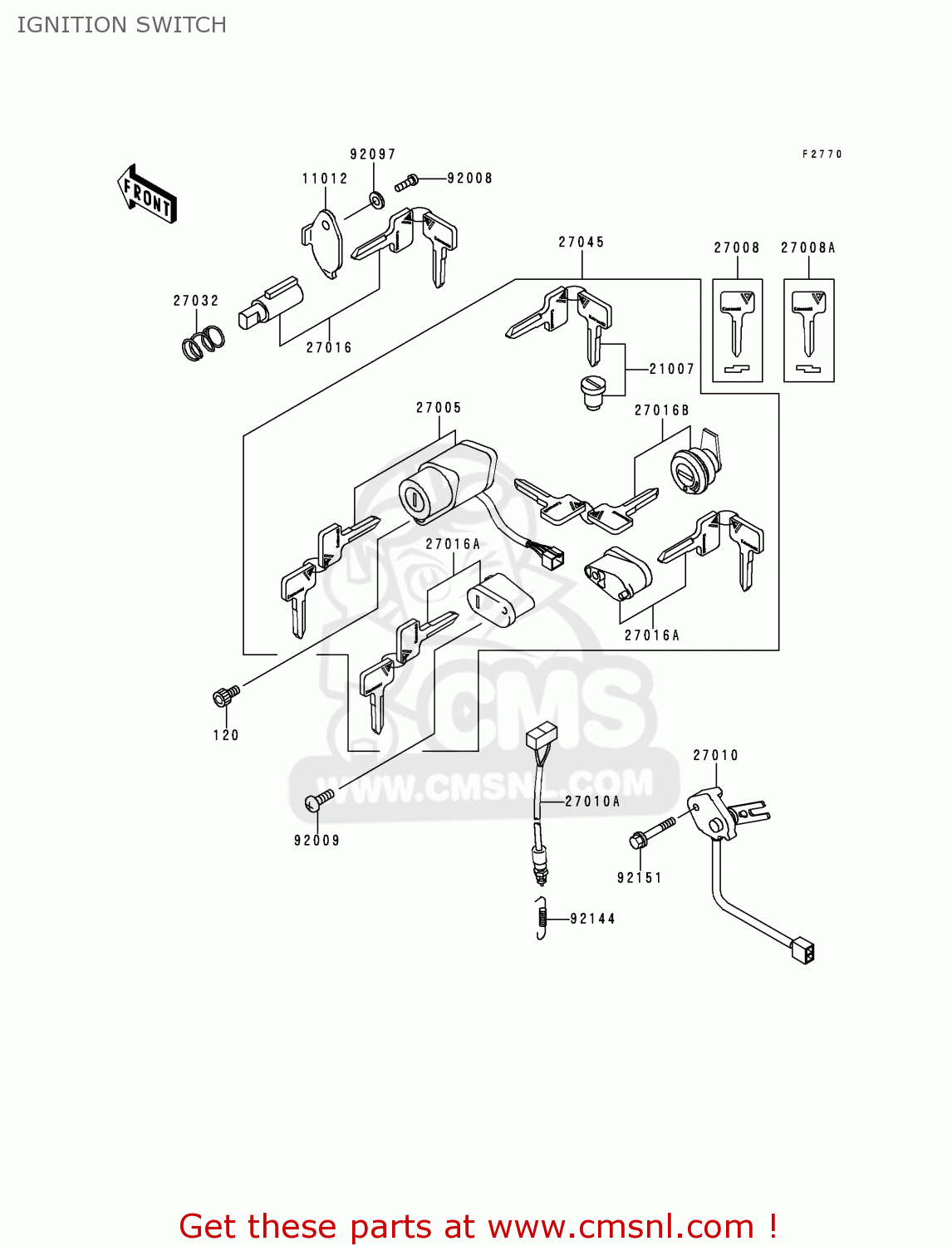

Ignition switch diagram VN1500E1 VN1500 CLASSIC 1998 EUROPE UK FR NL GR IT NR SD SP

prices are in EUR

ref

part #

description

quantity

120

120P0512
ref: 120

BOLT,ALLEN,5X12

€ 1.00

11012

110121134
ref: 11012

CAP,STEERING LOCK

€ 4.50

21007

210075024
ref: 21007

ROTOR,LOCK,TANK CAP

€ 50.50

27005

270051209
ref: 27005

SWITCH-ASSY-IGNITION

€ 238.00

27008

270081138
ref: 27008

KEY-LOCK,BLANK

€ 13.00

27008A

270081139
ref: 27008A

KEY-LOCK,BLANK

€ 13.00

27010

270101359
ref: 27010

SWITCH,SIDE STAND

€ 54.00

27010A

270101370
ref: 27010A

SWITCH,REAR BRAKE

€ 25.50

27016

270161005
ref: 27016

LOCK-ASSY,STEERING

€ 65.00

27016A

270165129
ref: 27016A

LOCK-ASSY,HELMET

€ 58.00

27016B

270165232
ref: 27016B

LOCK-ASSY,PAD

€ 54.00

27032

27032001
ref: 27032

SPRING-STEERING LOCK

€ 3.50

27045

270455048
ref: 27045

SWITCH-ASSY

€ 340.00

92008

92008007
ref: 92008

SCREW-TAPPING

€ 2.50

92009

920091296
ref: 92009

SCREW,5X12

€ 2.50

92097

92097003
ref: 92097

WASHER

€ 2.50

92144

921441141
ref: 92144

SPRING,REAR BRAKE SWI

€ 3.50

92151

921511095
ref: 92151

BOLT,FLANGED,6X35

€ 2.00
