FRONT HUB

VN1500E1 VN1500 CLASSIC 1998 EUROPE UK FR NL GR IT NR SD SP

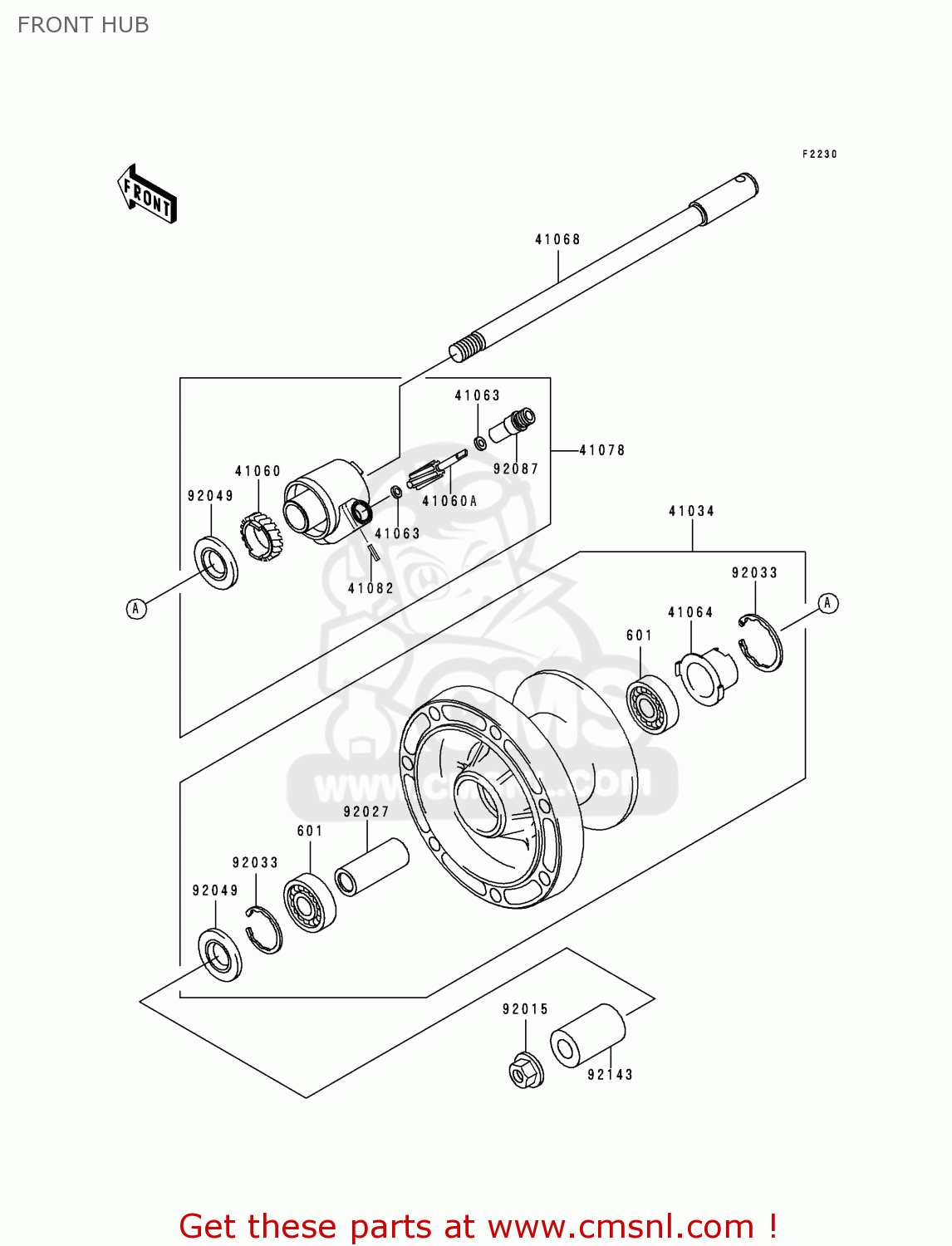

Front hub diagram VN1500E1 VN1500 CLASSIC 1998 EUROPE UK FR NL GR IT NR SD SP

prices are in EUR

ref

part #

description

quantity

601

601B6004UU
ref: 601

BEARING-BALL,#6004UUC

€ 27.00

41034

410341259
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 577.00

41060

410601160
ref: 41060

GEAR-METER SCREW,25T

€ 17.50

41060A

410601161
ref: 41060A

GEAR-METER SCREW,9T

€ 17.50

41063

41063001
ref: 41063

WASHER-THRST SPD PINI

€ 3.00

41064

410641056
ref: 41064

RECEIVER-SPEEDOMETER

€ 16.00

41068

410681378
ref: 41068

AXLE,FR

€ 61.50

41078

410781103
ref: 41078

CASE-ASSY-METER GEAR

€ 117.00

41082

41082001
ref: 41082

PIN-SPRING

€ 2.50

92015

920151993
ref: 92015

NUT,FLANGED,18MM

€ 6.50

92027

920271752
ref: 92027

COLLAR,20.2X28X70

€ 13.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92087

920871056
ref: 92087

BUSHING-METER GEAR

€ 14.00

92143

921431837
ref: 92143

COLLAR,FR AXLE,LH,L=4

€ 21.50

FRONT HUB

all assemblies
