FRONT MASTER CYLINDER

VN1500E1 VN1500 CLASSIC 1998 EUROPE UK FR NL GR IT NR SD SP

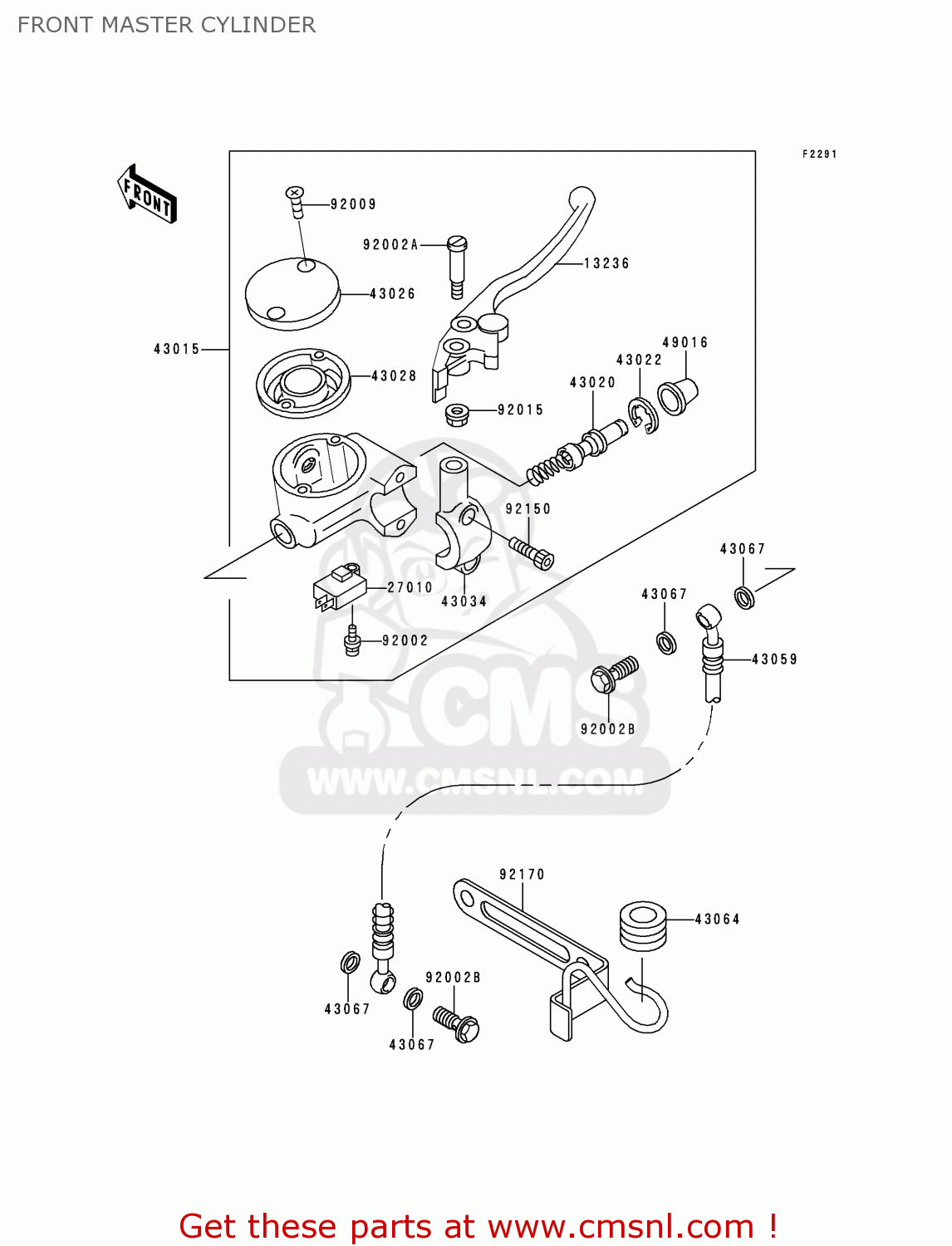

Front master cylinder diagram VN1500E1 VN1500 CLASSIC 1998 EUROPE UK FR NL GR IT NR SD SP

prices are in EUR

ref

part #

description

quantity

13236

132361287
ref: 13236

LEVER-COMP,FRONT BRAK

€ 38.50

27010

270101170
ref: 27010

SWITCH,BRAKE

€ 26.00

43015

430151623
ref: 43015

CYLINDER-ASSY-MASTER,

€ 282.50

43020

430201098
ref: 43020

PISTON-COMP-BRAKE

€ 38.50

43022

430221010
ref: 43022

STOPPER-BRAKE,PISTON

€ 3.00

43026

430261083
ref: 43026

CAP-BRAKE

€ 50.00

43028

430281071
ref: 43028

DIAPHRAGM,MASTER CYLI

€ 15.50

43034

430341147
ref: 43034

HOLDER-BRAKE

€ 31.00

43059

430591952
ref: 43059

HOSE-BRAKE,FR

€ 142.50

43064

43064006
ref: 43064

GROMMET,BRAKE HOSE

€ 2.50

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

49016

490161044
ref: 49016

COVER-SEAL,MASTER CYL

€ 7.00

92002

920021323
ref: 92002

BOLT

€ 2.50

92002A

920021561
ref: 92002A

BOLT,LEVER SET

€ 8.00

92002B

920021888
ref: 92002B

BOLT,OIL,L=23

€ 3.50

92009

920091440
ref: 92009

SCREW

€ 2.50

92015

920151528
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92150

921501025
ref: 92150

BOLT,SOCKET,6MM

€ 4.50

92170

921701653
ref: 92170

CLAMP,HOSE

€ 17.00

FRONT MASTER CYLINDER
