GEAR CHANGE MECHANISM

VN1500D2 VN1500 CLASSIC 1997 EURO UK FR NL AR FG GR IT NR SD ST

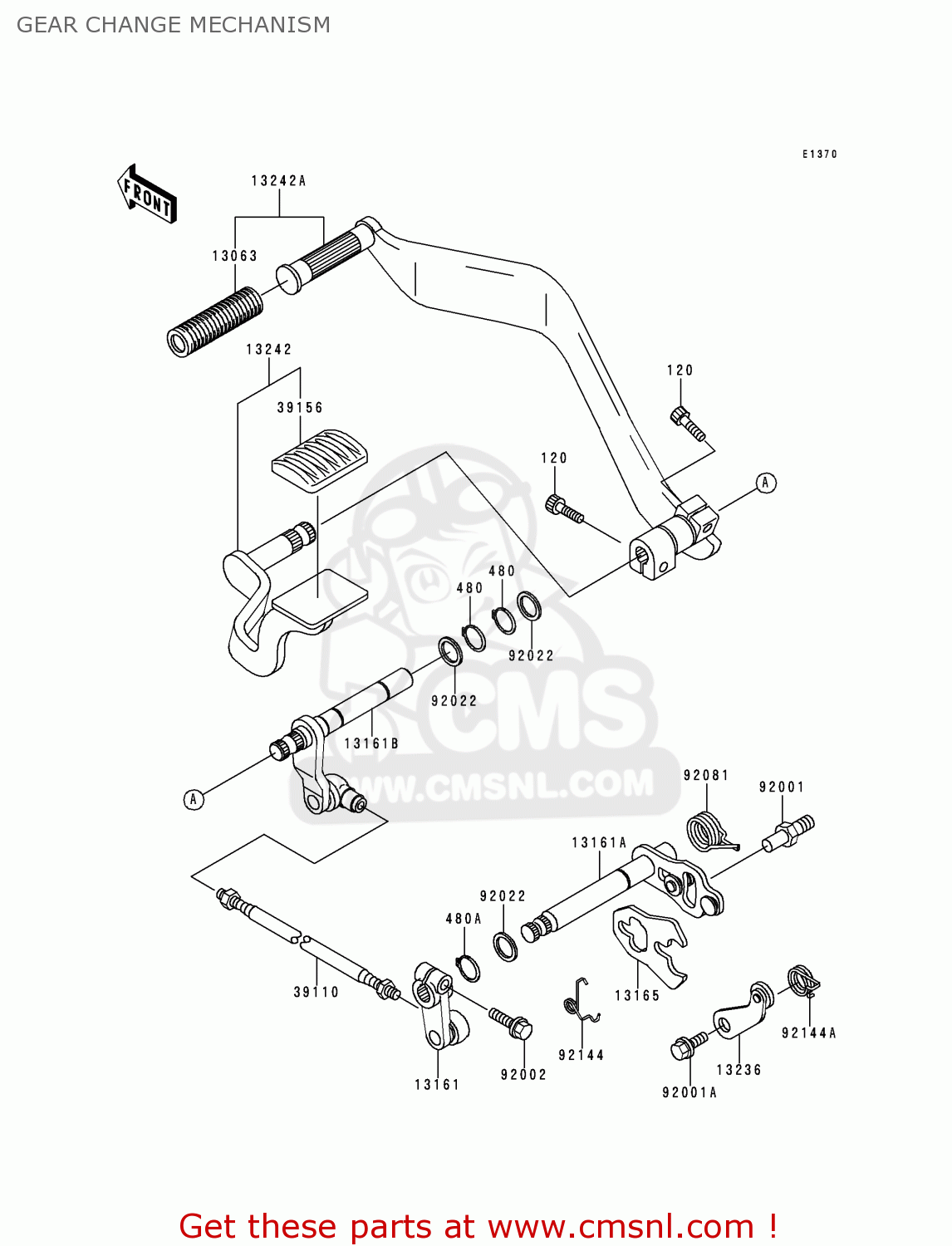

Gear change mechanism diagram VN1500D2 VN1500 CLASSIC 1997 EURO UK FR NL AR FG GR IT NR SD ST

prices are in EUR

ref

part #

description

quantity

120

120Z0620
ref: 120

BOLT-SOCKET,6X20

€ 3.00

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

480A

480J1300
ref: 480A

CIRCLIP-TYPE-C,13MM

€ 2.50

13063

13063002
ref: 13063

RUBBER-KICK PEDAL

€ 3.00

13161

131611142
ref: 13161

LEVER-COMP-CHANGE SHA

€ 63.00

13161A

131611150
ref: 13161A

LEVER-COMP-CHANGE SHA

€ 48.00

13161B

131611241
ref: 13161B

LEVER-COMP-CHANGE SHA

€ 68.00

13165

131651120
ref: 13165

PAWL

€ 9.50

13236

132361126
ref: 13236

LEVER-COMP,POSITION

€ 9.00

13242

132421341
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 39.50

13242A

132421343
ref: 13242A

LEVER-ASSY-CHANGE,PED

€ 73.00

39110

391101073
ref: 39110

ROD-ASSY-TIE

€ 7.00

39156

391561071
ref: 39156

PAD,BRAKE PEDAL

€ 7.50

92001

920011455
ref: 92001

BOLT

€ 3.00

92001A

920011715
ref: 92001A

BOLT

€ 7.00

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92022

920221224
ref: 92022

WASHER,13.2X20X0.5

€ 2.50

92081

920811869
ref: 92081

SPRING,CHANGE PEDAL R

€ 7.00

92144

921441029
ref: 92144

SPRING

€ 5.00

92144A

921441140
ref: 92144A

SPRING,RETURN

€ 5.50
