Genuine VN Kawasaki Parts delivered quickly!


CAMSHAFT(S)/TENSIONER

VN1500D2 VN1500 CLASSIC 1997 EURO UK FR NL AR FG GR IT NR SD ST

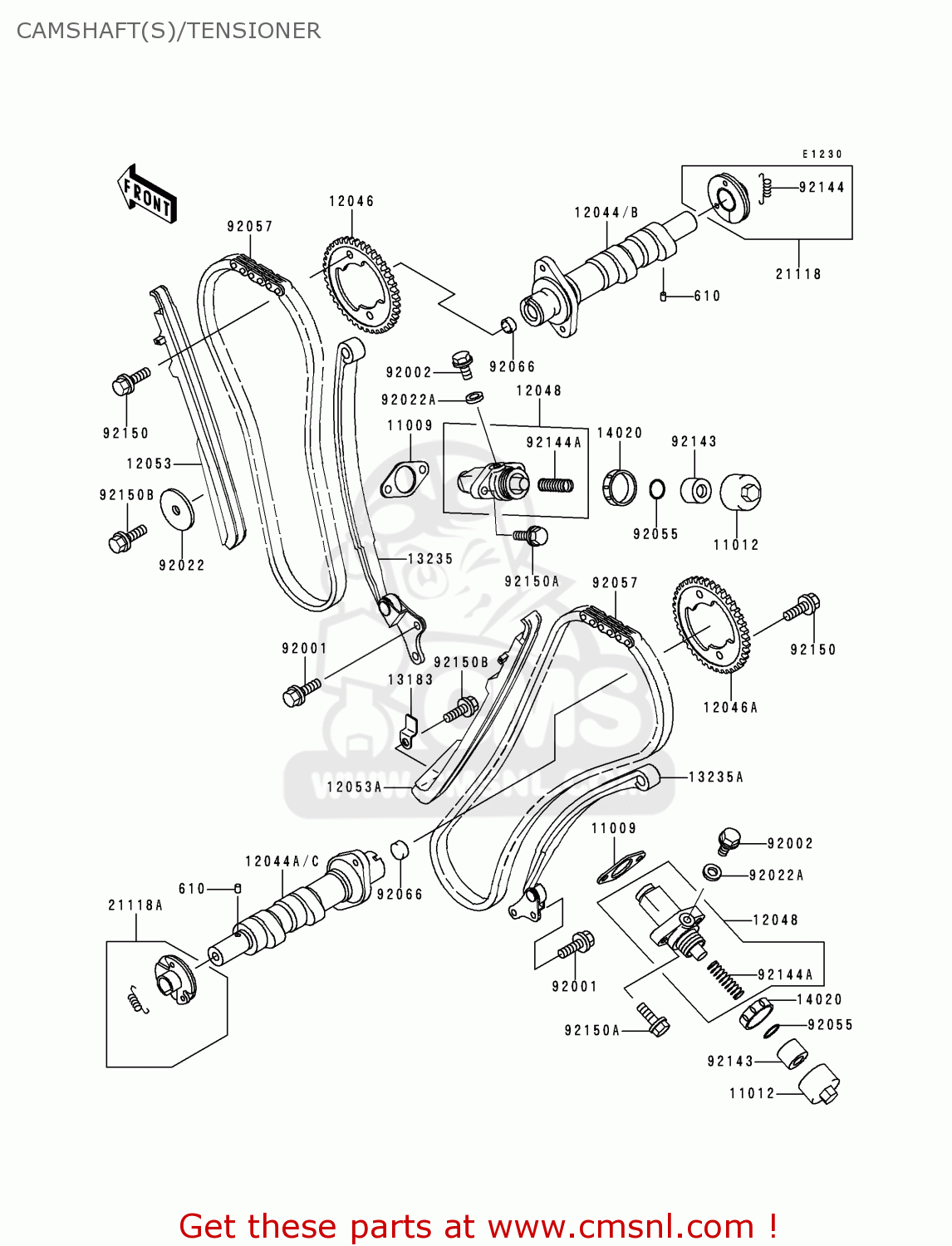

Camshaft(s)/tensioner diagram VN1500D2 VN1500 CLASSIC 1997 EURO UK FR NL AR FG GR IT NR SD ST

CAMSHAFT(S)/TENSIONER VN1500D2 VN1500 CLASSIC 1997 EURO UK FR NL AR FG GR IT NR SD ST
CAMSHAFT(S)/TENSIONER VN1500D2 VN1500 CLASSIC 1997 EURO UK FR NL AR FG GR IT NR SD ST
CAMSHAFT(S)/TENSIONER VN1500D2 VN1500 CLASSIC 1997 EURO UK FR NL AR FG GR IT NR SD ST
prices are in EUR
ref
part #
description
quantity
610
610A0406
ref: 610
ROLLER,4X6
610A0406
€ 2.50
11009
110091858
ref: 11009
GASKET,TENSIONER (NAS)
110091858
€ 3.00
11012
110121959
ref: 11012
CAP,TENSIONER
110121959
€ 24.00
12044
120441394
ref: 12044
AREUFGFRGRITNLNRSDSP
CAMSHAFT-VALVE,FR
120441394
€ 229.50
12044A
120441395
ref: 12044A
AREUFGFRGRITNLNRSDSP
CAMSHAFT-VALVE,RR
120441395
€ 229.50
12044B
120441409
ref: 12044B
ST
CAMSHAFT-VALVE,FR
€ 202.50
12044C
120441410
ref: 12044C
ST
CAMSHAFT-VALVE,RR
€ 202.50
12046
120461175
ref: 12046
SPROCKET,CAMSHAFT,FR,
120461175
€ 52.00
12046A
120461176
ref: 12046A
SPROCKET,CAMSHAFT,RR,
120461176
€ 52.00
12048
120481160
ref: 12048
TENSIONER-ASSY
120481160
€ 113.50
12053
120531219
ref: 12053
GUIDE-CHAIN,FR,TENSIO
120531219
€ 37.00
12053A
120531221
ref: 12053A
GUIDE-CHAIN,RR,TENSIO
120531221
€ 37.00
13183
131831096
ref: 13183
PLATE
131831096
€ 3.00
13235
132351070
ref: 13235
GUIDE-COMP,FR
132351070
€ 68.00
13235A
132351071
ref: 13235A
GUIDE-COMP,RR
132351071
€ 68.00
14020
140201054
ref: 14020
RETAINER,TENSIONER
140201054
€ 14.50
21118
211181061
ref: 21118
DECOMPRESSOR,FR
211181061
€ 127.50
21118A
211181083
ref: 21118A
DECOMPRESSOR,RR
211181083
€ 136.00
92001
920011457
ref: 92001
BOLT,EXCLUSIVE MASS P
920011457
€ 3.00
92002
920021356
ref: 92002
BOLT
920021356
€ 4.00
92022
92022227
ref: 92022
WASHER-PLAIN,7MM
€ 3.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
92022304
€ 2.50
92055
920551555
ref: 92055
RING-O,TENSIONER
920551555
€ 1.50
92057
920571422
ref: 92057
CHAIN,CAM,92RH2010
920571422
€ 28.50
92066
920661198
ref: 92066
PLUG
920661198
€ 3.00
92143
921431836
ref: 92143
COLLAR,TENSIONER
921431836
€ 11.50
92144
921441209
ref: 92144
SPRING,DECOMPRESSOR
921441209
€ 4.00
92144A
921441921
ref: 92144A
SPRING,TENSIONER
921441921
€ 5.50
92150
921501725
ref: 92150
BOLT
921501725
€ 3.00
92150A
921501795
ref: 92150A
BOLT,SOCKET,6X20
921501795
€ 3.50
92150B
921501868
ref: 92150B
BOLT,6X12
921501868
€ 2.00
