BRAKE PEDAL

VN1500D2 VN1500 CLASSIC 1997 EURO UK FR NL AR FG GR IT NR SD ST

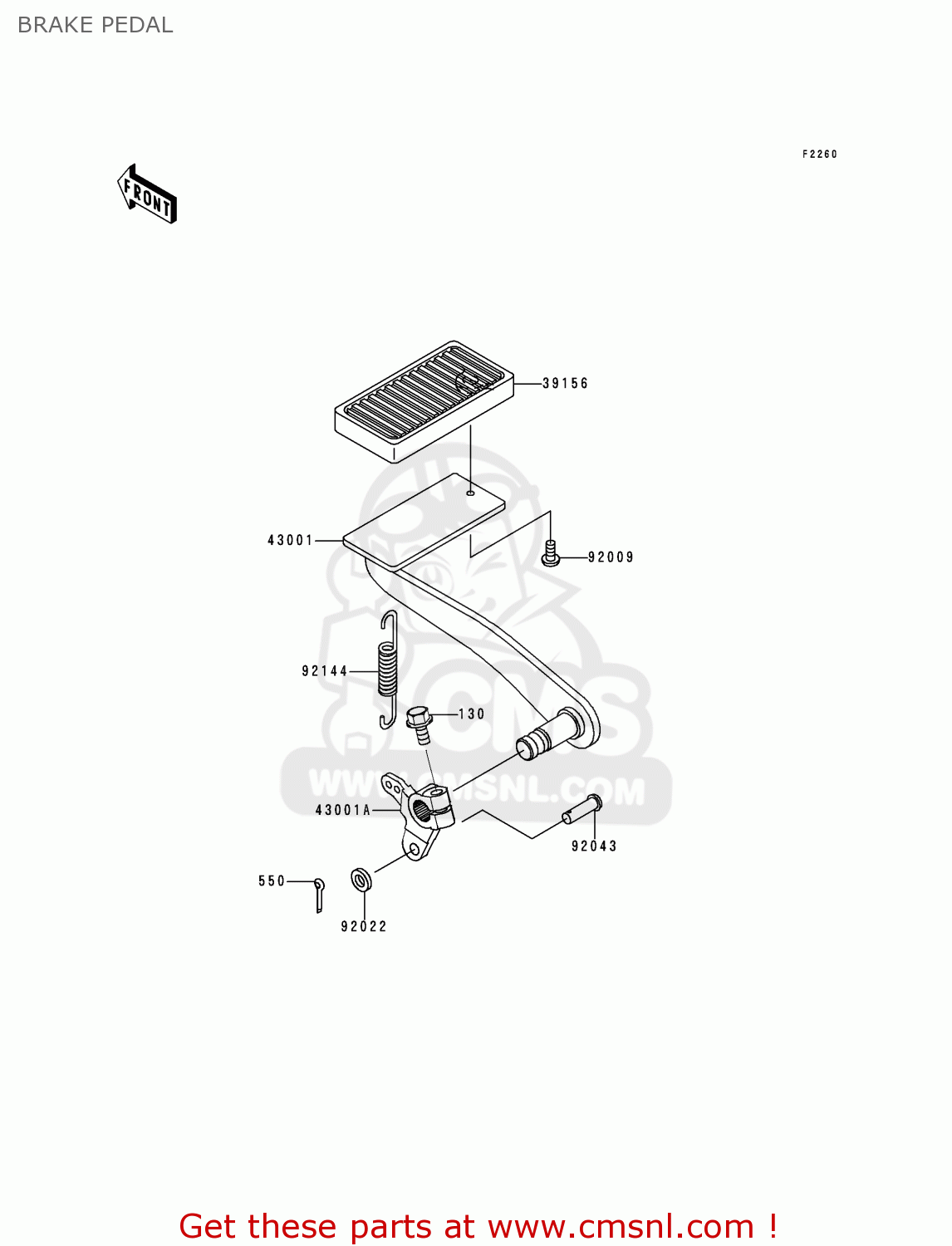

Brake pedal diagram VN1500D2 VN1500 CLASSIC 1997 EURO UK FR NL AR FG GR IT NR SD ST

prices are in EUR

ref

part #

description

quantity

130

130J0825
ref: 130

BOLT-FLANGED,8X25,BLA

€ 2.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

39156

391561540
ref: 39156

PAD,BRAKE PEDAL

€ 10.50

43001

430011367
ref: 43001

LEVER-BRAKE,PEDAL

€ 75.50

43001A

430011368
ref: 43001A

LEVER-BRAKE

€ 24.50

92009

920091677
ref: 92009

SCREW,6X8,BLACK

€ 2.50

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92043

920431013
ref: 92043

PIN

€ 6.50

92144

921441169
ref: 92144

SPRING,BRAKE PEDAL RE

€ 6.50

all assemblies
