SEAT

VN1500D1 VULCAN 1500 CLASSIC 1996 USA CALIFORNIA CANADA

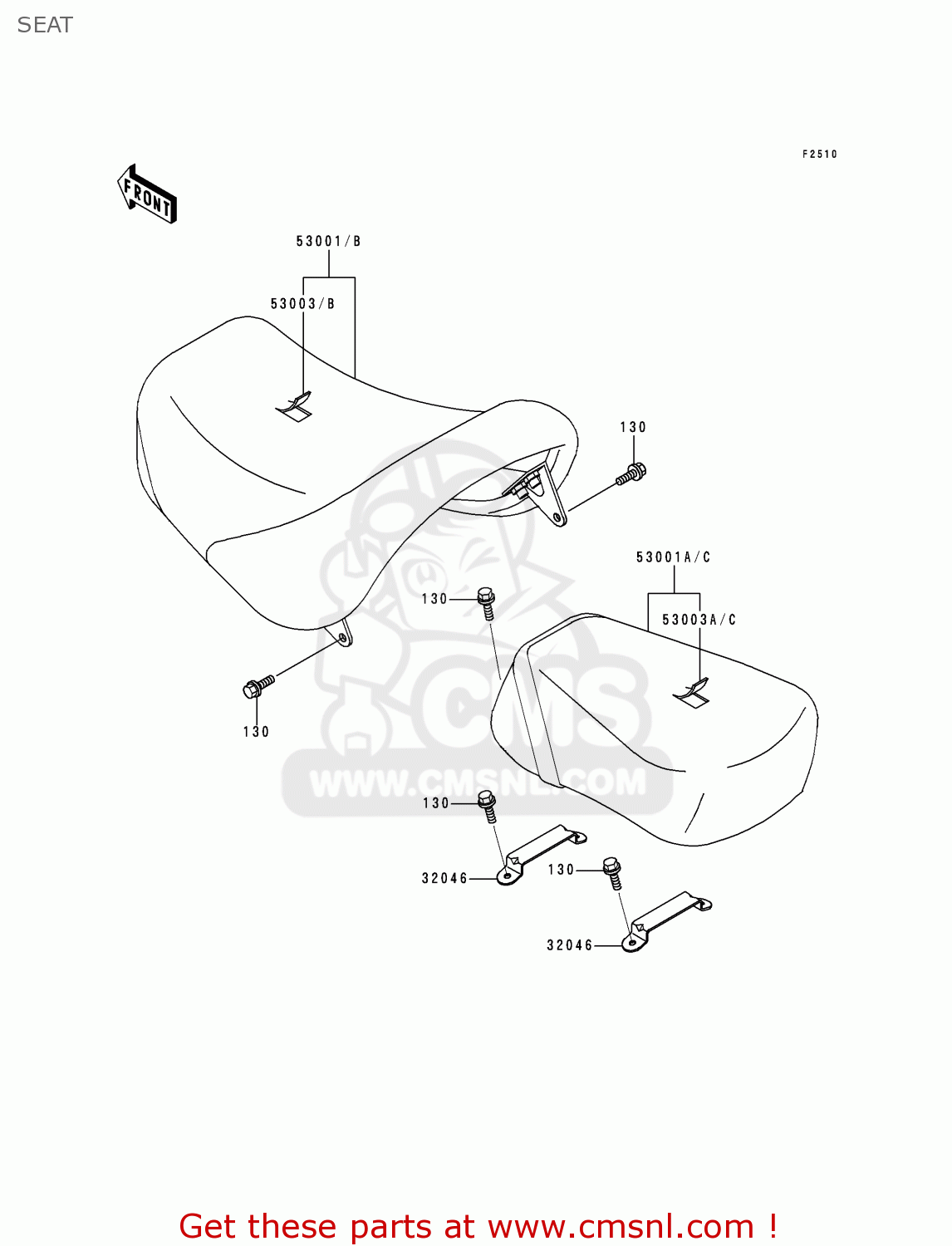

Seat diagram VN1500D1 VULCAN 1500 CLASSIC 1996 USA CALIFORNIA CANADA

SEAT VN1500D1 VULCAN 1500 CLASSIC 1996 USA CALIFORNIA CANADA

SEAT VN1500D1 VULCAN 1500 CLASSIC 1996 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

32046

320461412
ref: 32046

BRACKET-SEAT,RR

€ 8.50

53001

530011806MA
ref: 53001

SEAT-ASSY,FR,BLACK

€ 643.50

53001A

530011807MA
ref: 53001A

SEAT-ASSY,RR,W/BAND,B

€ 407.00

53003

530031356MA
ref: 53003

LEATHER,FRONT SEAT,BL

€ 190.50

53003A

530031357MA
ref: 53003A

LEATHER,REAR SEAT,BLA

€ 154.50
