FRONT MASTER CYLINDER

VN1500D1 VULCAN 1500 CLASSIC 1996 USA CALIFORNIA CANADA

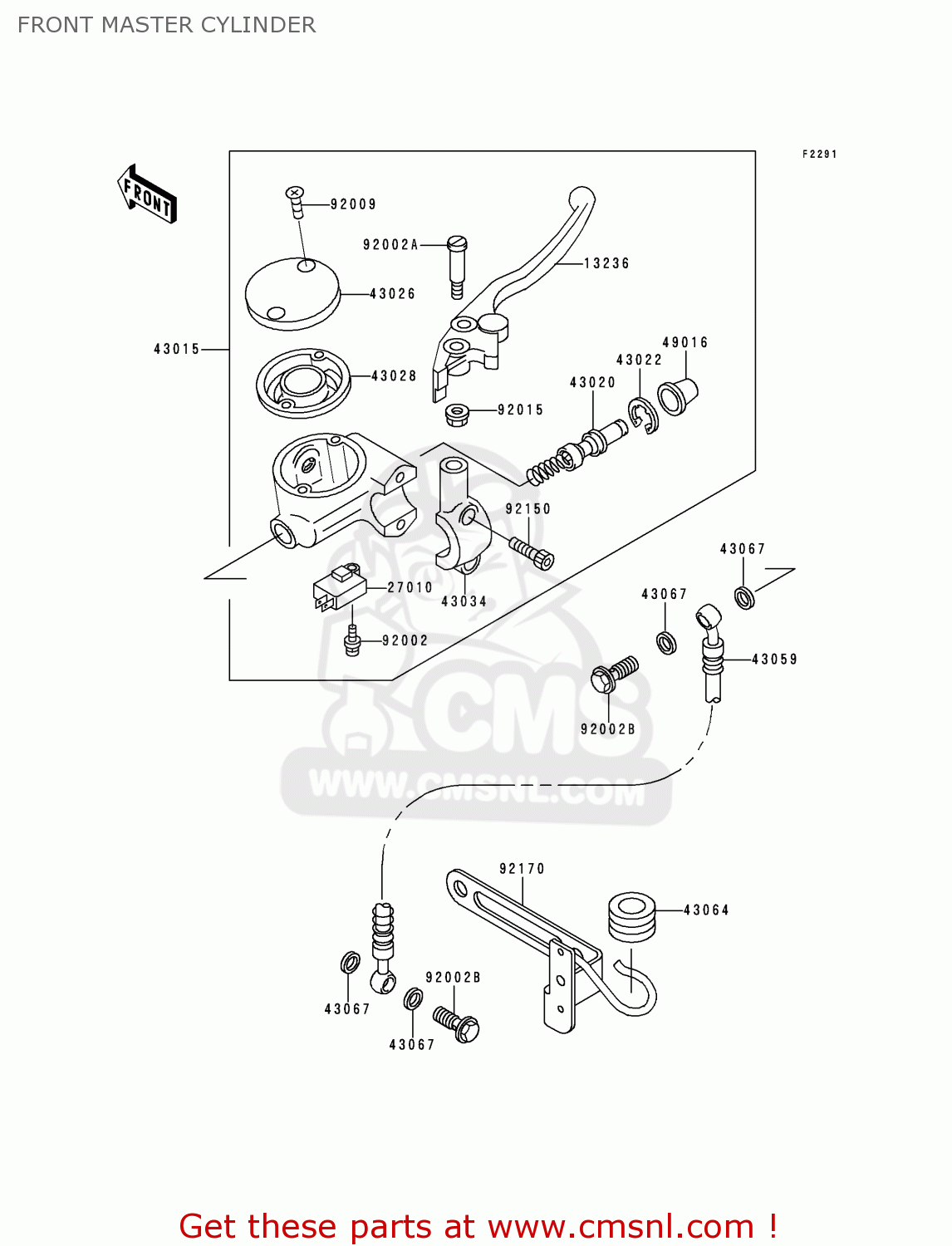

Front master cylinder diagram VN1500D1 VULCAN 1500 CLASSIC 1996 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

13236

132361287
ref: 13236

LEVER-COMP,FRONT BRAK

€ 38.50

27010

270101170
ref: 27010

SWITCH,BRAKE

€ 26.00

43015

430151583
ref: 43015

CYLINDER-ASSY-MASTER,

€ 349.00

43020

430201098
ref: 43020

PISTON-COMP-BRAKE

€ 38.50

43022

430221010
ref: 43022

STOPPER-BRAKE,PISTON

€ 3.00

43026

430261078
ref: 43026

CAP-BRAKE

€ 43.50

43028

430281071
ref: 43028

DIAPHRAGM,MASTER CYLI

€ 15.50

43034

430341102
ref: 43034

HOLDER-BRAKE

€ 54.00

43059

430591952
ref: 43059

HOSE-BRAKE,FR

€ 142.50

43064

43064006
ref: 43064

GROMMET,BRAKE HOSE

€ 2.50

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

49016

490161044
ref: 49016

COVER-SEAL,MASTER CYL

€ 7.00

92002

920021323
ref: 92002

BOLT

€ 2.50

92002A

920021561
ref: 92002A

BOLT,LEVER SET

€ 8.00

92002B

920021888
ref: 92002B

BOLT,OIL,L=23

€ 3.50

92009

920091440
ref: 92009

SCREW

€ 2.50

92015

920151528
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92150

921501025
ref: 92150

BOLT,SOCKET,6MM

€ 4.50

92170

921701651
ref: 92170

CLAMP,HOSE

€ 13.00
