GEAR CHANGE MECHANISM

VN1500D1 VULCAN 1500 CLASSIC 1996 USA CALIFORNIA CANADA

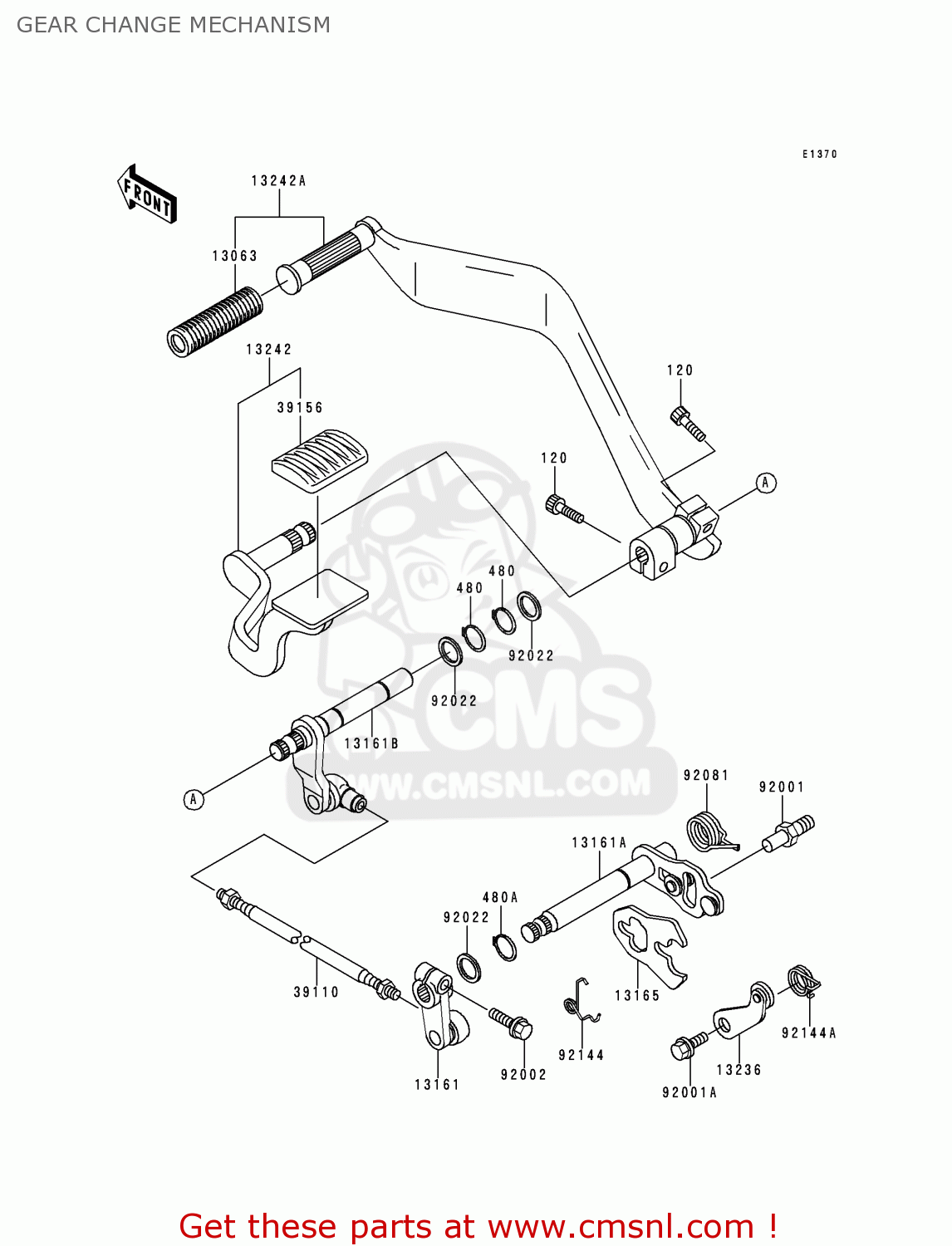

Gear change mechanism diagram VN1500D1 VULCAN 1500 CLASSIC 1996 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM VN1500D1 VULCAN 1500 CLASSIC 1996 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM VN1500D1 VULCAN 1500 CLASSIC 1996 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM VN1500D1 VULCAN 1500 CLASSIC 1996 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120Z0620
ref: 120
BOLT-SOCKET,6X20
120Z0620
€ 3.00
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
480J1200
€ 0.50
480A
480J1300
ref: 480A
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
13063
13063002
ref: 13063
RUBBER-KICK PEDAL
13063002
€ 3.00
13161
131611142
ref: 13161
LEVER-COMP-CHANGE SHA
131611142
€ 63.00
13161A
131611150
ref: 13161A
LEVER-COMP-CHANGE SHA
131611150
€ 48.00
13161B
131611241
ref: 13161B
LEVER-COMP-CHANGE SHA
131611241
€ 68.00
13165
131651120
ref: 13165
PAWL
131651120
€ 9.50
13236
132361126
ref: 13236
LEVER-COMP,POSITION
132361126
€ 9.00
13242
132421341
ref: 13242
LEVER-ASSY-CHANGE,PED
132421341
€ 39.50
13242A
132421343
ref: 13242A
LEVER-ASSY-CHANGE,PED
132421343
€ 73.00
39110
391101073
ref: 39110
ROD-ASSY-TIE
391101073
€ 7.00
39156
391561071
ref: 39156
PAD,BRAKE PEDAL
391561071
€ 7.50
92001
920011455
ref: 92001
BOLT
920011455
€ 3.00
92001A
920011715
ref: 92001A
BOLT
920011715
€ 7.00
92002
920021237
ref: 92002
BOLT,6X20
920021237
€ 2.50
92022
920221224
ref: 92022
WASHER,13.2X20X0.5
920221224
€ 2.50
92081
920811869
ref: 92081
SPRING,CHANGE PEDAL R
920811869
€ 7.00
92144
921441029
ref: 92144
SPRING
921441029
€ 5.00
92144A
921441140
ref: 92144A
SPRING,RETURN
€ 5.50
