RADIATOR

VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST

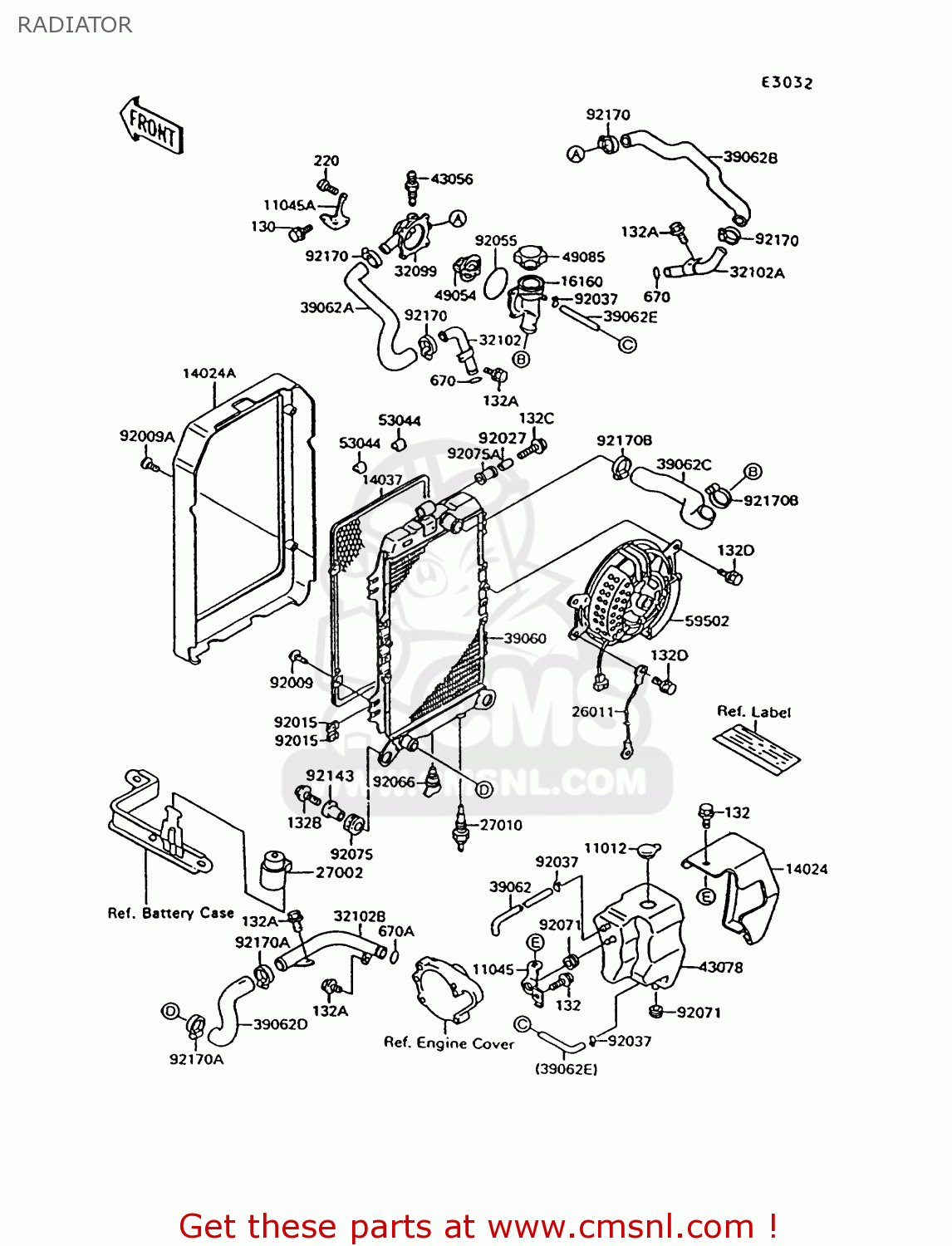

Radiator diagram VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST

RADIATOR VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST
RADIATOR VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST
RADIATOR VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121585
ref: 11012
CAP
110121585
€ 4.50
11045
110451436
ref: 11045
BRACKET,RESERVOIR
110451436
€ 5.50
11045A
110451437
ref: 11045A
BRACKET,THERMOSTAT
110451437
€ 5.50
14024
140241406
ref: 14024
COVER,RESERVOIR
140241406
€ 43.00
14024A
140241429H8
ref: 14024A
COVER,RADIATOR,EBONY
€ 150.50
14037
140371090
ref: 14037
SCREEN
140371090
€ 38.50
16160
161601116
ref: 16160
BODY,THERMOSTAT,UPP
161601116
€ 134.00
26011
260111412
ref: 26011
WIRE-LEAD
€ 19.50
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27010
270101167
ref: 27010
SWITCH,FAN
270101167
€ 108.50
32099
320991093
ref: 32099
CASE,THERMOSTAT
€ 38.50
32102
321021413
ref: 32102
PIPE,HEAD,FR
€ 18.50
32102A
321021414
ref: 32102A
PIPE,HEAD,RR
€ 19.50
32102B
321021415
ref: 32102B
PIPE,PUMP COVER-HOSE
321021415
€ 37.50
39060
390601077
ref: 39060
RADIATOR
390601077
€ 653.50
39062
390621125
ref: 39062
HOSE-COOLING
€ 17.50
39062A
390621227
ref: 39062A
HOSE-COOLING,HEAD,FR
€ 16.50
39062B
390621228
ref: 39062B
HOSE-COOLING,HEAD,RR
390621228
€ 29.00
39062C
390621229
ref: 39062C
HOSE-COOLING,THERMO-R
390621229
€ 22.50
39062D
390621252
ref: 39062D
HOSE-COOLING,RADIATOR
390621252
€ 19.00
39062E
390621255
ref: 39062E
HOSE-COOLING
390621255
€ 16.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781085
ref: 43078
RESERVOIR
430781085
€ 50.50
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
53044
530441199
ref: 53044
TRIM
€ 3.00
59502
595021071
ref: 59502
FAN-ASSY
595021071
€ 446.00
92009
920091436
ref: 92009
SCREW
920091436
€ 2.00
92009A
920091481
ref: 92009A
SCREW,TAPPING,6X30
920091481
€ 3.00
92015
920151758
ref: 92015
NUT
920151758
€ 4.50
92027
92027209
ref: 92027
COLLAR
92027209
€ 1.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92066
920661293
ref: 92066
PLUG,DRAIN
920661293
€ 12.00
92071
920711115
ref: 92071
GROMMET,RESERVOIR TAN
920711115
€ 3.50
92075
920751665
ref: 92075
DAMPER
920751665
€ 5.00
92075A
920751920
ref: 92075A
DAMPER
920751920
€ 3.00
92143
921431063
ref: 92143
COLLAR
921431063
€ 6.00
92170
921701032
ref: 92170
CLAMP,COOLING HOSE
921701032
€ 16.50
92170A
921701034
ref: 92170A
CLAMP,COOLING HOSE
921701034
€ 14.00
130
130B0612
ref: 130
BOLT-FLANGED,6X12
€ 0.50
132
132E0610
ref: 132
BOLT-FLANGED-SMALL
132E0610
€ 2.50
132A
132E0612
ref: 132A
BOLT-FLANGED-SMALL
132E0612
€ 3.50
132B
132E0625
ref: 132B
BOLT-FLANGED-SMALL
132E0625
€ 3.00
132C
132E0640
ref: 132C
BOLT-FLANGED-SMALL
132E0640
€ 3.50
132D
132G0610
ref: 132D
BOLT-FLANGED-SMALL
132G0610
€ 1.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
670
670B2014
ref: 670
O RING,14MM
670B2014
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
92170B
921701284
ref: 92170B
CLAMP,CABLE
921701284
€ 7.50
