IGNITION SWITCH

VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST

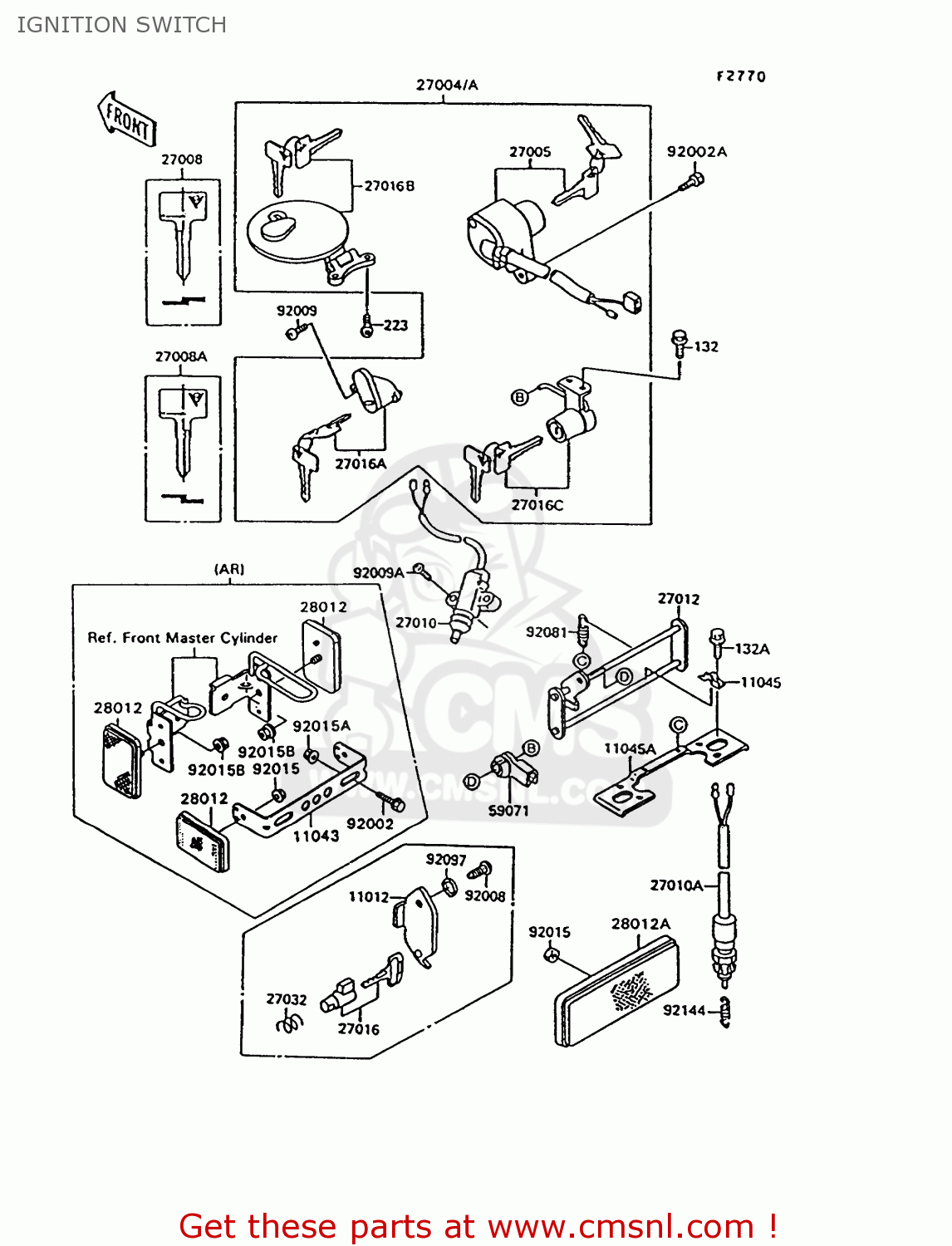

Ignition switch diagram VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST

IGNITION SWITCH VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST
IGNITION SWITCH VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST
IGNITION SWITCH VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
CAP,STEERING LOCK
110121134
€ 4.50
11043
110431619
ref: 11043
AR
BRACKET,REFLECTOR,RR
110431619
€ 9.00
11045
110451700
ref: 11045
BRACKET,SEAT HOOK
110451700
€ 3.50
11045A
110451701
ref: 11045A
BRACKET,SEAT HOOK
110451701
€ 9.00
27004
270045487
ref: 27004
AREUFGFRNLNRSDSPSTUK
SWITCH-ASSY
€ 354.50
27004A
270045488
ref: 27004A
IT
SWITCH-ASSY
€ 383.50
27005
270051184
ref: 27005
SWITCH-ASSY-IGNITION
€ 220.00
27008
270081138
ref: 27008
KEY-LOCK,BLANK
270081138
€ 13.00
27008A
270081139
ref: 27008A
KEY-LOCK,BLANK
270081139
€ 13.00
27010
270101223
ref: 27010
SWITCH,SIDE STAND
270101223
€ 48.00
27010A
270101238
ref: 27010A
SWITCH,REAR BRAKE
270101238
€ 21.50
27012
270121371
ref: 27012
HOOK,SEAT
270121371
€ 19.00
27016
270161005
ref: 27016
LOCK-ASSY,STEERING
270161005
€ 65.00
27016A
270165129
ref: 27016A
AREUFGFRNLNRSDSPSTUK
LOCK-ASSY,HELMET
270165129
€ 58.00
27016A
270165129
ref: 27016A
IT
LOCK-ASSY,HELMET
270165129
€ 58.00
27016B
270165130
ref: 27016B
LOCK-ASSY,FUEL TANK C
270165130
€ 76.50
27016C
270165132
ref: 27016C
LOCK-ASSY,SEAT
270165132
€ 16.50
27032
27032001
ref: 27032
SPRING-STEERING LOCK
27032001
€ 3.50
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121077
ref: 28012A
REFLECTOR-REFLEX
280121077
€ 16.00
59071
590711103
ref: 59071
JOINT
590711103
€ 5.50
92002
920021132
ref: 92002
AR
BOLT,6X12
€ 2.50
92002A
920021173
ref: 92002A
BOLT,SOCKET,5X12
€ 2.00
92008
92008007
ref: 92008
SCREW-TAPPING
92008007
€ 2.50
92009
920091296
ref: 92009
AREUFGFRNLNRSDSPSTUK
SCREW,5X12
920091296
€ 2.50
92009
920091296
ref: 92009
IT
SCREW,5X12
920091296
€ 2.50
92009A
920091459
ref: 92009A
SCREW
920091459
€ 2.50
92015
920151259
ref: 92015
EUFGFRITNLNRSDSPSTUK
NUT,FLANGED,5MM
920151259
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151367
ref: 92015A
AR
NUT,FLANGED,6MM
920151367
€ 0.50
92015B
920151656
ref: 92015B
AR
NUT,FLANGED,5MM
920151656
€ 2.00
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
132G0608
€ 1.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
223
223B0410
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
92081
920811466
ref: 92081
SPRING,HOOK RETURN
920811466
€ 5.50
92097
92097003
ref: 92097
WASHER
92097003
€ 2.50
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
921441141
€ 3.50
