Genuine VN Kawasaki Parts delivered quickly!


CAMSHAFT(S)/TENSIONER

VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST

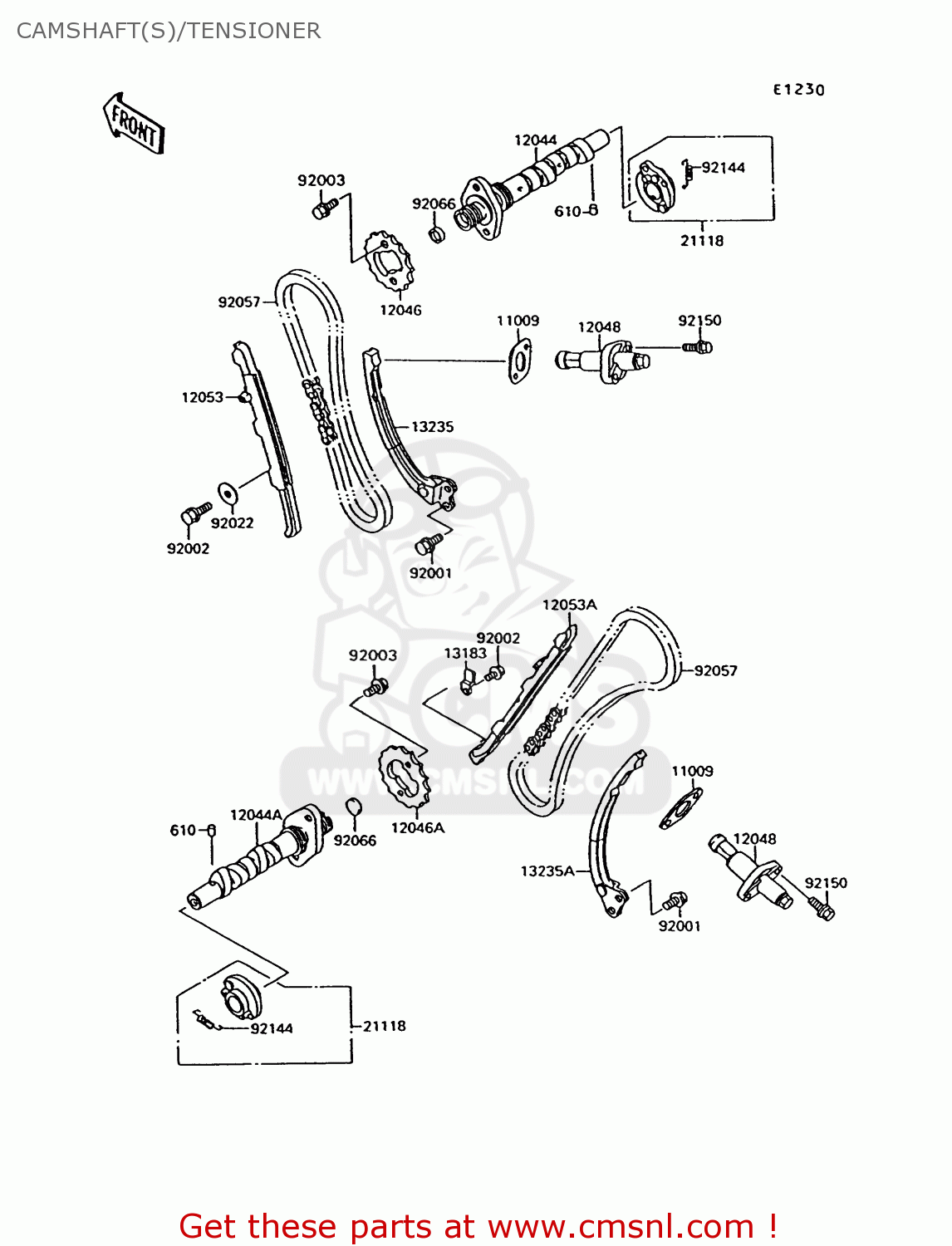

Camshaft(s)/tensioner diagram VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST

CAMSHAFT(S)/TENSIONER VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST
CAMSHAFT(S)/TENSIONER VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST
CAMSHAFT(S)/TENSIONER VN1500C1 VN15 1994 EUROPE UK FR NL AR FG IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
610
610A0406
ref: 610
ROLLER,4X6
610A0406
€ 2.50
11009
110091858
ref: 11009
GASKET,TENSIONER (NAS)
110091858
€ 3.00
12044
120441200
ref: 12044
CAMSHAFT-VALVE,FR
120441200
€ 255.50
12044A
120441201
ref: 12044A
CAMSHAFT-VALVE,RR
120441201
€ 235.50
12046
120461105
ref: 12046
SPROCKET,CAMSHAFT
€ 36.50
12046A
120461106
ref: 12046A
SPROCKET,CAMSHAFT
€ 36.50
12048
120481088
ref: 12048
TENSIONER-ASSY
120481088
€ 84.00
12053
120531219
ref: 12053
GUIDE-CHAIN,FR,TENSIO
120531219
€ 37.00
12053A
120531221
ref: 12053A
GUIDE-CHAIN,RR,TENSIO
120531221
€ 37.00
13183
131831096
ref: 13183
PLATE
131831096
€ 3.00
13235
132351060
ref: 13235
GUIDE-COMP
132351060
€ 50.00
13235A
132351061
ref: 13235A
GUIDE-COMP
132351061
€ 50.00
21118
211181061
ref: 21118
DECOMPRESSOR,FR
211181061
€ 127.50
92001
920011457
ref: 92001
BOLT,EXCLUSIVE MASS P
920011457
€ 3.00
92002
920021563
ref: 92002
BOLT,6X12
€ 2.00
92003
92003208
ref: 92003
BOLT,SPROCKET FITTING
92003208
€ 2.50
92022
92022227
ref: 92022
WASHER-PLAIN,7MM
€ 3.00
92057
920571234
ref: 92057
CHAIN,CAM
920571234
€ 28.50
92066
920661198
ref: 92066
PLUG
920661198
€ 3.00
92144
921441209
ref: 92144
SPRING,DECOMPRESSOR
921441209
€ 4.00
92150
921501056
ref: 92150
BOLT
921501056
€ 3.50
