REAR WHEEL/CHAIN

VN1500A7 VULCAN 88 1993 USA CALIFORNIA CANADA

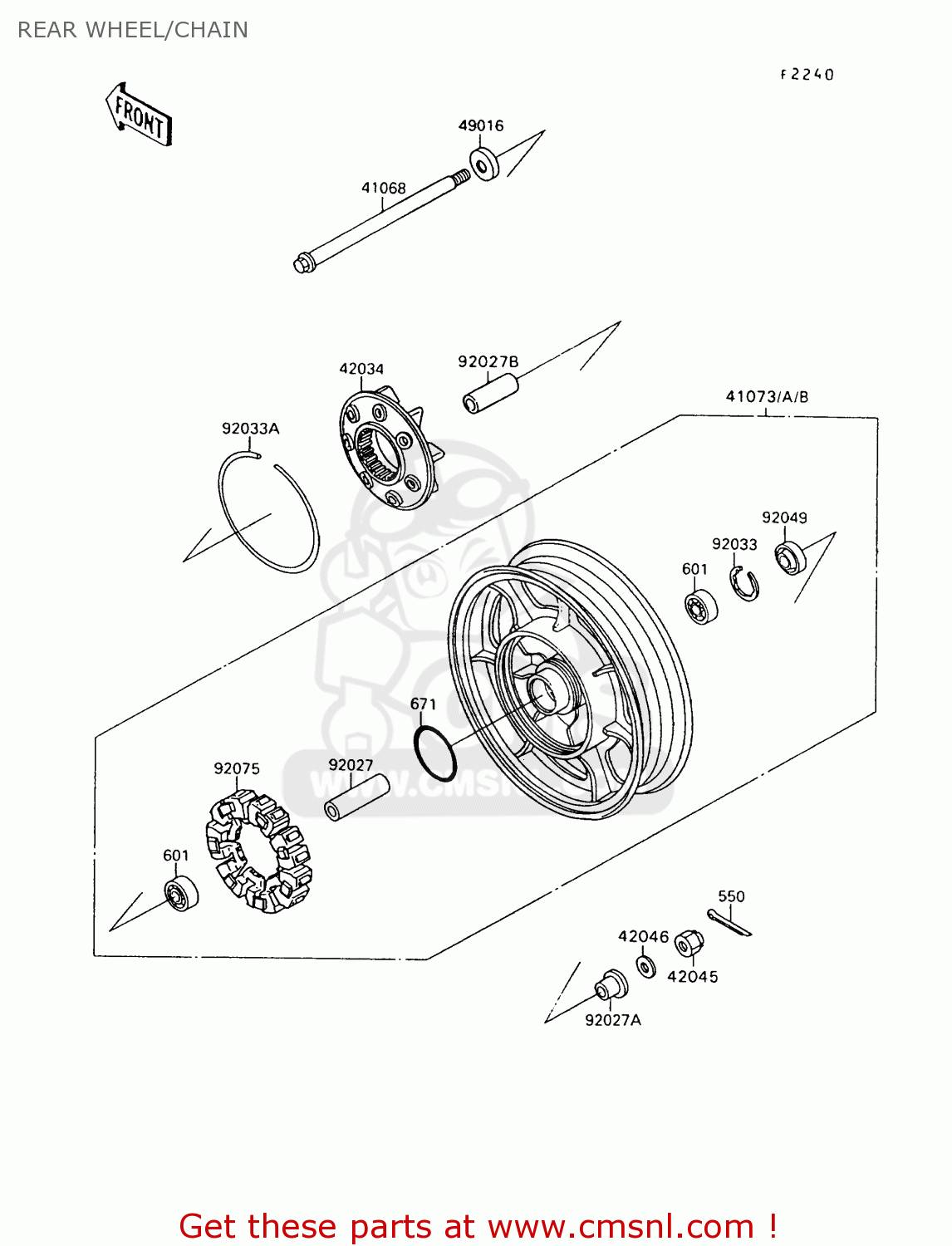

Rear wheel/chain diagram VN1500A7 VULCAN 88 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6304UU
ref: 601

BEARING-BALL,#6304UUC

€ 34.50

671

671B2580
ref: 671

O RING,80MM

€ 4.00

41068

410681197
ref: 41068

AXLE,RR

€ 70.00

41073

410731428CB
ref: 41073

WHEEL-ASSY,RR,BLACK

€ 736.00

42034

420341011
ref: 42034

COUPLING,RR HUB

€ 251.00

42045

42045018
ref: 42045

NUT,18MM

€ 7.50

42046

42046003
ref: 42046

WASHER,21X33X2.6

€ 2.50

49016

490161019
ref: 49016

COVER-SEAL

€ 5.50

92027

920271901
ref: 92027

COLLAR,20.2X28X105.5

€ 25.50

92027A

920271902
ref: 92027A

COLLAR,RR AXLE,L=21.5

€ 17.00

92027B

920271969
ref: 92027B

COLLAR,20.2X28X86

€ 10.00

92033

920331043
ref: 92033

RING,SNAP,56.2M/M

€ 6.00

92033A

920331230
ref: 92033A

RING-SNAP,220MM

€ 12.50

92049

920491061
ref: 92049

SEAL-OIL,28X52X5

€ 13.00

92075

920751121
ref: 92075

DAMPER,SHOCK,RR HUB

€ 88.00
