FRAME

VN1500A7 VULCAN 88 1993 USA CALIFORNIA CANADA

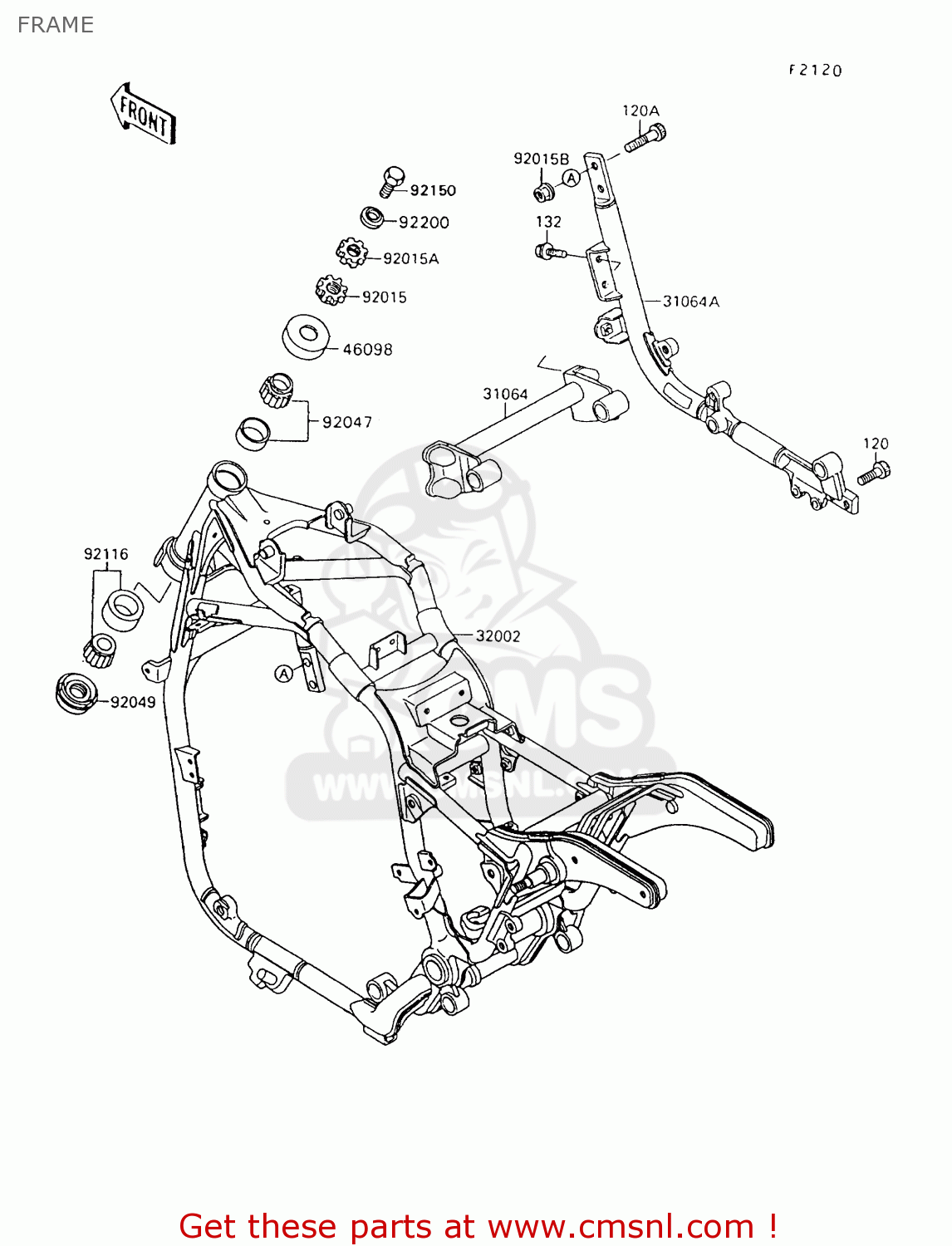

Frame diagram VN1500A7 VULCAN 88 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120S1020
ref: 120

BOLT-SOCKET

€ 3.00

120A

120S1030
ref: 120A

BOLT-SOCKET,10X30

€ 3.50

132

132J0816
ref: 132

BOLT-FLANGED-SMALL,8X

€ 2.00

31064

310641083
ref: 31064

PIPE-COMP,FRAME,CROSS

€ 99.00

31064A

310641084
ref: 31064A

PIPE-COMP,FRAME,RH

€ 336.00

32002

320021987
ref: 32002

FRAME,COMPLETE

€ 1,308.00

46098

46098017
ref: 46098

CAP,STEERING STEM

€ 4.00

92015

920151377
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151378
ref: 92015A

NUT,25MM,T=6

€ 14.50

92015B

920151669
ref: 92015B

NUT,FLANGED,10MM

€ 2.00

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92150

921501672
ref: 92150

BOLT,14X25

€ 9.50

92200

922001140
ref: 92200

WASHER

€ 8.00
