CRANKCASE

VN1500A7 VULCAN 88 1993 USA CALIFORNIA CANADA

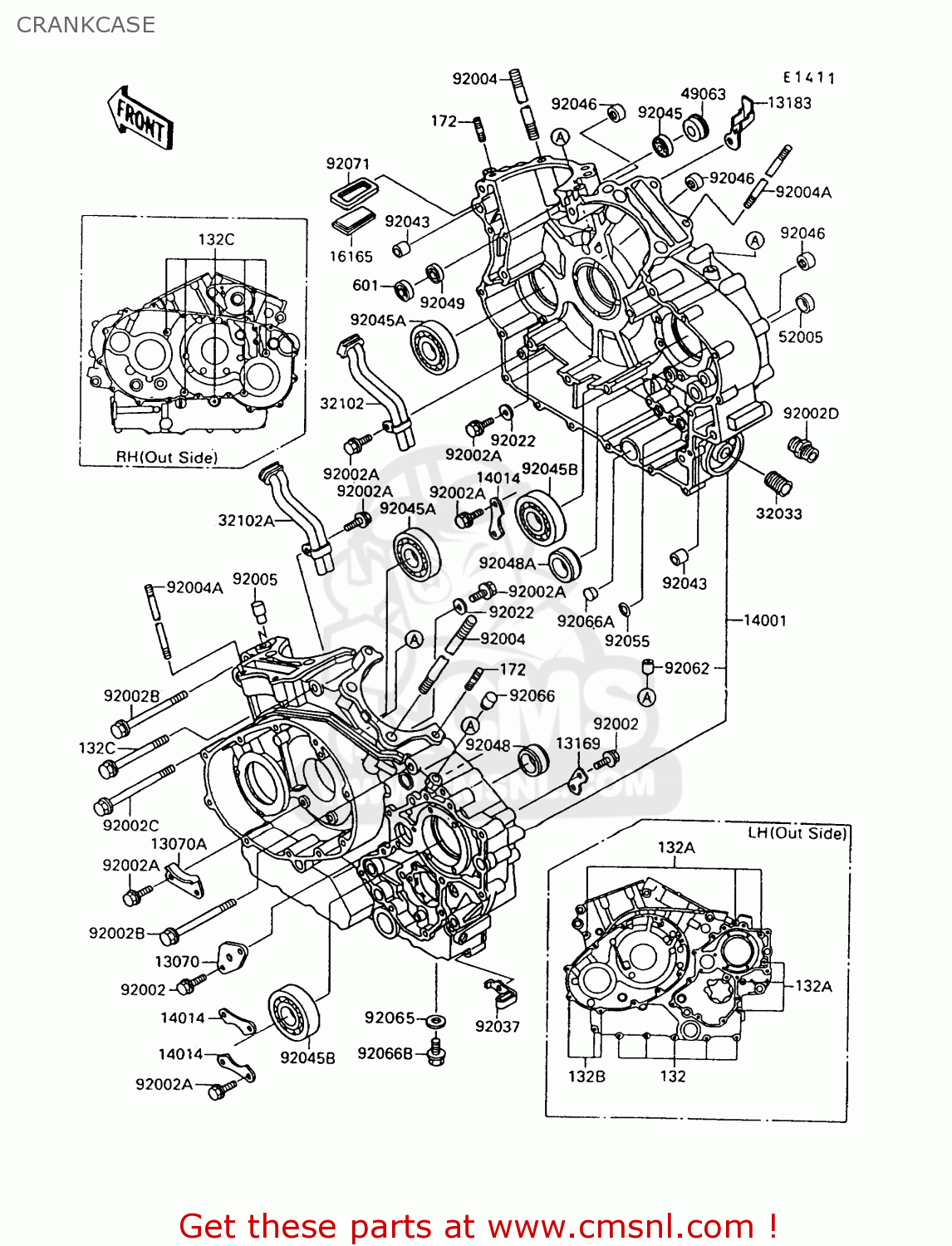

Crankcase diagram VN1500A7 VULCAN 88 1993 USA CALIFORNIA CANADA

CRANKCASE VN1500A7 VULCAN 88 1993 USA CALIFORNIA CANADA
CRANKCASE VN1500A7 VULCAN 88 1993 USA CALIFORNIA CANADA
CRANKCASE VN1500A7 VULCAN 88 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132E0640
ref: 132
BOLT-FLANGED-SMALL
132E0640
€ 3.50
132A
132E0670
ref: 132A
BOLT-FLANGED-SMALL
132E0670
€ 3.00
132B
132E0680
ref: 132B
BOLT-FLANGED-SMALL
132E0680
€ 3.00
13070
130701167
ref: 13070
GUIDE,PUSH ROD
130701167
€ 14.50
13070A
130701168
ref: 13070A
GUIDE,CAM CHAIN
130701168
€ 3.50
13169
13169014
ref: 13169
PLATE,GEAR CHANGE DRU
13169014
€ 3.00
13183
131831145
ref: 13183
PLATE
131831145
€ 4.50
14001
140015232
ref: 14001
SET-CRANKCASE
€ 2,353.00
14014
140141084
ref: 14014
PLATE-POSITION
140141084
€ 4.00
16165
161651058
ref: 16165
SEPARATOR
161651058
€ 18.00
32102
321021407
ref: 32102
PIPE
€ 29.50
32102A
321021708
ref: 32102A
PIPE
€ 31.00
49063
490631052
ref: 49063
SEAL-MECHANICAL
490631052
€ 32.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
92002
920021439
ref: 92002
BOLT,6X16
920021439
€ 3.00
92002A
920021563
ref: 92002A
BOLT,6X12
€ 2.00
92002B
920021897
ref: 92002B
BOLT,10X105
920021897
€ 5.50
92002C
920021898
ref: 92002C
BOLT,10X115
€ 7.00
92002D
920021899
ref: 92002D
BOLT,OIL FILTER
920021899
€ 13.50
92004
920041172
ref: 92004
STUD,12X252
€ 11.50
92004A
920041174
ref: 92004A
STUD,8X231
€ 8.50
92005
920051155
ref: 92005
FITTING
€ 5.50
92022
920221517
ref: 92022
WASHER,6X19.5X2
920221517
€ 1.50
92037
920371925
ref: 92037
CLAMP
€ 4.00
92043
920431266
ref: 92043
PIN,11X14X12.3
920431266
€ 1.00
92045
920451151
ref: 92045
BEARING-BALL,6001JRXL
920451151
€ 26.00
92045A
920451189
ref: 92045A
BEARING-BALL,63/28
€ 50.50
92045B
920451190
ref: 92045B
BEARING-BALL,6306SH2
920451190
€ 44.50
92046
920461163
ref: 92046
BEARING-NEEDLE,HK1212
920461163
€ 13.50
92048
920481069
ref: 92048
RACE
920481069
€ 29.00
92048A
920481070
ref: 92048A
RACE
920481070
€ 26.50
92049
920491228
ref: 92049
SEAL-OIL,AC037AE0
920491228
€ 7.00
92055
920551373
ref: 92055
RING-O,13.2X2.4
920551373
€ 3.00
92062
920621066
ref: 92062
NOZZLE,6X8
€ 2.50
92065
92065097
ref: 92065
GASKET,DRAIN PLUG BOL (NAS)
92065097
€ 1.00
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
920661012
€ 4.00
92066A
920661110
ref: 92066A
PLUG
920661110
€ 4.00
92066B
920661174
ref: 92066B
PLUG,OIL DRAIN,12X15
920661174
€ 4.00
92071
920711153
ref: 92071
GROMMET,SEPARATOR
€ 5.50
132C
132E0890
ref: 132C
BOLT-FLANGED-SMALL
€ 4.50
172
172G0825
ref: 172
STUD,8X25
€ 3.50
601
601A6001
ref: 601
BEARING-BALL
601A6001
€ 9.00
