Genuine VN Kawasaki Parts delivered quickly!


FUEL TANK

VN1500A12 VULCAN 1500 1998 USA CALIFORNIA

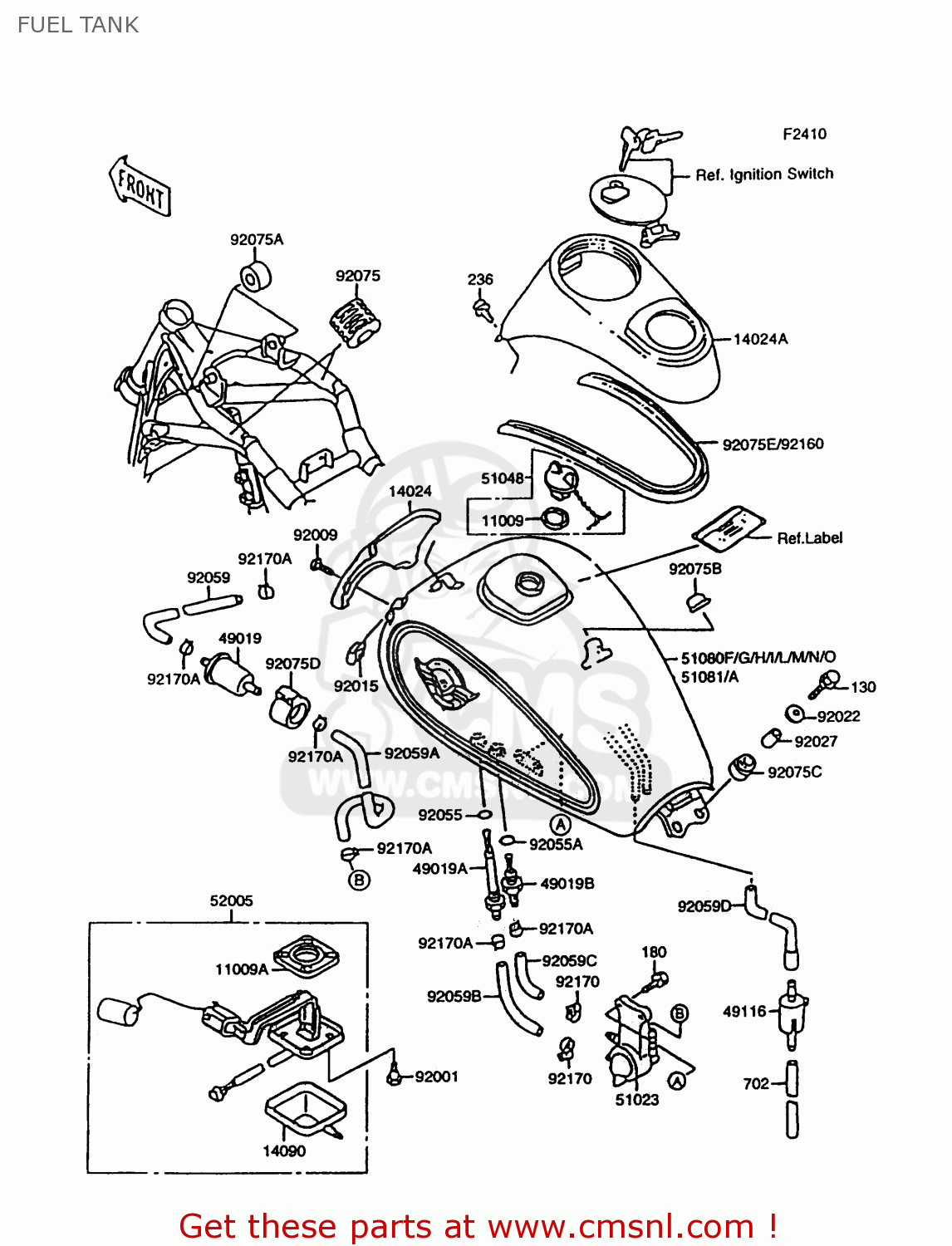

Fuel tank diagram VN1500A12 VULCAN 1500 1998 USA CALIFORNIA

FUEL TANK VN1500A12 VULCAN 1500 1998 USA CALIFORNIA
FUEL TANK VN1500A12 VULCAN 1500 1998 USA CALIFORNIA
FUEL TANK VN1500A12 VULCAN 1500 1998 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
11009
110091326
ref: 11009
GASKET,TANK CAP (NAS)
110091326
€ 4.00
11009A
110091656
ref: 11009A
GASKET,FUEL GAUGE (NAS)
110091656
€ 14.50
14024
140241453
ref: 14024
COVER,FUEL TANK,FR
140241453
€ 34.00
14024A
140241614
ref: 14024A
COVER,FUEL TANK,UPP
€ 96.00
14090
140901624
ref: 14090
COVER,FUEL GAUGE
140901624
€ 11.50
49019
490191055
ref: 49019
FILTER-FUEL
490191055
€ 14.50
49019A
490191056
ref: 49019A
FILTER-FUEL,ON
490191056
€ 15.50
49019B
490191057
ref: 49019B
FILTER-FUEL,"RES"
490191057
€ 12.00
49116
491161063
ref: 49116
VALVE-ASSY,BREATHER
491161063
€ 19.50
51023
510231136
ref: 51023
TAP-ASSY,FUEL
510231136
€ 111.00
51048
510481094
ref: 51048
CAP-ASSY-TANK,FUEL
510481094
€ 30.50
51080N
510805407A1
ref: 51080N
US
FUEL TANK,COMPLETE,BURNT RED
€ 771.50
51080O
510805421A1
ref: 51080O
CA
FUEL TANK,COMPLETE,BURNT RED
€ 771.50
52005
520051084
ref: 52005
GAUGE,FUEL
520051084
€ 148.00
92001
920011705
ref: 92001
BOLT,FUEL GAGE
920011705
€ 2.50
92009
920091651
ref: 92009
SCREW
920091651
€ 2.50
92015
920151677
ref: 92015
NUT,CLAMP,5MM
920151677
€ 5.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
92027156
€ 3.00
92055
920551386
ref: 92055
RING-O,ID=9.5
920551386
€ 2.50
92055A
920551387
ref: 92055A
RING-O,ID=11.5
920551387
€ 2.50
92059
920591785
ref: 92059
TUBE
€ 12.50
92059A
920591786
ref: 92059A
TUBE
920591786
€ 17.50
92059B
920591818
ref: 92059B
TUBE,ON
920591818
€ 5.00
92059C
920591819
ref: 92059C
TUBE,RES
920591819
€ 5.00
92059D
920591854
ref: 92059D
TUBE
€ 4.50
92075
92075084
ref: 92075
DAMPER,FUEL TANK
92075084
€ 6.50
130
130B0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
180
180B0608
ref: 180
BOLT-UPSET-WS
€ 0.50
236
236B0510
ref: 236
SCREW-PAN-WSP-CROS,5X
€ 1.50
702
702A05550
ref: 702
US
TUBE-RUBBER,5X8X550
€ 50.00
92075A
920751115
ref: 92075A
DAMPER,FUEL TANK FRON
920751115
€ 4.00
92075B
920751445
ref: 92075B
DAMPER
920751445
€ 5.00
92075C
92075167
ref: 92075C
DAMPER
92075167
€ 3.50
92075D
920751853
ref: 92075D
DAMPER
920751853
€ 8.50
92160
921601873
ref: 92160
DAMPER,FUEL TANK COVE
€ 27.00
92170
921701278
ref: 92170
CLAMP
921701278
€ 7.50
92170A
921702043
ref: 92170A
CLAMP
921702043
€ 1.00
