CLUTCH MASTER CYLINDER

VN1500A12 VULCAN 1500 1998 USA CALIFORNIA

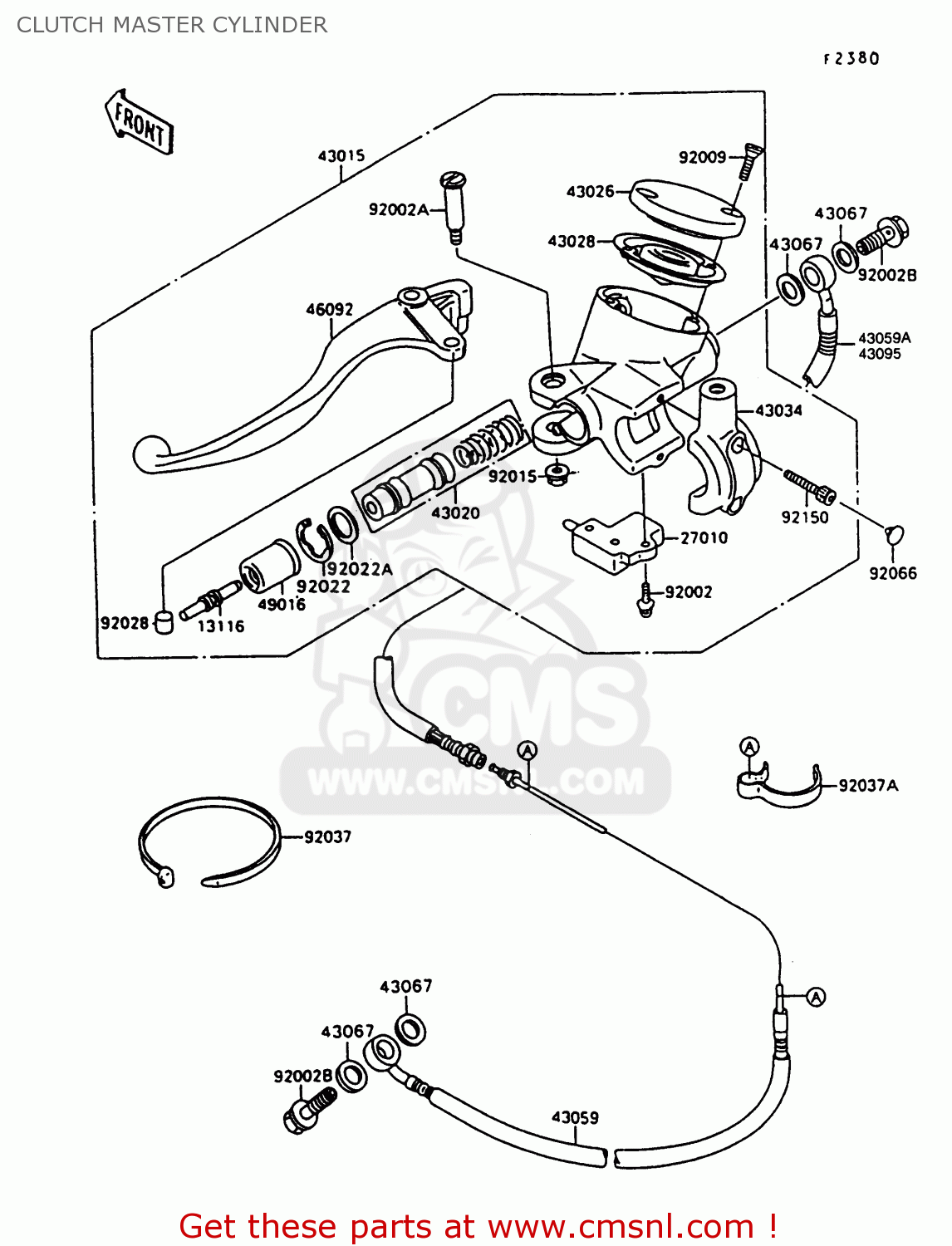

Clutch master cylinder diagram VN1500A12 VULCAN 1500 1998 USA CALIFORNIA

CLUTCH MASTER CYLINDER VN1500A12 VULCAN 1500 1998 USA CALIFORNIA
CLUTCH MASTER CYLINDER VN1500A12 VULCAN 1500 1998 USA CALIFORNIA
CLUTCH MASTER CYLINDER VN1500A12 VULCAN 1500 1998 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
13116
131161110
ref: 13116
ROD-PUSH,MASTER CYLIN
131161110
€ 24.00
27010
270101171
ref: 27010
SWITCH,CLUTCH
270101171
€ 25.00
43015
430151514
ref: 43015
CYLINDER-ASSY-MASTER,
€ 495.00
43020
430201055
ref: 43020
PISTON-COMP-BRAKE,CLU
430201055
€ 47.50
43026
430261078
ref: 43026
CAP-BRAKE
430261078
€ 43.50
43028
430281071
ref: 43028
DIAPHRAGM,MASTER CYLI
430281071
€ 15.50
43034
430341102
ref: 43034
HOLDER-BRAKE
430341102
€ 54.00
43059
430591393
ref: 43059
HOSE-BRAKE,CLUTCH
430591393
€ 127.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43095
430951078
ref: 43095
HOSE-BRAKE,CLUTCH
€ 86.00
46092
460921173
ref: 46092
LEVER-GRIP,CLUTCH
460921173
€ 17.00
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
92002
920021325
ref: 92002
BOLT
920021325
€ 4.00
92002A
920021561
ref: 92002A
BOLT,LEVER SET
920021561
€ 8.00
92002B
920021888
ref: 92002B
BOLT,OIL,L=23
920021888
€ 3.50
92009
920091440
ref: 92009
SCREW
920091440
€ 2.50
92015
920151528
ref: 92015
NUT,FLANGED,6MM
920151528
€ 3.50
92022
920221605
ref: 92022
WASHER,PISTON
920221605
€ 3.00
92022A
920221606
ref: 92022A
WASHER,PISTON
920221606
€ 3.00
92028
920281310
ref: 92028
BUSHING,MASTER CYLIND
920281310
€ 10.00
92037
920371173
ref: 92037
CLAMP,SPARK PLUG CAP
920371173
€ 1.00
92037A
920371552
ref: 92037A
CLAMP
920371552
€ 6.50
92066
920661301
ref: 92066
PLUG
920661301
€ 4.00
92150
921501025
ref: 92150
BOLT,SOCKET,6MM
921501025
€ 4.50
