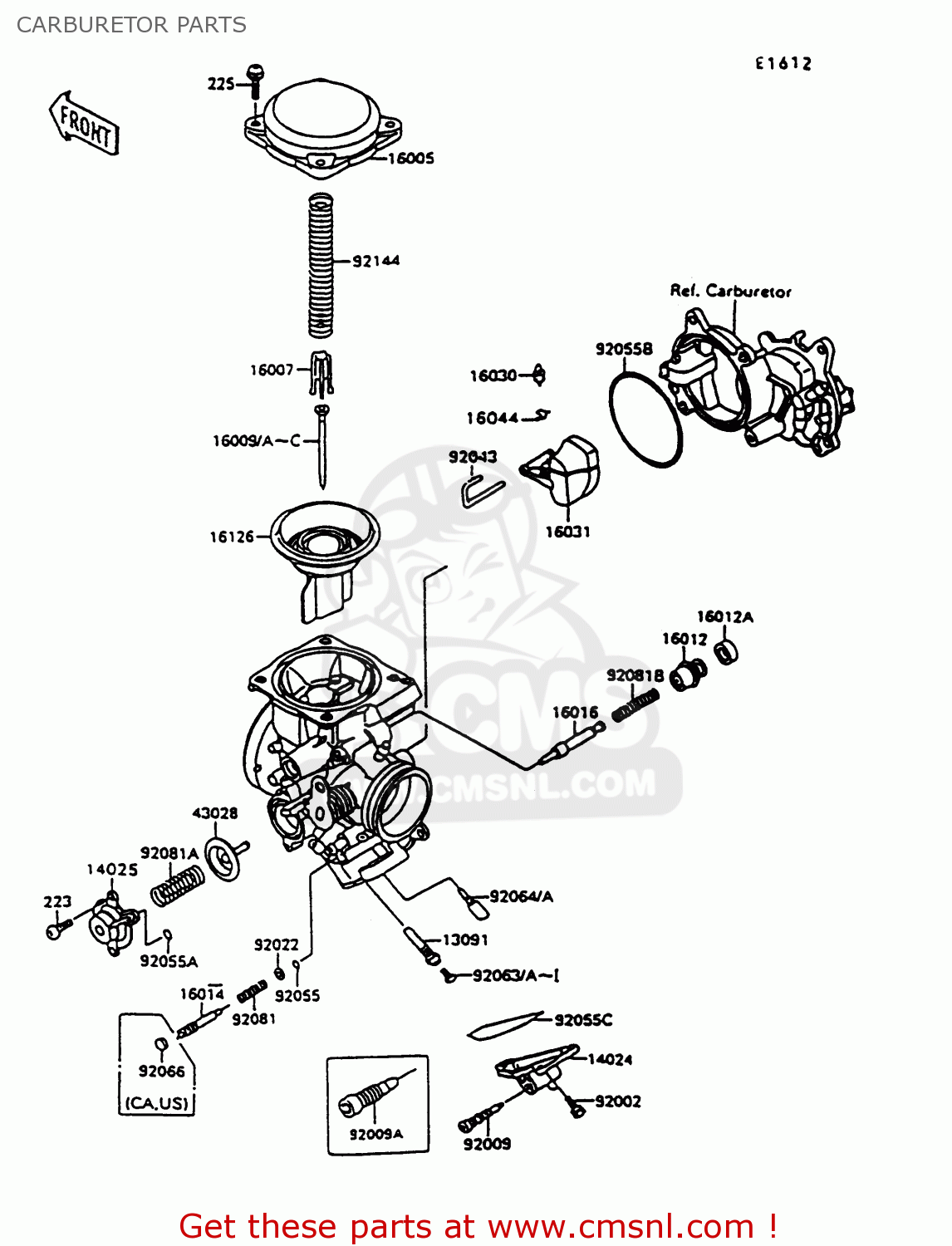

CARBURETOR PARTS

ref

part #

description

quantity

13091

130911513
ref: 13091

HOLDER,NEEDLE JET

€ 16.50

14024

140241608
ref: 14024

COVER,DRAIN

€ 78.50

14025

140251903
ref: 14025

COVER,AIR CUT VALVE

€ 43.00

16005

160051054
ref: 16005

TOP-CHAMBER,MIXING

€ 30.50

16007

160071117
ref: 16007

SEAT-SPRING,THROTTLE

€ 16.50

16009

160091361
ref: 16009
US

NEEDLE-JET,RR,N53T

€ 22.50

16009A

160091362
ref: 16009A
US

NEEDLE-JET,FR,N53S

€ 20.00

16009B

160091363
ref: 16009B
CA

JET,NEEDLE,#N53V,REAR

€ 20.50

16009C

160091364
ref: 16009C
CA

JET,NEEDLE,#N53U,FRONT

€ 19.50

16012

160121051
ref: 16012

CAP-STARTER PLUNGER

€ 7.00

16012A

160121052
ref: 16012A

CAP-STARTER PLUNGER

€ 10.00

16014

160141054
ref: 16014

SCREW-PILOT AIR

€ 15.50

16016

160161071
ref: 16016

PLUNGER

€ 35.00

16030

160301007
ref: 16030

FLOAT VALVE ASSY

€ 37.00

16031

160311066
ref: 16031

FLOAT

€ 37.50

16044

16044007
ref: 16044

CLIP, FLOAT VALVE

€ 4.00

16126

161261203
ref: 16126

VALVE,VACUUM

€ 219.00

43028

430281053
ref: 43028

DIAPHRAGM,5.9MM,AIR C

€ 62.50

92002

920021761
ref: 92002

BOLT

€ 3.50

92009

920091434
ref: 92009

SCREW

€ 10.00

92009A

920091551
ref: 92009A

SCREW,DRAIN

€ 6.50

92022

920221003
ref: 92022

WASHER,PLAIN

€ 2.50

92043

920431285
ref: 92043

PIN,FLOAT

€ 12.00

92055

920551002
ref: 92055

O RING,PILOT ADJUST

€ 2.50

92055A

920551245
ref: 92055A

RING-O

€ 3.50

92055B

920551291
ref: 92055B

RING-O

€ 14.50

92055C

920551400
ref: 92055C

RING-O,DRAIN COVER

€ 16.00

92063

920631071
ref: 92063
CA

JET-MAIN,#118

€ 9.50

92063A

920631071
ref: 92063A
US

JET-MAIN,#118

€ 9.50

92063B

920631072
ref: 92063B

MAIN JET 2ND #120

€ 9.50

92063C

920631073
ref: 92063C
CA

MAIN JET,2ND #122

€ 9.50

223

223D0408
ref: 223

SCREW-PAN-WS-CROS

€ 1.00

225

225C0418
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

92063D

920631114
ref: 92063D
US

JET-MAIN,#110

€ 9.50

92063E

920631116
ref: 92063E
US

JET-MAIN,#108

€ 9.50

92063F

920631117
ref: 92063F
US

JET-MAIN,#112

€ 9.50

92063G

920631117
ref: 92063G
CA

JET-MAIN,#112

€ 9.50

92063H

920631118
ref: 92063H
US

JET-MAIN,#115

€ 9.50

92063I

920631118
ref: 92063I
CA

JET-MAIN,#115

€ 9.50

92064

920641135
ref: 92064

JET-PILOT,#42

€ 14.00

92064A

920641136
ref: 92064A

JET-PILOT,#40

€ 13.00

92066

920661051
ref: 92066

PLUG,PILOT AIR SCREW,

€ 3.00

92081

920811002
ref: 92081

SPRING,PIROT ADJ SCRW

€ 3.50

92081A

920811719
ref: 92081A

SPRING,AIR CUT VALVE

€ 8.50

92081B

920811761
ref: 92081B

SPRING,STARTER PLUNGE

€ 6.00

92144

921441219
ref: 92144

SPRING,VACUUM VALVE

€ 12.50
