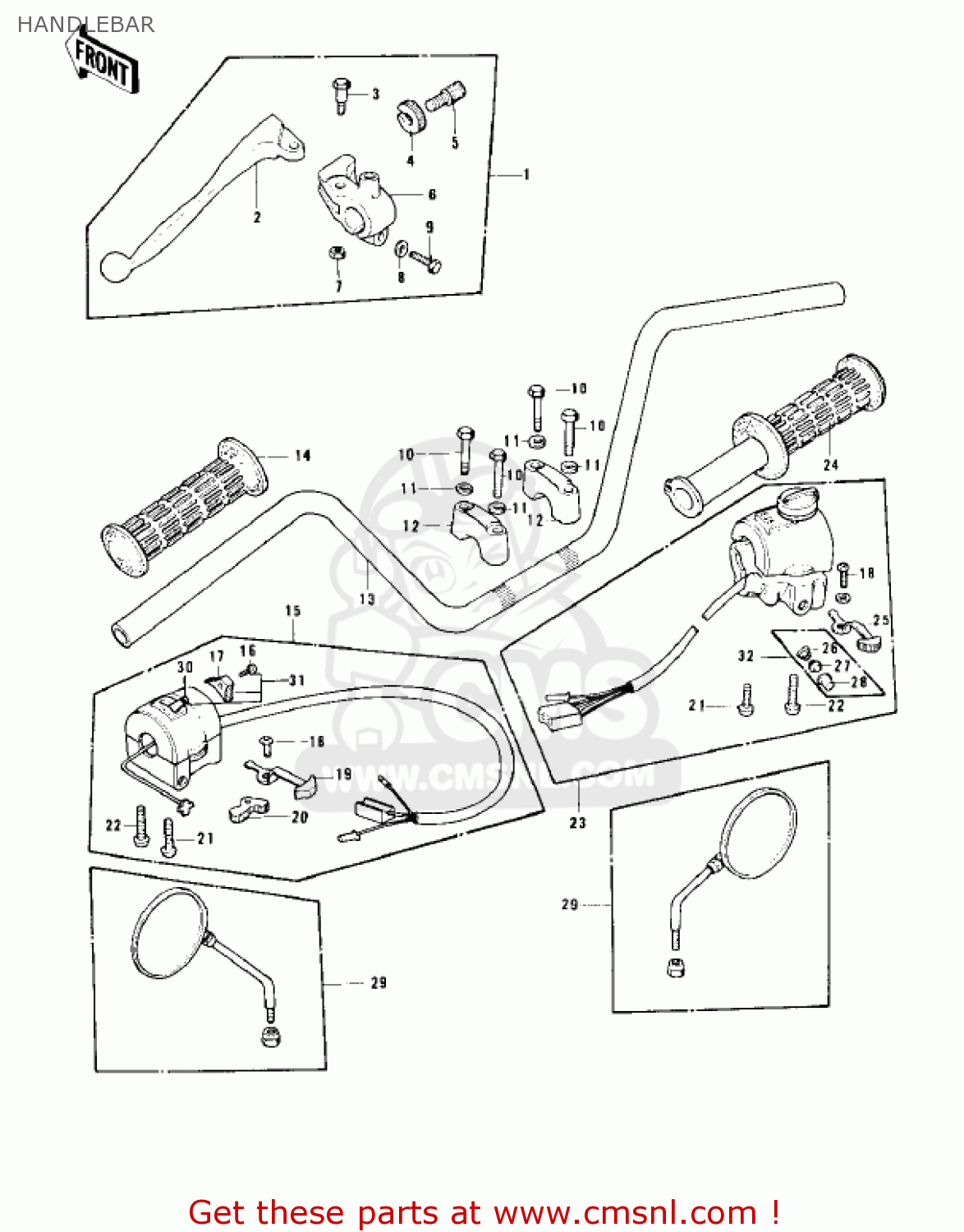

HANDLEBAR

ref

part #

description

quantity

1

46076049
ref: 1

LEVER ASSY,CLUTCH

€ 101.00

2

46092023
ref: 2

LEVER-GRIP,CLUTCH

€ 17.00

3

92007047
ref: 3

BOLT,HEX HEAD

€ 6.50

4

46056005
ref: 4

NUT-LOCK

€ 6.00

5

46055003
ref: 5

SCREW-CABLE ADJUST

€ 11.50

6

46094017
ref: 6

HOLDER,CLUTCH LEVER

€ 23.00

7

92017014
ref: 7

NUT,LOCK,6MM

€ 4.00

8

411B0600
ref: 8

WASHER-PLAIN,6MM

€ 0.50

9

112B0622
ref: 9

BOLT, 6X22

€ 2.50

10

920011405
ref: 10

BOLT,8X38

€ 10.00

11

461F0800
ref: 11

WASHER-SPRING,8MM

€ 0.50

12

46012008
ref: 12

HOLDER-HANDLE,UPP

€ 23.00

13

46003037
ref: 13

HANDLEBAR

€ 113.50

14

46075028
ref: 14

GRIP,LH

€ 32.00

15

460911079
ref: 15

HOUSING-ASSY-CONTROL,

€ 129.50

16

221B0308A
ref: 16

SCREW-CNTSNK HD,3X8

€ 2.50

17

46044013
ref: 17

KNOB,LIGHTING SWITCH,

€ 8.00

18

220B0305A
ref: 18

SCREW-PAN HEAD,3X5

€ 1.00

19

46043005
ref: 19

KNOB-LIGHTING SW L.H

€ 6.50

20

46028006
ref: 20

BUTTON,HORN PUSH

€ 6.50

21

220B0530
ref: 21

SCREW-PAN-CROS

€ 2.00

22

220B0535
ref: 22

SCREW-PAN-CROS

€ 2.00

23

460911033
ref: 23

HOUSING ASSY,R.H

€ 128.50

23

460911039
ref: 23
CANADA

CASE ASSY, R.H.

€ 101.00

24

46019038
ref: 24

GRIP-ASSY,THROTTLE

€ 80.50

25

46043004
ref: 25
US ONLY

KNOB-LIGHTING SW R.H

€ 3.00

26

270101009
ref: 26

SWITCH ASSY,HORN BUTN

€ 5.50

27

270101009
ref: 27

SWITCH ASSY,HORN BUTN

€ 5.50

28

270101009
ref: 28

SWITCH ASSY,HORN BUTN

€ 5.50

29

560015008
ref: 29

MIRROR-ASSY,LH&RH

€ 102.00

30

46089014
ref: 30

SWITCH, L.H

€ 15.00

31

99990530
ref: 31
INCLUDES REF. #16,17

DIMMER SWITCH KIT A

€ 1.00

32

270101009
ref: 32
INCLUDES REF. #26-28

SWITCH ASSY,HORN BUTN

€ 5.50

all assemblies
