Genuine KZ Kawasaki Parts delivered quickly!


CARBURETORS

KZ900B1 1976 USA CANADA/ LTD

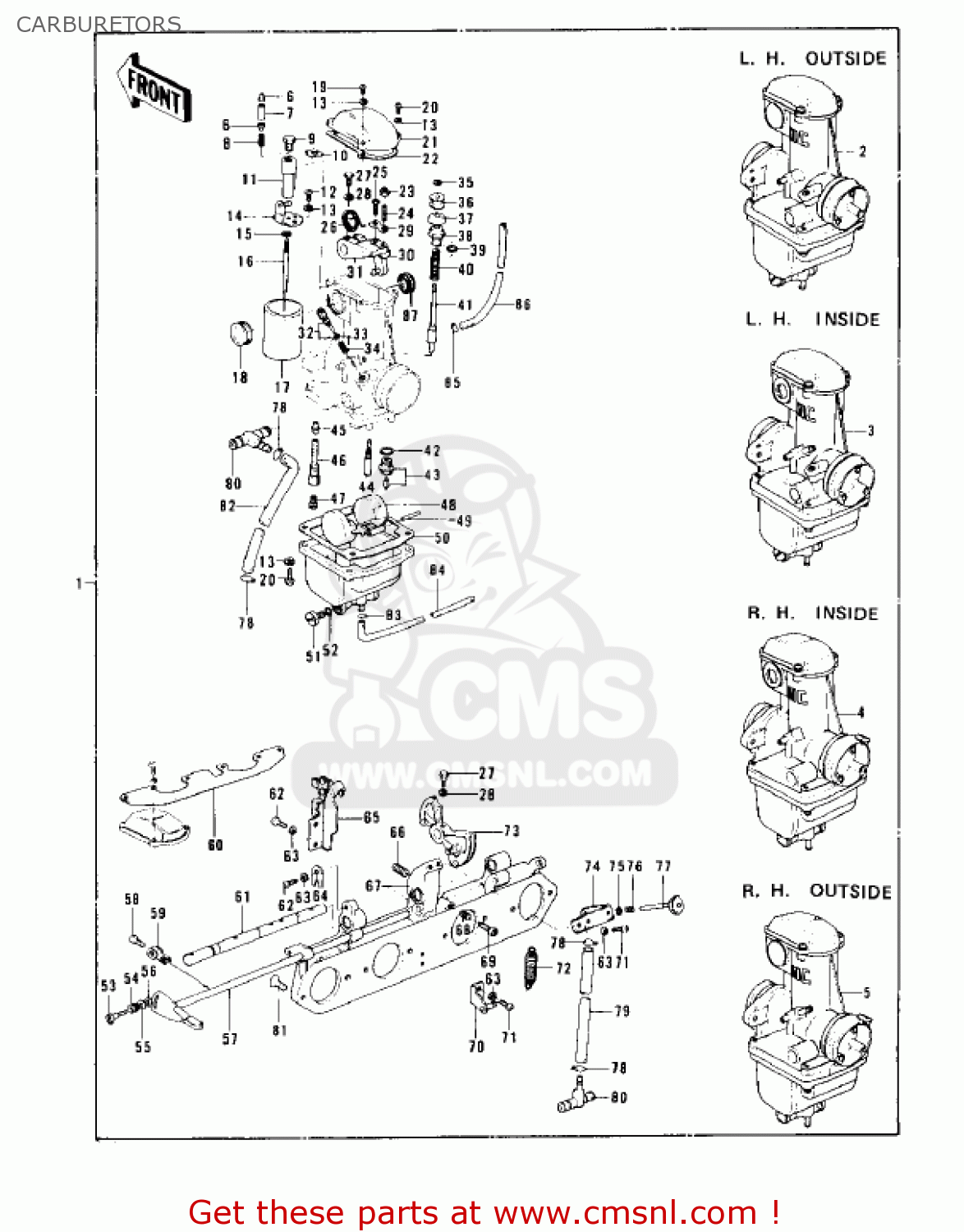

Carburetors diagram KZ900B1 1976 USA CANADA/ LTD

CARBURETORS KZ900B1 1976 USA CANADA/ LTD
CARBURETORS KZ900B1 1976 USA CANADA/ LTD
CARBURETORS KZ900B1 1976 USA CANADA/ LTD
prices are in EUR
ref
part #
description
quantity
1
16001255
ref: 1
CARBURETOR ASSY
€ 1,005.00
2
16001268
ref: 2
CARBURETOR,L.H OUTSID
€ 124.50
3
16001269
ref: 3
CARBURETOR,L.H INSIDE
€ 371.00
4
16001270
ref: 4
CARBURETOR,R.H OUTSID
€ 358.00
5
16001271
ref: 5
CARBURETOR,R.H INSIDE
€ 130.50
6
16057002
ref: 6
SEAT-SPRING
€ 6.00
7
16065017
ref: 7
HOLDER-THROTTLE SHAFT
16065017
€ 8.00
8
16040004
ref: 8
SPRING,A
16040004
€ 3.50
9
16067008
ref: 9
BOLT
€ 4.50
10
16054003
ref: 10
WASHER,LOCK
16054003
€ 2.50
11
16052003
ref: 11
SHAFT-THROTTLE VALVE
€ 11.50
12
16033027
ref: 12
SCREW,FLOAT CHAMBER
€ 3.00
13
461F0400
ref: 13
WASHER-SPRING,4MM
461F0400
€ 0.50
14
16007018
ref: 14
PLATE-THROTTLE VALVE
16007018
€ 14.00
15
16008010
ref: 15
CLAMP,E-TYPE
16008010
€ 5.00
16
16009071
ref: 16
NEEDLE-JET,5DL3
16009071
€ 29.50
17
16025075
ref: 17
VALVE,THROTTLE CA1.5
16025075
€ 71.50
18
16039042
ref: 18
CAP,RUBBER
16039042
€ 9.00
19
223B0414
ref: 19
SCREW PAN-WS-CROS
€ 2.50
20
16033009
ref: 20
SCREW-FLOAT CHAMBER
16033009
€ 0.50
21
16005027
ref: 21
TOP,MIXING CHAMBER
16005027
€ 15.50
22
16019031
ref: 22
GASKET,CHAMBER,TOP (NAS)
16019031
€ 24.50
23
16003013
ref: 23
NUT,5M/M
16003013
€ 6.00
24
16033025
ref: 24
SCREW,LEVER
16033025
€ 2.00
25
16067009
ref: 25
BOLT,4X16
€ 2.50
26
16040021
ref: 26
SPRING,LEVER
€ 3.00
27
16067006
ref: 27
BOLT-HEX HEAD,5X14
16067006
€ 10.50
28
461F0500
ref: 28
WASHER-SPRING,5MM
461F0500
€ 0.50
29
16054008
ref: 29
WASHER,PLATE
16054008
€ 3.50
30
16068013
ref: 30
LEVER,THROTTLE
16068013
€ 13.00
31
16088012
ref: 31
UNAVAILABLE IN PRICE BOOK
€ 0.00
32
160141004
ref: 32
SCREW-PILOT AIR
160141004
€ 22.00
33
16038022
ref: 33
GASKET,O-RING
16038022
€ 4.50
34
16022007
ref: 34
SPRING-THR STOP SCREW
16022007
€ 5.50
35
16076003
ref: 35
CLAMP
16076003
€ 4.50
36
16073014
ref: 36
COLLAR,STARTER PLUNGE
16073014
€ 5.50
37
16039015
ref: 37
CAP,STARTER PLUNGER
16039015
€ 4.50
38
16012015
ref: 38
CAP-STARTER PLUNGER
16012015
€ 8.50
39
670B1509
ref: 39
O RING,9MM
670B1509
€ 1.00
40
16013008
ref: 40
SPRING-STARTER PLUNG
16013008
€ 4.50
41
16016017
ref: 41
PLUNGER,STARTER
€ 7.00
42
16029004
ref: 42
WASHER-FLOAT VLV SEAT
16029004
€ 2.50
43
16030027
ref: 43
VALVE-FLOAT
16030027
€ 85.00
44
92064042
ref: 44
JET-PILOT,#17.5
92064042
€ 14.00
45
16017093
ref: 45
JET-NEEDLE,O-6
€ 28.00
46
16047004
ref: 46
HOLDER,NEEDLE JET
16047004
€ 13.50
47
92063076
ref: 47
STD
MAIN JET,#115R
92063076
€ 5.50
47
920631038
ref: 47
JET-MAIN,#A110
920631038
€ 10.50
47
92063075
ref: 47
MAIN JET,#112.5R
92063075
€ 10.00
47
92063077
ref: 47
JET-MAIN,#117.5R
92063077
€ 10.00
47
92063078
ref: 47
MAIN JET,#120R
92063078
€ 11.50
48
16031031
ref: 48
FLOAT
16031031
€ 114.50
49
16032003
ref: 49
FLOAT PIN
16032003
€ 4.00
50
110091563
ref: 50
GASKET,FLOAT CHAMBER (NAS)
110091563
€ 14.00
51
16049005
ref: 51
COVER-MAIN JET
16049005
€ 16.00
52
16038016
ref: 52
GASKET,O-RING
16038016
€ 2.50
53
16046005
ref: 53
SCREW
€ 4.50
54
16040009
ref: 54
SPRING,F
16040009
€ 6.50
55
16039020
ref: 55
WASHER,PLAIN
16039020
€ 3.50
56
16039019
ref: 56
WASHER-PLAIN
16039019
€ 3.00
57
16041016
ref: 57
SHAFT,STARTER PLUNGER
€ 69.50
58
16046007
ref: 58
SCREW,PAN HEAD,5X7
€ 6.50
59
131681026
ref: 59
LEVER,STARTER PLUNGER
131681026
€ 13.50
60
16065040
ref: 60
PLATE,CARB CONNECTION
16065040
€ 9.50
61
16041017
ref: 61
SHAFT,CARB CONNECTION
€ 47.50
62
16033016
ref: 62
SCREW-PAN HEAD,5X14
€ 3.50
63
461F0500
ref: 63
WASHER-SPRING,5MM
461F0500
€ 0.50
64
16055012
ref: 64
PLATE,SHAFT STOPPER
16055012
€ 7.00
65
16077014
ref: 65
BRACKET,CABLE PULLY
€ 35.00
66
16040022
ref: 66
SPRING,CABLE PLY BKT
16040022
€ 6.00
67
16065039
ref: 67
HOLDER,CARB MOUNTING
€ 89.00
68
16022010
ref: 68
SPRING,THROTTLE ADJST
€ 4.50
69
16021020
ref: 69
SCREW-THROTTLE STOP
16021020
€ 13.00
70
16077012
ref: 70
BRACKET,CABLE PULLY
€ 7.00
71
16033016
ref: 71
SCREW-PAN HEAD,5X14
€ 3.50
72
16040020
ref: 72
SPRING,CABLE PULLY
16040020
€ 18.50
73
16068011
ref: 73
LEVER,THROTTLE CABLE
€ 23.50
74
16077013
ref: 74
HOLDER,THROTTLE SCREW
€ 16.50
75
464H0500
ref: 75
WASHER-LOCK,5MM
464H0500
€ 0.50
76
16022009
ref: 76
SPRING-THR STOP SCREW
16022009
€ 4.50
77
16021028
ref: 77
SCREW,THROTTLE STOP
€ 20.50
78
92037072
ref: 78
CLAMP,TUBE
92037072
€ 4.00
79
92059144
ref: 79
HOSE, FUEL
92059144
€ 50.50
80
16046002
ref: 80
SCREW,FUEL PIPE
16046002
€ 31.50
81
16033029
ref: 81
SCREW,PAN HEAD,6X14
16033029
€ 3.00
82
92059085
ref: 82
PIPE-OVER FLOW
€ 8.50
83
92037173
ref: 83
CLAMP,TUBE
€ 4.50
84
92059134
ref: 84
HOSE,OVERFLOW
92059134
€ 17.50
85
92037174
ref: 85
CLAMP,BREATHER HOSE
€ 1.50
86
92059135
ref: 86
HOSE,BREATHER
€ 17.00
87
92071102
ref: 87
CARBURETOR GROMMET
€ 18.50
