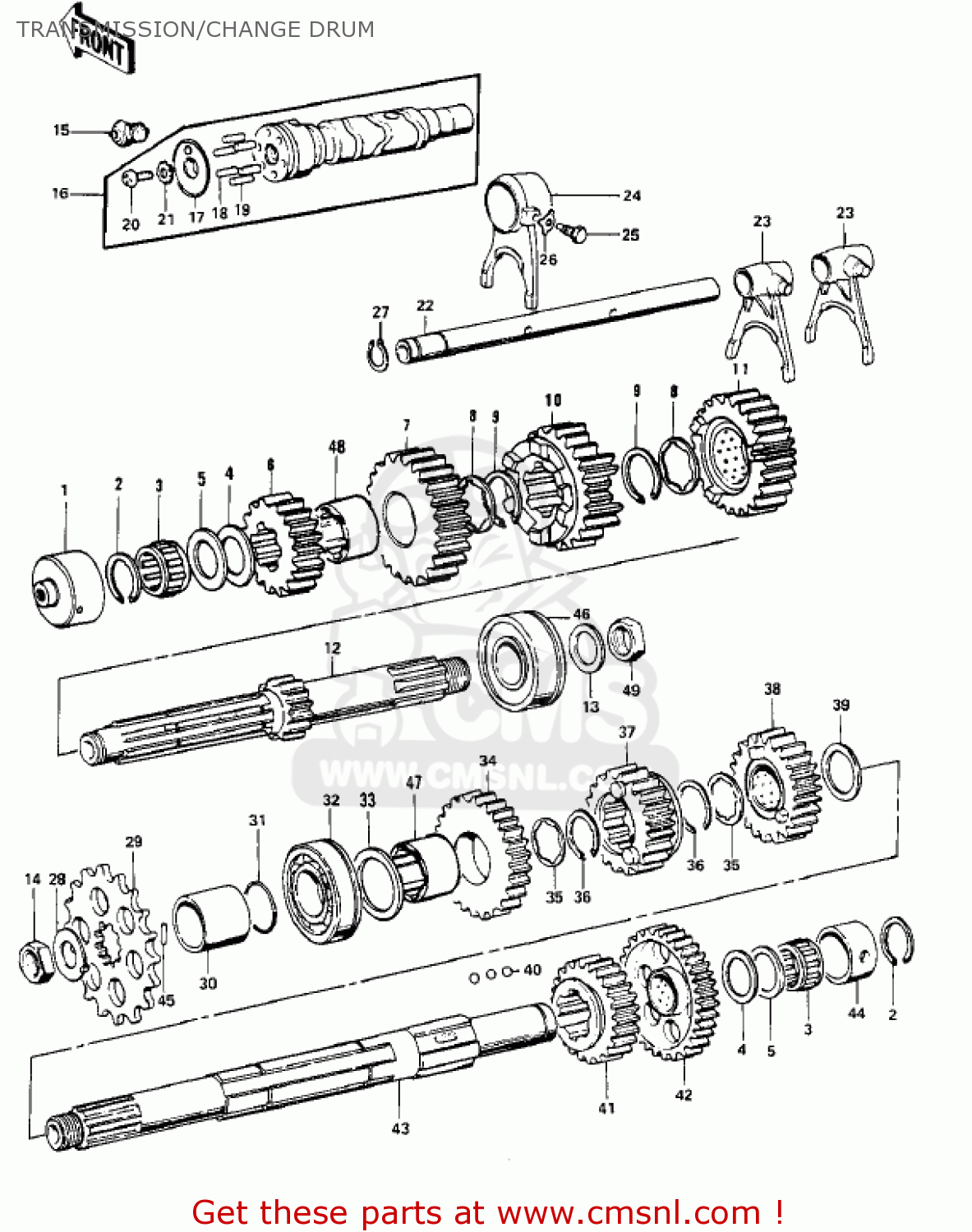

TRANSMISSION/CHANGE DRUM

ref

part #

description

quantity

1

92028122
ref: 1

BUSHING,INPUT SHAFT

€ 54.50

2

92033025
ref: 2

CIRCLIP,25MM

€ 3.00

3

92046031
ref: 3

BEARING-NEEDLE,FWF-22

€ 19.50

4

920261020
ref: 4

SPACER,22X35.5X1.0

€ 3.50

5

92022212
ref: 5

WASHER-PLAIN,22MM

€ 6.50

5

92022213
ref: 5

WASHER,22.3X35X1.2

€ 7.00

6

13130032
ref: 6

2ND GEAR-DRIVE SHAFT

€ 114.50

7

13136042
ref: 7

TOP GEAR-DRIVE SHAFT

€ 116.50

8

92024042
ref: 8

WASHER,TOOTHED,26X35.

€ 7.50

9

480J2800
ref: 9

CIRCLIP-TYPE-C,28MM

€ 3.50

10

13132030
ref: 10

3RD GEAR-DRIVE SHAFT

€ 158.50

11

13134016
ref: 11

GEAR INPUT 4TH,21T

€ 156.00

12

13127042
ref: 12

SHAFT,DRIVE 12T

€ 251.00

13

92125002
ref: 13

WASHER,SPRING,20MM

€ 8.50

14

92016043
ref: 14

NUT,20MM

€ 9.50

15

131515003
ref: 15

SWITCH-COMP

€ 20.00

16

132391010
ref: 16

DRUM ASSY,GEAR CHANGE

€ 388.50

17

13142013
ref: 17

PLATE-GEAR CHNG DRUM

€ 18.50

18

92042020
ref: 18

PIN-GEAR CHANGE DRUM

€ 3.00

19

92042014
ref: 19

PIN-GEAR CHANGE DRUM

€ 0.50

20

220B0612
ref: 20

SCREW-PAN HEAD,6X12

€ 1.00

21

464G0600
ref: 21

WASHER-TOOTHED,6MM

€ 2.50

22

13209011
ref: 22

ROD-SHIFT

€ 17.00

23

13140045
ref: 23

FORK-SHIFT,4TH&TOP

€ 190.00

24

13140046
ref: 24

FORK-SHIFT,3RD

€ 124.50

25

92043016
ref: 25

PIN,SELECT FORK GUIDE

€ 12.50

26

92031001
ref: 26

WASHER,LOCK,10MM

€ 7.00

27

480J1200
ref: 27

CIRCLIP-TYPE-C,12MM

€ 0.50

28

92024044
ref: 28

WASHER,CLAW,20.5X36X1

€ 8.00

29

13144062
ref: 29

SPROCKET-OUTPUT,15T

€ 33.00

30

92027288
ref: 30

COLLAR,25X32X23.5

€ 22.50

31

92055035
ref: 31

O RING

€ 3.00

32

92045021
ref: 32

BEARING-BALL,BL305NC3

€ 184.00

33

92022210
ref: 33

WASHER-PLAIN,25MM

€ 4.50

34

13131038
ref: 34

GEAR,OUTPUT 2ND,35T

€ 146.50

35

92024043
ref: 35

WASHER,TOOTHED,30.3X4

€ 8.00

36

480J3000
ref: 36

CIRCLIP-TYPE-C,30MM

€ 3.50

37

131291214
ref: 37

GEAR,OUTPUT TOP,28T

€ 317.50

38

13133031
ref: 38

GEAR,OUTPUT 3RD,35T

€ 169.50

39

92022209
ref: 39

WASHER-PLAIN,30MM

€ 6.50

40

600A0600
ref: 40

BALL-STEEL,3/16

€ 0.50

41

13135020
ref: 41

4TH GEAR-OUTPUT SHAFT

€ 102.50

42

13129046
ref: 42

LOW GEAR-OUTPUT SHAFT

€ 133.00

43

131285006
ref: 43

SHAFT,OUTPUT

€ 165.50

44

92028123
ref: 44

BUSHING,OUTPUT SHAFT

€ 36.50

45

92043109
ref: 45

PIN,DOWEL,2.0X19.8

€ 2.00

46

920451028
ref: 46

BEARING-BALL,5305NSH2

€ 135.00

47

920281005
ref: 47

BUSHING, ZND GEAR

€ 22.50

48

920281124
ref: 48

BUSHING,TOP GEAR

€ 31.00

49

920151555
ref: 49

NUT,20MM

€ 9.00
